Model
Electrolux E44NB60ESS
Outdoor Leisure, Gas Grill
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E44NB60ESSOutdoor Leisure, Gas Grill
1 diagram50 parts
Parts Sections (1)

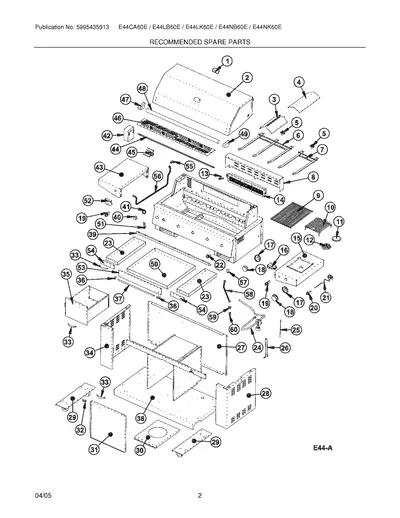

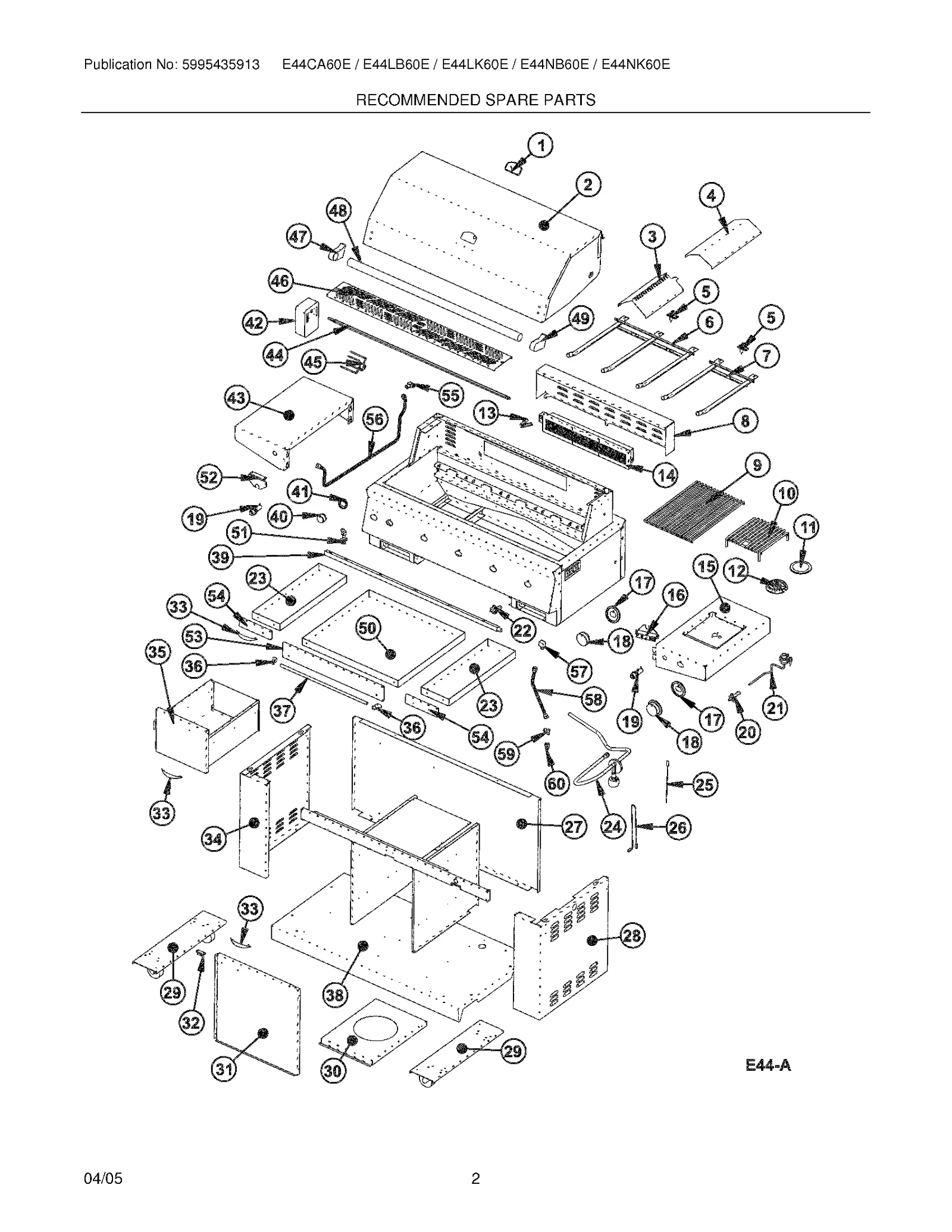

Diagram
RECOMMENDED SPARE PARTS
Parts in RECOMMENDED SPARE PARTS
50 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Guage,temperature | - |
| 2 | – | 5304444521 Hood,grill | - |
| 3 |  | Flavor Grid,igniter cover ,bottom ,angle | - |
| 4 |  | Flavor Grid,burner cover ,top ,angle | - |
| 5 |  | Electrode,main burner | $105.95 ApplianceParts Pro |
| 6 |  | 5304444460NLA Burner,main ,3 cell | Discontinued |
| 7 |  | Burner,main ,2 cell | - |
| 8 | – | 5304444523 Cover,infrared burner | - |
| 9 | | 5304444524NLA Grate,main burner | Discontinued |
| 13 |  | Electrode,infrared burner ,back | - |
| 14 | – | 5304444395 Burner,IR ,back | - |
| 17 | – | 5304444406 Bezel,knob | - |
| 18 |  | Knob,burner | - |
| 22 | | Valve,burner ,main/side ,NG | - |
| 23 | – | 5304444532 Tray,drip pan | - |
| 24 | | 5304444424NLA Regulator,NG | Discontinued |
| 33 | | Handle,drawer/drip pan | - |
| 36 | – | 5304444543 Handle End,warming tray | - |
| 37 | – | 5304444544 Handle,warming tray | - |
| 39 | | Manifold | - |
| 40 | – | 5304444547 Knob,infrared burner | - |
| 41 | – | 5304444429 Bezel,infrared knob | - |
| 42 | | Motor,rotisserie | - |
| 44 | – | 5304444550 Spit,rotisserie | - |
| 45 | | Fork,rotisserie | - |
| 46 | – | 5304444552 Shelf,warming rack | - |
| 47 | – | 5304444388 Handle End,hood ,left | - |
| 48 | – | 5304444553 Handle,hood ,40 inch | - |
| 49 | – | 5304444390 Handle End,hood ,right | - |
| 50 | – | 5304444554 Drawer,warming | - |
| 51 | | Valve,IR burner ,back ,NG | - |
| 52 | | 5304464769replaces 5304444555 Igniter,4-pole ,no ground ,with bracket | - |
| 53 | – | 5304444556 Panel,warming drawer ,front | - |
| 54 | – | 5304444557 Panel,drip pan ,front | - |
| 55 | – | 5304447619 Elbow,NG ,IR burner rear ,with orifice | - |
| 56 | – | 5304447646 Hose,gas ,infrared burner ,rear | - |
| 57 | – | 5304447621 Elbow,gas fitting ,manifold/hose | - |
| 58 | | Hose,gas ,10`` ,main supply | - |
| 59 | | Elbow,main connection | - |
| 60 | | Fitting,main connection | - |
| NI | – | 5304444534 Tubing,NG ,side burner | - |
| NI | | 5304444694replaces 5304444559 Wire,igniter ,infrared burner | - |
| NI | | 5304444451replaces 5304444560 Wire,igniter ,main burner ,center | - |
| NI | | 5304444451replaces 5304444561 Wire,igniter ,main burner ,left & right | - |
| NI | | 5304444451replaces 5304444562 Wire,igniter ,main burner ,right | - |
| NI | – | 5304444441 Bolt,valve/manifold | - |
| NI | – | 5304444445 Screw,bezel to valve | - |
| NI | – | 5304444446 Screw,hood handle end | - |
| NI | | Screw,self-tapping | - |
| NI | – | 5304444558 Screw,handle end ,door/drawer/pan | - |
