Model
Electrolux E44NK60ESS
Outdoor Leisure, Gas Grill
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E44NK60ESSOutdoor Leisure, Gas Grill
1 diagram74 parts
Parts Sections (1)
Diagram

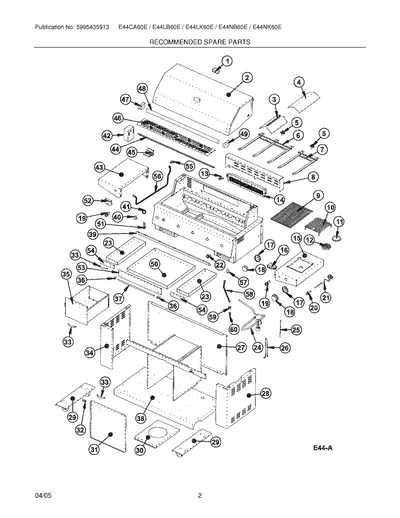

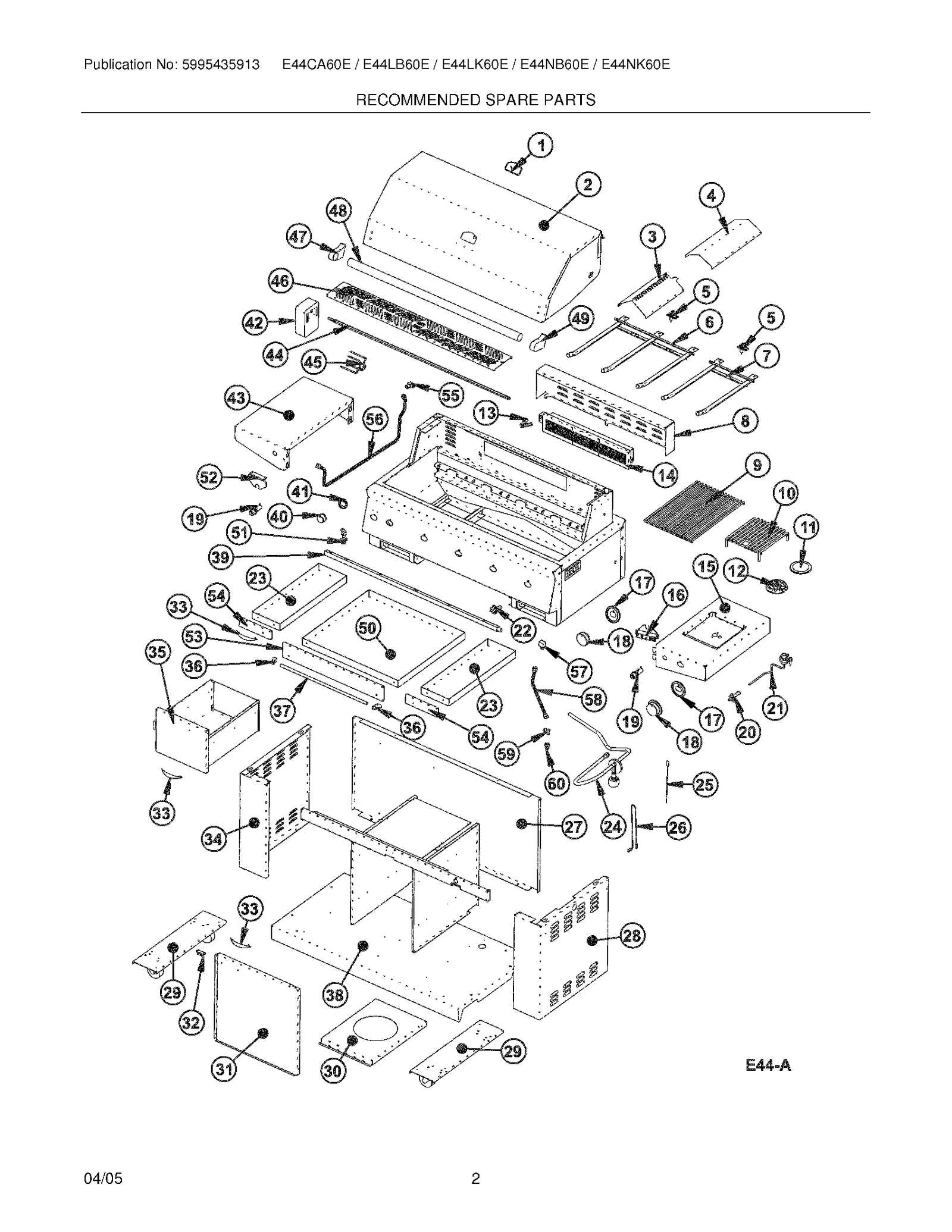

RECOMMENDED SPARE PARTS
Parts in RECOMMENDED SPARE PARTS
74 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Guage,temperature | - |
| 2 | – | 5304444521 Hood,grill | - |
| 3 |  | Flavor Grid,igniter cover ,bottom ,angle | - |
| 4 |  | Flavor Grid,burner cover ,top ,angle | - |
| 5 |  | Electrode,main burner | $105.95 ApplianceParts Pro |
| 6 |  | 5304444460NLA Burner,main ,3 cell | Discontinued |
| 7 |  | Burner,main ,2 cell | - |
| 8 | – | 5304444523 Cover,infrared burner | - |
| 9 | | 5304444524NLA Grate,main burner | Discontinued |
| 10 | | Grate,side burner | - |
| 11 | – | 5304444525 Cap,burner ,side | - |
| 12 | | 5304444526NLA Head,burner ,side | Discontinued |
| 13 |  | Electrode,infrared burner ,back | - |
| 14 | – | 5304444395 Burner,IR ,back | - |
| 15 | | Shelf,burner ,side | - |
| 16 | | 5304464768replaces 5304444528 Igniter,2-pole ,ground ,with bracket | - |
| 17 | – | 5304444406 Bezel,knob | - |
| 18 |  | Knob,burner | - |
| 19 | | Housing,igniter battery | - |
| 20 | | Valve,burner ,side ,NG | - |
| 21 | – | 5304444531 Base,orifice ,side burner ,NG | - |
| 22 | | Valve,burner ,main/side ,NG | - |
| 23 | – | 5304444532 Tray,drip pan | - |
| 24 | | 5304444424NLA Regulator,NG | Discontinued |
| 25 |  | Wire,igniter ,positive | - |
| 26 |  | Wire,igniter ,negative | - |
| 27 | | Panel,cart ,back | - |
| 28 | – | 5304444536 Panel,cart ,right side | - |
| 29 | – | 5304444537 Channel,wheel ,swivel | - |
| 30 | – | 5304444538 Tray,gas tank | - |
| 31 | | Door,cart | - |
| 32 | | 5304444391NLA Magnet,door | Discontinued |
| 33 | | Handle,drawer/drip pan | - |
| 34 | – | 5304444541 Panel,cart ,left side | - |
| 35 | – | 5304444542 Drawer,cart ,storage | - |
| 36 | – | 5304444543 Handle End,warming tray | - |
| 37 | – | 5304444544 Handle,warming tray | - |
| 38 | – | 5304444545 Base,cart | - |
| 39 | | Manifold | - |
| 40 | – | 5304444547 Knob,infrared burner | - |
| 41 | – | 5304444429 Bezel,infrared knob | - |
| 42 | | Motor,rotisserie | - |
| 43 | | Shelf,left side | - |
| 44 | – | 5304444550 Spit,rotisserie | - |
| 45 | | Fork,rotisserie | - |
| 46 | – | 5304444552 Shelf,warming rack | - |
| 47 | – | 5304444388 Handle End,hood ,left | - |
| 48 | – | 5304444553 Handle,hood ,40 inch | - |
| 49 | – | 5304444390 Handle End,hood ,right | - |
| 50 | – | 5304444554 Drawer,warming | - |
| 51 | | Valve,IR burner ,back ,NG | - |
| 52 | | 5304464769replaces 5304444555 Igniter,4-pole ,no ground ,with bracket | - |
| 53 | – | 5304444556 Panel,warming drawer ,front | - |
| 54 | – | 5304444557 Panel,drip pan ,front | - |
| 55 | – | 5304447619 Elbow,NG ,IR burner rear ,with orifice | - |
| 56 | – | 5304447646 Hose,gas ,infrared burner ,rear | - |
| 57 | – | 5304447621 Elbow,gas fitting ,manifold/hose | - |
| 58 | | Hose,gas ,10`` ,main supply | - |
| 59 | | Elbow,main connection | - |
| 60 | | Fitting,main connection | - |
| NI | | 5304444451replaces 5304444560 Wire,igniter ,main burner ,center | - |
| NI | – | 5304444441 Bolt,valve/manifold | - |
| NI | – | 5304444445 Screw,bezel to valve | - |
| NI | – | 5304444534 Tubing,NG ,side burner | - |
| NI | | 5304444451replaces 5304444562 Wire,igniter ,main burner ,right | - |
| NI | – | 5304444443 Nut,door ,bottom pivot | - |
| NI | | Screw,self-tapping | - |
| NI | | 5304444451replaces 5304444561 Wire,igniter ,main burner ,left & right | - |
| NI | – | 5304444442 Bolt,wheel & cart | - |
| NI | – | 5304444446 Screw,hood handle end | - |
| NI | | 5304444694replaces 5304444559 Wire,igniter ,infrared burner | - |
| NI | | 5304444695replaces 5304444563 Wire,igniter ,side burner | - |
| NI | – | 5304444444 Screw,door ,bottom pivot | - |
| NI | – | 5304444558 Screw,handle end ,door/drawer/pan | - |
