ModelElectrolux
E51CA60ESSOutdoor Leisure, Gas Grill
1 diagram33 parts
Parts Sections (1)
Diagram

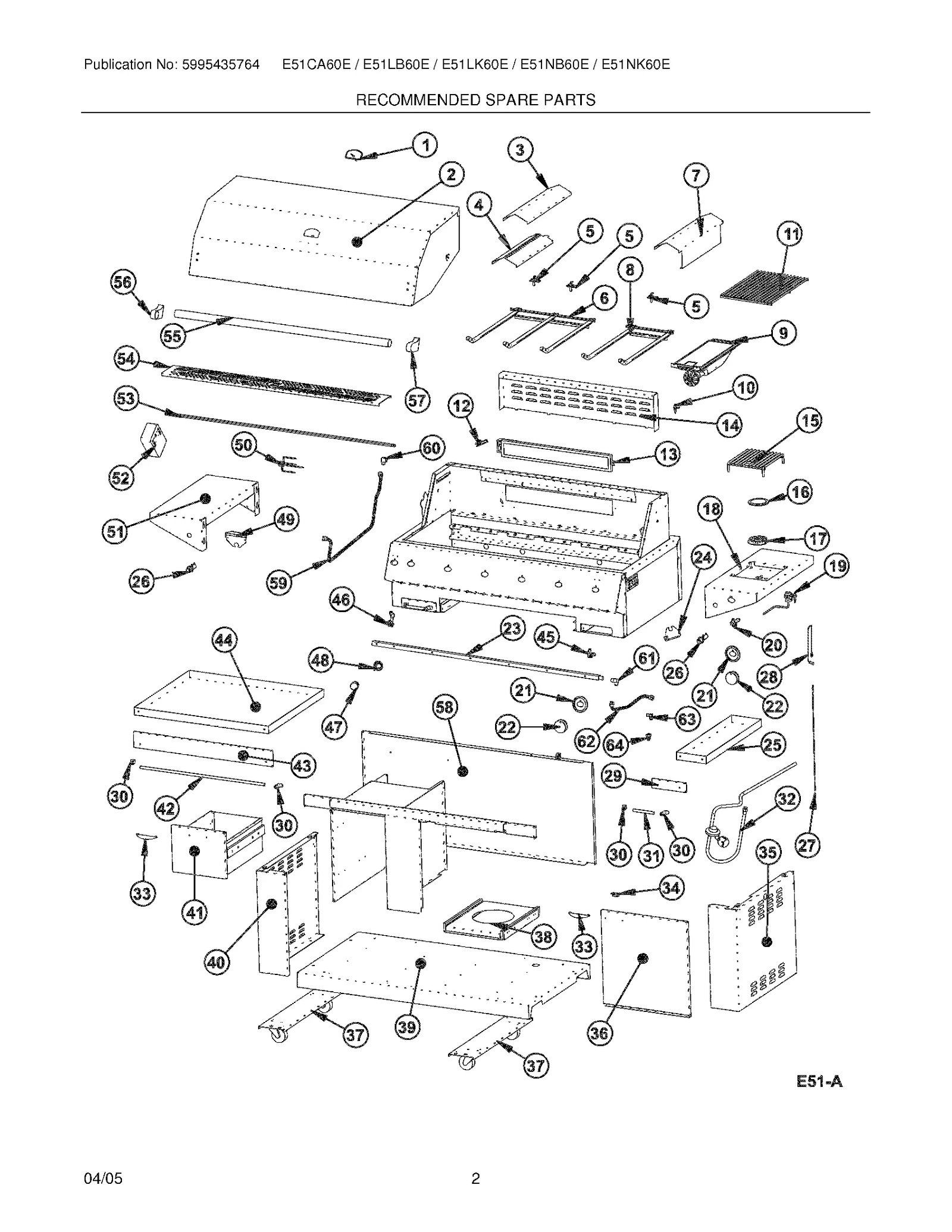

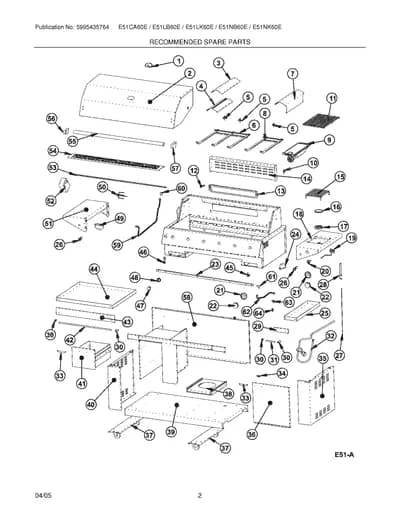

RECOMMENDED SPARE PARTS
Parts in RECOMMENDED SPARE PARTS
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 15 |  | Grate,side burner | - |
| 16 | – | 5304444525 Cap,burner ,side | - |
| 17 | | 5304444526NLA Head,burner ,side | Discontinued |
| 18 | – | 5304444640 Shelf,burner ,side | - |
| 19 | | 5304444530NLA Base,orifice ,side burner ,LP | Discontinued |
| 19 | – | 5304444531 Base,orifice ,side burner ,NG | - |
| 20 | | Valve,burner ,side ,LP | - |
| 20 | | Valve,burner ,side ,NG | - |
| 21 | – | 5304444406 Bezel,knob | - |
| 22 |  | Knob,burner | - |
| 24 | | Igniter,2-pole ,no ground ,with bracket | Discontinued |
| 26 | | Housing,igniter battery | - |
| 27 |  | Wire,igniter ,positive | - |
| 28 |  | Wire,igniter ,negative | - |
| 33 | | Handle,drawer/drip pan | - |
| 34 | | 5304444391NLA Magnet,door | Discontinued |
| 35 | – | 5304444646 Panel,cart ,right side | - |
| 36 | – | 5304444647 Door,cart | - |
| 37 | – | 5304444648 Channel,wheel ,swivel | - |
| 38 | – | 5304444538 Tray,gas tank | - |
| 39 | – | 5304444649 Base,cart | - |
| 40 | – | 5304444650 Panel,cart ,left side | - |
| 41 | – | 5304444542 Drawer,cart ,storage | - |
| 51 | – | 5304444653 Shelf,side | - |
| 58 | – | 5304444657 Panel,cart ,back | - |
| NI | – | 5304444534 Tubing,NG ,side burner | - |
| NI | | 5304444695replaces 5304444663 Wire,igniter ,side burner | - |
| NI | – | 5304444442 Bolt,wheel & cart | - |
| NI | – | 5304444443 Nut,door ,bottom pivot | - |
| NI | – | 5304444444 Screw,door ,bottom pivot | - |
| NI | – | 5304444445 Screw,bezel to valve | - |
| NI | | Screw,self-tapping | - |
| NI | – | 5304444558 Screw,handle end ,door/drawer/pan | - |
