Model
Electrolux E51LK60ESS
Outdoor Leisure, Gas Grill
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E51LK60ESSOutdoor Leisure, Gas Grill
1 diagram78 parts
Parts Sections (1)
Diagram

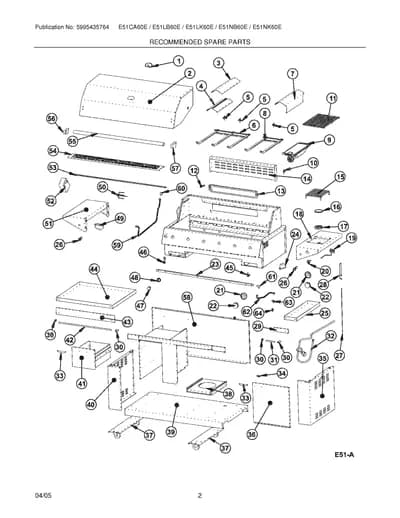

RECOMMENDED SPARE PARTS
Parts in RECOMMENDED SPARE PARTS
78 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Guage,temperature | - |
| 2 | – | 5304444629 Hood,grill | - |
| 3 | – | 5304444630 Flavor Grid,burner cover ,top ,angle | - |
| 4 | | 5304444631NLA Flavor Grid,burner cover ,bottom ,angle | Discontinued |
| 5 |  | Electrode,main burner | $105.95 ApplianceParts Pro |
| 6 | | 5304444632NLA Burner,main ,3 cell | Discontinued |
| 7 | | Flavor Grid,burner cover ,top-right side,angle | - |
| 8 | | Burner,main ,2 cell | $126.66 RepairClinic |
| 9 | | Burner,infrared ,bottom | - |
| 10 |  | Electrode,infrared burner ,bottom | - |
| 11 | | Grate,burner ,main | - |
| 12 |  | Electrode,infrared burner ,back | - |
| 13 | – | 5304444638 Burner,infrared ,back | - |
| 14 | | Cover,infrared burner | - |
| 15 | | Grate,side burner | - |
| 16 | – | 5304444525 Cap,burner ,side | - |
| 17 | | 5304444526NLA Head,burner ,side | Discontinued |
| 18 | – | 5304444640 Shelf,burner ,side | - |
| 19 | | 5304444530NLA Base,orifice ,side burner ,LP | Discontinued |
| 20 | | Valve,burner ,side ,LP | - |
| 21 | – | 5304444406 Bezel,knob | - |
| 22 |  | Knob,burner | - |
| 23 | – | 5304444641 Manifold | - |
| 24 | | Igniter,2-pole ,no ground ,with bracket | Discontinued |
| 25 | – | 5304444643 Tray,drip pan | - |
| 26 | | Housing,igniter battery | - |
| 27 |  | Wire,igniter ,positive | - |
| 28 |  | Wire,igniter ,negative | - |
| 29 | – | 5304444644 Panel,drip pan ,front | - |
| 30 | – | 5304444543 Handle End,warming tray | - |
| 31 | – | 5304444645 Handle,drip pan | - |
| 32 | | Regulator,LP gas ,dual hose | - |
| 33 | | Handle,drawer/drip pan | - |
| 34 | | 5304444391NLA Magnet,door | Discontinued |
| 35 | – | 5304444646 Panel,cart ,right side | - |
| 36 | – | 5304444647 Door,cart | - |
| 37 | – | 5304444648 Channel,wheel ,swivel | - |
| 38 | – | 5304444538 Tray,gas tank | - |
| 39 | – | 5304444649 Base,cart | - |
| 40 | – | 5304444650 Panel,cart ,left side | - |
| 41 | – | 5304444542 Drawer,cart ,storage | - |
| 42 | – | 5304444651 Handle,warming tray | - |
| 43 | – | 5304444556 Panel,warming drawer ,front | - |
| 44 | – | 5304444652 Drawer,warming | - |
| 45 | | Valve,burner ,main/side ,LP | - |
| 46 | | Valve,IR burner ,back ,LP | - |
| 47 | – | 5304444547 Knob,infrared burner | - |
| 48 | – | 5304444429 Bezel,infrared knob | - |
| 49 | | 5304464769replaces 5304444555 Igniter,4-pole ,no ground ,with bracket | - |
| 50 | | Fork,rotisserie | - |
| 51 | – | 5304444653 Shelf,side | - |
| 52 | | Motor,rotisserie | - |
| 53 | | Spit,rotisserie | - |
| 54 | – | 5304444655 Shelf,warming rack | - |
| 55 | – | 5304444656 Handle,hood ,47 inch | - |
| 56 | – | 5304444388 Handle End,hood ,left | - |
| 57 | – | 5304444390 Handle End,hood ,right | - |
| 58 | – | 5304444657 Panel,cart ,back | - |
| 59 | – | 5304447625 Elbow,LP fitting ,infrared burner ,rear | - |
| 60 | – | 5304447620 Hose,gas ,infrared burner ,rear | - |
| 61 | – | 5304447621 Elbow,gas fitting ,manifold/hose | - |
| 62 | | 5304446174replaces 5304447622 Hose,gas ,10`` ,main supply | - |
| 63 | | Elbow,main connection | - |
| 64 | | Fitting,main connection | - |
| NI | | Wire,igniter ,bottom ,infrared | - |
| NI | | 5304444451replaces 5304444659 Wire,igniter ,main burner ,center | - |
| NI | | 5304444451replaces 5304444660 Wire,igniter ,main burner ,left | - |
| NI | | 5304444694replaces 5304444661 Wire,igniter ,infrared burner | - |
| NI | | 5304444451replaces 5304444662 Wire,igniter ,main burner | - |
| NI | | 5304444695replaces 5304444663 Wire,igniter ,side burner | - |
| NI | – | 5304444441 Bolt,valve/manifold | - |
| NI | – | 5304444442 Bolt,wheel & cart | - |
| NI | – | 5304444443 Nut,door ,bottom pivot | - |
| NI | – | 5304444444 Screw,door ,bottom pivot | - |
| NI | – | 5304444445 Screw,bezel to valve | - |
| NI | – | 5304444446 Screw,hood handle end | - |
| NI | | Screw,self-tapping | - |
| NI | – | 5304444558 Screw,handle end ,door/drawer/pan | - |
