Model
Electrolux E57CO60ESS
Outdoor Leisure, Gas Grill
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
E57CO60ESSOutdoor Leisure, Gas Grill
1 diagram23 parts
Parts Sections (1)

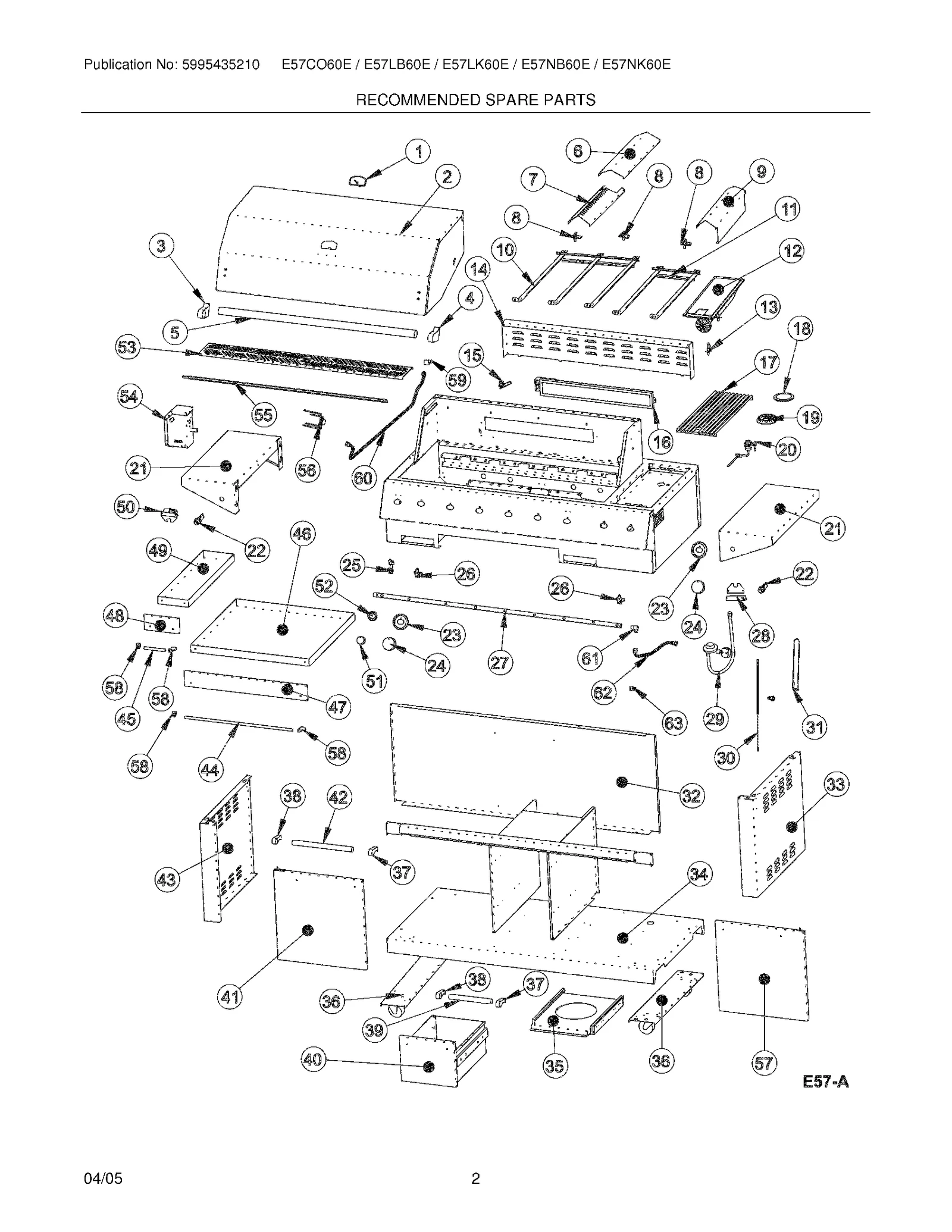

Diagram
RECOMMENDED SPARE PARTS
Parts in RECOMMENDED SPARE PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 21 | – | 5304444653 Shelf,side | - |
| 22 |  | Housing,igniter battery | - |
| 28 | | 5304464769replaces 5304444674 Igniter,4-pole ,no ground ,with bracket | - |
| 30 |  | Wire,igniter ,positive | - |
| 31 |  | Wire,igniter ,negative | - |
| 32 | – | 5304444676 Panel,cart ,back | - |
| 33 | – | 5304444677 Panel,cart ,right side | - |
| 34 | – | 5304444678 Base,cart | - |
| 35 | – | 5304444538 Tray,gas tank | - |
| 36 | – | 5304444648 Channel,wheel ,swivel | - |
| 37 | – | 5304444426 Handle End,door ,right | - |
| 38 | – | 5304444425 Handle End,door ,left | - |
| 39 | – | 5304444679 Handle,drawer | - |
| 40 | – | 5304444680 Drawer,cart ,storage | - |
| 41 | – | 5304444681 Door,cart ,left | - |
| 42 | – | 5304444682 Handle,cart door | - |
| 43 | – | 5304444683 Panel,cart ,left side | - |
| 50 | | 5304464769replaces 5304444555 Igniter,4-pole ,no ground ,with bracket | - |
| 57 | – | 5304444691 Door,cart ,right | - |
| NI | – | 5304444443 Nut,door ,bottom pivot | - |
| NI | | Screw,self-tapping | - |
| NI | – | 5304444444 Screw,door ,bottom pivot | - |
| NI | – | 5304444442 Bolt,wheel & cart | - |
