ModelElectrolux
EFLS627UTT2Washer
3 diagrams137 parts
Parts Sections (3)
Diagram

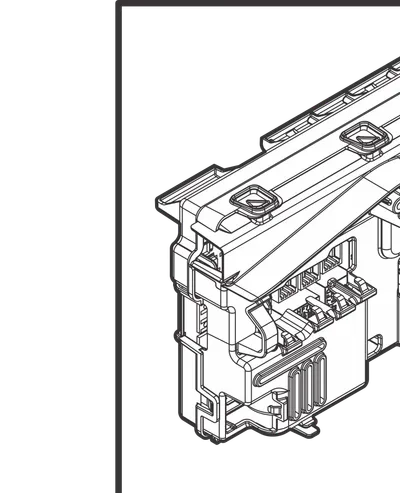

CONTROL PANEL
Parts in CONTROL PANEL
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Board Assy,UI programmed ,satellite ,w/housing-scr | $164.12 Part Advantage |
| 2 |  | Bracket,control panel | - |
| 3 |  | Knob Assembly,complete ,w/boards | $151.81 Parts Dr |
| 13 |  | Diffuser,light | - |
| 17 |  | Sensor Switch,pressure | $33.21 Part Advantage |
| 18 |  | Screw,quadrex ph ,10-16AB x 0.5 | $7.83 Part Advantage |
| 19 |  | Screw,pph b ,6-20X.375 | $4.63 ApplianceParts Pro |
| 20 |  | Main Board,assembly (high) ,washer ,w/housing | $190.64 Parts Dr |
| 23 |  | Harness,wiring main,w/drum light | $137.45 PartSelect |
| 27 | | Console Assembly,w/overlay | $113.71 Parts Dr |
| 27A |  | Handle Assembly,drawer ,w/overlay | $84.39 Part Advantage |
| 28 |  | Screw,#8 pan head ,10-10B x 0.500 ,cr/sq drive | $8.20 Part Advantage |
| 31 | | Screw,Quad ,#8-18 x .625 | $7.47 PartSelect |
| 32 |  | Hose,disp-to-bellows | $56.19 Parts Dr |
| 33 |  | 134737300replaces 131306216 Clamp | $12.42 Parts Dr |
| 34 |  | 5304528020replaces 131964400 Cable Tie,push mount ,5.20 inch | $5.34 Part Advantage |
| 35 |  | Gasket,disp-to-valve | $20.30 Part Advantage |
| 36 |  | Valve Assembly,vortex ,w/flow meter | $107.93 Parts Dr |
| 37 |  | Hose,disp-to-tub | $42.07 Part Advantage |
| 38 |  | Clamp,tub hose | $41.84 Parts Dr |
| 39 | | 5304537814replaces 5304514794 Conveyor,assembly ,dispenser | $30.17 Part Advantage |
| 40 |  | Housing,dispenser ,lower | $36.49 Part Advantage |
| 42 |  | Screw,pan head ,8-18B x 0.31 | $8.19 Part Advantage |
| 45 |  | Drawer Assembly,dispenser | $49.79 Part Advantage |
| 46 |  | Cup Assembly,dispenser ,liquid ,w/cover | $57.26 Parts Dr |
| 49 |  | Slider,drawer ,(2) | $53.53 Parts Dr |
| NI |  | Screw,MC5X8.5 TORX ,cabinet mtg | $9.47 Parts Dr |
| NI |  | Dampener,vibration | $11.51 ApplianceParts Pro |
| NI | | Cable Tie,push mount | $5.34 Part Advantage |
