Model
Electrolux EFMG627UTT1
Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EFMG627UTT1Dryer
4 diagrams104 parts
Parts Sections (4)
Diagram
CABINET/DRUM
Parts in CABINET/DRUM
49 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | Screw,pan head ,8-18B x 0.31 | $8.19 Part Advantage |

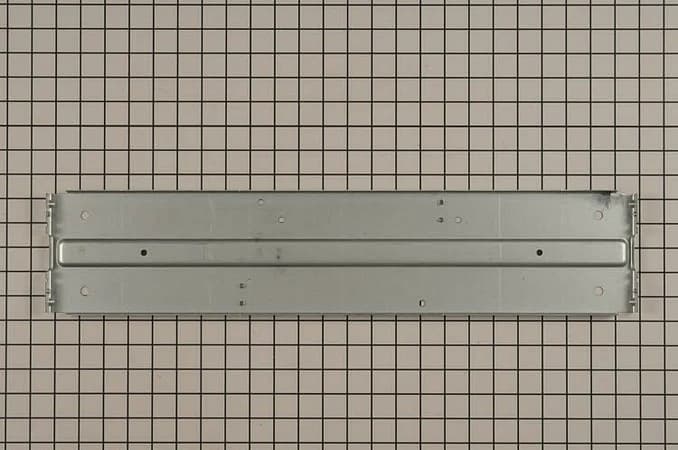

| 4 |  | Bracket,main ,terminal | - |
| 7 |  | Washer,inlet hose | $4.04 Parts Dr |
| 8 |  | Cover,terminal block | - |
| 10 |  | Bracket,front panel | $18.45 Part Advantage |
| 15 |  | Cushion,vibration ,top panel | $6.42 ApplianceParts Pro |
| 16 | | Duct,heat ,rear | $88.88 Parts Dr |
| 17 |  | Protector,edge ,right top front ,85.0+/-1.5 | $10.54 Parts Dr |
| 18 | | 131168200replaces 131477000 Screw,10-16AB x 0.375 | $8.19 Part Advantage |
| 19 |  | Thermistor,inlet | $29.36 Part Advantage |

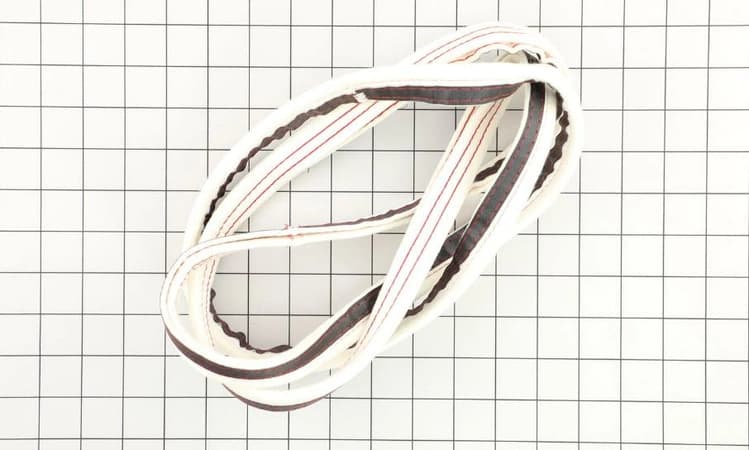

| 20 |  | Seal,felt ,purple stitches ,drum | $38.57 Part Advantage |
| 21 |  | Drum,2 rib 38"^Drum,2 rib 38" | $307.10 Parts Dr |
| 25 |  | Bracket,mounting ,main cntl box | - |

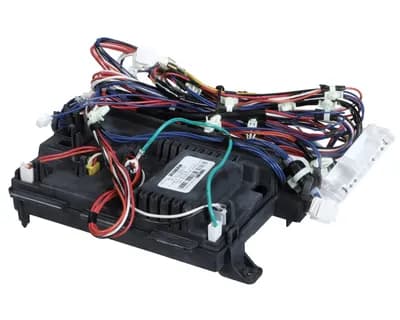

| 26 |  | Main Board,assembly (gas) ,dryer ,w/housing | $209.42 Parts Dr |
| 27B |  | Base,dryer | $161.66 Parts Dr |
| 27L |  | Panel,left side ,white | $124.95 ApplianceParts Pro |
| 27L |  | Panel,left side ,titanium | $137.40 Parts Dr |
| 27R |  | Panel,right side ,white | $127.19 Part Advantage |
| 27R |  | Panel,right side ,titanium | $138.78 ApplianceParts Pro |
| 28 | | 137560425replaces 137560413 Panel,backsheet | - |
| 28A |  | Bracket,reinforcement ,backsheet | $22.51 Parts Dr |
| 29 |  | Screw,#8 pan head ,10-10B x 0.500 ,cr/sq drive | $8.20 Part Advantage |
| 30 |  | Vane,drum ,straight | $48.11 Parts Dr |
| 30A |  | 5304531775replaces 137610500 Vane,drum ,mixing | $14.07 Parts Dr |
| 31 |  | Cord,service ,15Amp ,120V | $55.78 Parts Dr |
| 36 |  | Spacer,drum roller | $18.19 Parts Dr |
| 37 |  | Cover,exhaust tube | $27.34 ApplianceParts Pro |
| 38 |  | Shaft,drum roller ,shoulder bolt | $14.59 Parts Dr |
| 40 |  | Roller Wheel,assembly ,w/bearing | $17.16 Part Advantage |
| 41 |  | Nut,lock | $6.16 Part Advantage |
| 44 |  | Leveling Leg,screw | $11.06 Part Advantage |
| 45 |  | Bulkhead,panel ,rear | $101.16 ApplianceParts Pro |
| 50 |  | Screw,pan head ,8-18AB x 0.375 | $1.96 Part Advantage |
| 51 |  | Install Kit,steam dryer ,Optional ,accessory | $46.00 Parts Dr |
| 52 |  | Screw,comb pan hd ,1/4-14x.375 | $12.85 PartSelect |
| 61 |  | Valve,mist lowprofile | $45.92 Part Advantage |
| 65 |  | Grommet,misting tube | $3.55 Parts Dr |
| 66 |  | 5304529773replaces 137017300 Nut,nozzle | $48.99 Parts Dr |
| 68 | | 5304529773replaces 5304521480 Nozzle Assembly,mist system ,w/tubing-nut | $48.99 Parts Dr |
| NI | | 131168200replaces 5304521493 Screw,pn hd ,#10-16 x .375 ,7.85mm | $8.19 Part Advantage |
| NI |  | Seal,felt ,red stitches ,drum | $34.65 ApplianceParts Pro |
| NI |  | Adhesive,high temp | $34.86 Part Advantage |
| NI | | Harness,wiring ,main | $93.47 ApplianceParts Pro |
| NI |  | Terminal Block Kit,main | $18.45 Part Advantage |
| NI |  | 131302800replaces 131303300 Screw,pan head ,10-16AB x 0.500 ,locking | $7.83 Part Advantage |
| NI | | Brace,side panel | $43.39 Parts Dr |
| NI |  | Screw,10-16AB x 0.625 | $10.54 Parts Dr |
| NI |  | Screw,hex washer head ,10-32 x 0.375 ,ground | $10.31 Parts Dr |
| NI | | Shield,mist valve | $24.61 Part Advantage |
