Model
Electrolux EI15IM55GS0
Ice Maker, Undercounter
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI15IM55GS0Ice Maker, Undercounter
2 diagrams51 parts
Parts Sections (2)
Diagram

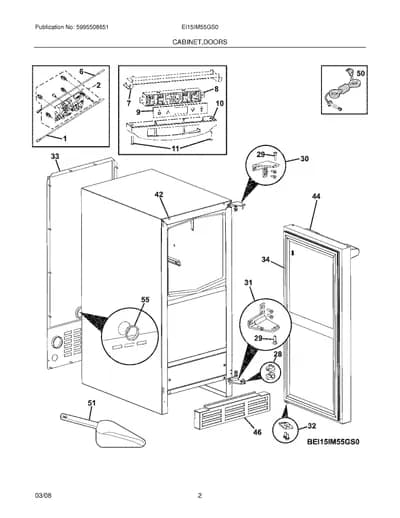

CABINET,DOORS
Parts in CABINET,DOORS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Thermistor,quick connect ,white | Discontinued |

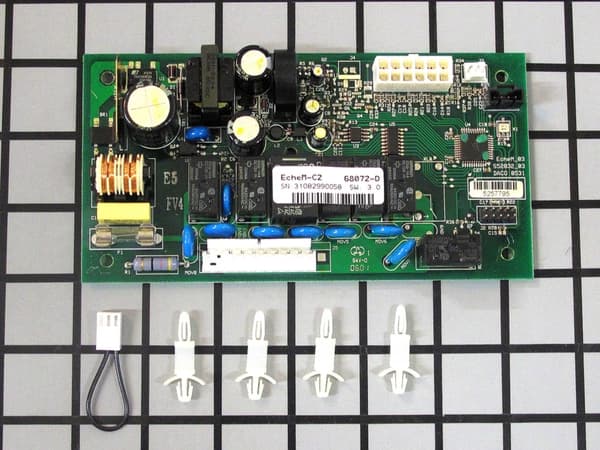

| 2 |  | Control Board,printed circuit | Discontinued |
| 6 |  | 5304465615replaces 75304465615 Thermistor,liquid line ,black | $164.46 PartSelect |
| 7 | – | 75304465616 Base Plate,liner | - |
| 8 | | 5304504317replaces 75304465617 Display Assembly,blue LED | - |
| 9 | | 5304465618replaces 75304465618 Panel,control display ,glass | - |
| 10 | – | 75304465619 Housing,control display | - |

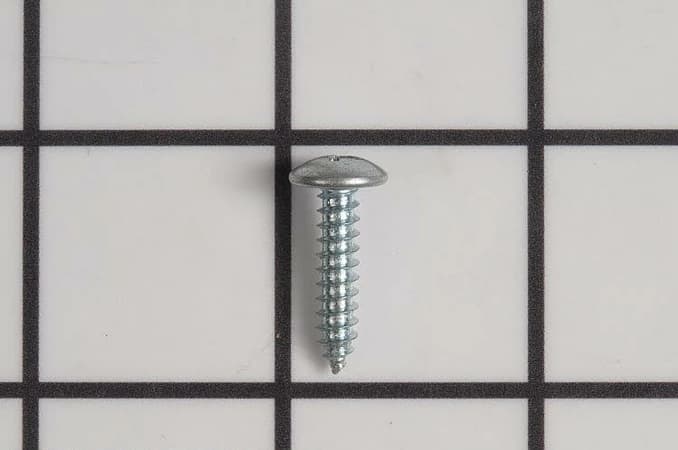

| 11 |  | 5304411997replaces 75304465620 Screw,8-18 X 0.75 ,Plastite | - |
| 28 | | 5304446590replaces 75304446590 Door Closer | - |
| 29 | | 5304446594replaces 75304446594 Pin,pivot post ,hinge | - |
| 30 | | Hinge,top ,w/pivot pin | Discontinued |
| 31 | – | 75304446665 Hinge,bottom ,w/pivot pin | - |
| 32 | – | 75304446666 Plate,door pivot ,with screws | - |
| 33 | – | 75304446667 Panel,back | - |
| 34 | – | 75304446668 Gasket,door | - |
| 42 | – | 75304446611 Plug,hinge holes ,top/bottom | - |
| 44 | | 5304465622replaces 75304465622 Door Assy,Elux ,w/handle,badge | - |
| 46 | | Grille,kick plate ,plastic | Discontinued |
| 50 | – | 75304465596 Power Cord,electric svce | - |
| 51 | | 5304446677replaces 75304446677 Scoop,ice | - |
| 55 | – | 75304465621 Bushing,back panel ,black | - |
| NI |  | 241873301replaces 7241873301 Nameplate,Electrolux ,stainless | $4.51 Parts Dr |
| NI | | 5304465624replaces 75304465624 Bracket,grille mount ,L-shape | - |
| NI | | 5304465625replaces 75304465625 Screw,grille mount | $4.14 RepairClinic |
