Model
Electrolux EI23BC35KW8
Refrigerator, French Door, Bottom Freezer, W/Dispenser
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI23BC35KW8Refrigerator, French Door, Bottom Freezer, W/Dispenser
9 diagrams277 parts
Parts Sections (9)
Diagram

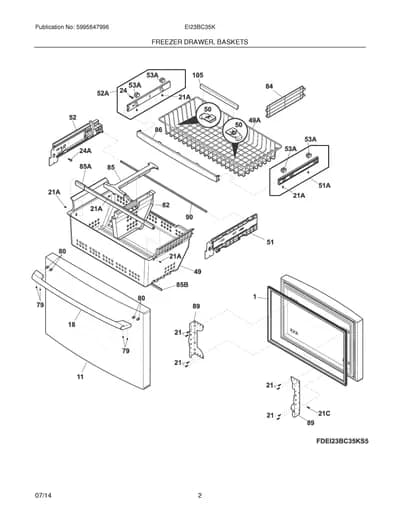

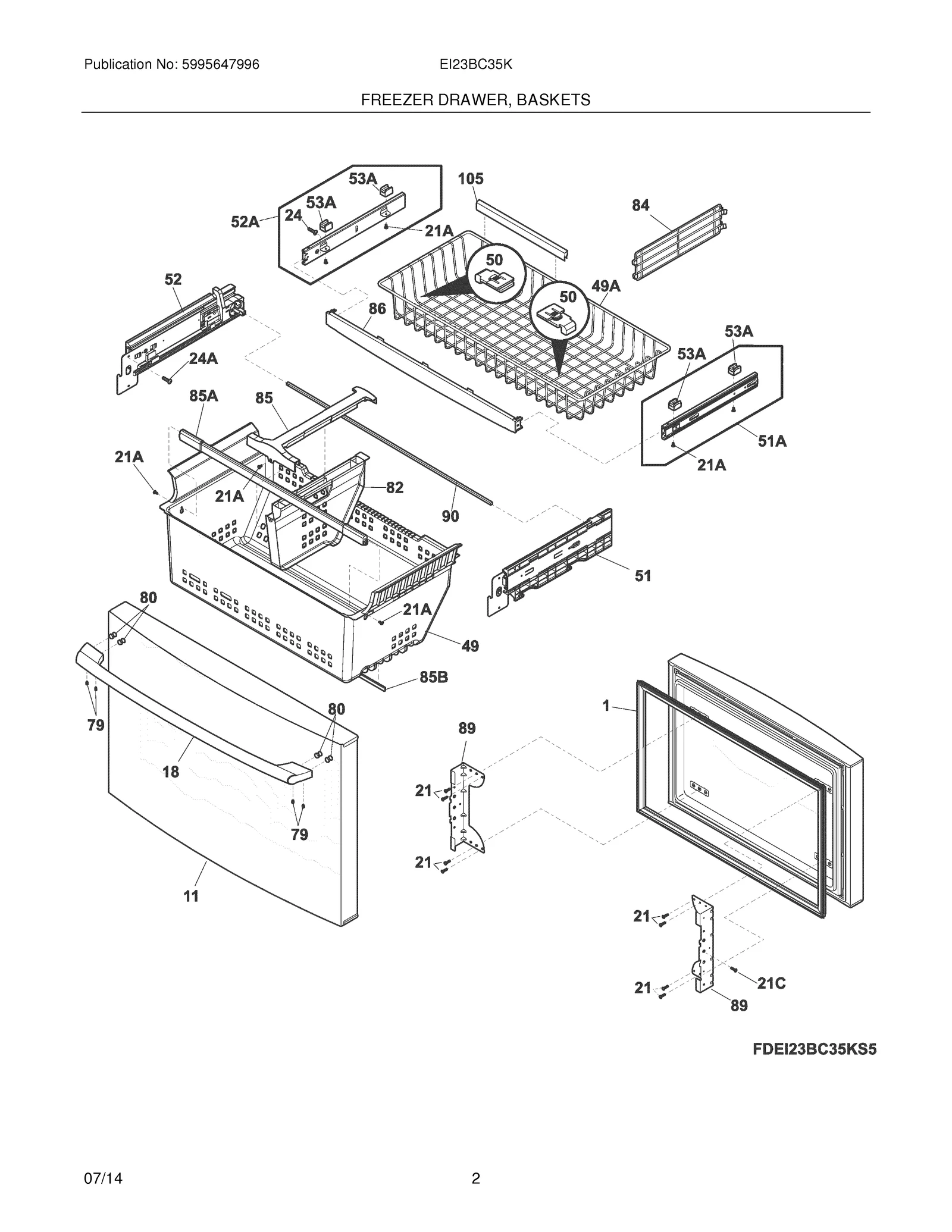

FREEZER DRAWER, BASKETS
Parts in FREEZER DRAWER, BASKETS
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304537408replaces 241778302 GASKET-FRZR DRAWER, WHITE, MAGNETIC | $47.53 Part Advantage |
| 11 |  | DRAWER, WHITE, FREEZER | - |
| 18 | | HANDLE-FRZR DRAWER, WHITE | - |
| 21 |  | Screw,quadrex ,#10-16 Hilo | $6.15 Part Advantage |
| 21A |  | Screw,quad hilo ,#8-18 X 0.380 | $9.89 Part Advantage |
| 21C |  | Screw,truss head ,#10-32 x 1/4 ,zinc | $8.60 Part Advantage |
| 24 |  | 5304515677replaces 240383406 Screw,truss hd quad ,#10-16 x .500 ,zinc | $4.89 Part Advantage |
| 24A |  | Screw,truss hd quad ,#10-16 x .750 ,zinc | $6.62 Part Advantage |
| 49 |  | 5304526200replaces 242130801 Basket-frzr,plastic ,lower | $103.20 PartSelect |
| 49A |  | Basket-frzr,upper | - |
| 50 |  | CLIP-BASKET, PULL SIDE | $13.95 ApplianceParts Pro |
| 51 |  | 5303918694replaces 242147114 SLIDE ASSEMBLY, BASKET LOWER, RH, FREEZER DRAWER | $129.80 Parts Dr |
| 51A |  | Slide Assembly,basket ,RH ,freezer drawer | $83.61 Parts Dr |
| 51A |  | Screw,shoulder ,#10-16 type AB ,upper slides,w/was | $9.95 ApplianceParts Pro |
| 52 |  | 5303918693replaces 242147113 SLIDE ASSEMBLY, BASKET LOWER, RH | - |
| 52A |  | Slide Assembly,basket ,LH ,freezer drawer | $84.01 Parts Dr |
| 53A |  | 5303918801replaces 242216301 Retainer-basket | $9.95 ApplianceParts Pro |
| 79 |  | Screw-set,10-32 x 0.375 | $13.53 Part Advantage |
| 80 |  | Screw,shoulder ,#10-AB ,handle mounting | $7.79 Part Advantage |
| 82 |  | Divider,basket | $45.59 RepairClinic |
| 84 |  | Divider,basket | - |
| 85 |  | Divider,basket ,lower | - |
| 85A |  | Beam,support ,divider ,lower basket | $47.69 Parts Dr |
| 85B |  | Support-Beam | $37.27 ApplianceParts Pro |
| 86 |  | 5304507340replaces 241807605 Trim,drawer ,stabilizer | $30.43 Parts Dr |
| 89 |  | Bracket-freezer drawer | $40.57 RepairClinic |
| 90 |  | Bar-timing | - |
| 105 |  | Trim-basket | - |
| NI |  | Screw,shoulder ,#10-16 type AB ,lower slides,w/was | $3.95 ApplianceParts Pro |
| NI |  | Screw,8-18 X 1/2 | $11.70 Parts Dr |
| NI |  | 5304497384replaces 242147601 Plate,tapping | $6.20 RepairClinic |
| NI |  | Screw,ser hex wash hd ,1/4-20 x 5/8 ,(4) | $8.25 Part Advantage |
| NI |  | Wrench,allen | Discontinued |
| NI | | Spring-compression,divider ,lower basket | $7.33 RepairClinic |
| NI |  | Pin-lock | $11.47 ApplianceParts Pro |
