Model
Electrolux EI23BC51IS2
Refrigerator, French Door, Bottom Freezer, W/O Dispenser
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI23BC51IS2Refrigerator, French Door, Bottom Freezer, W/O Dispenser
7 diagrams290 parts
Parts Sections (7)
Diagram

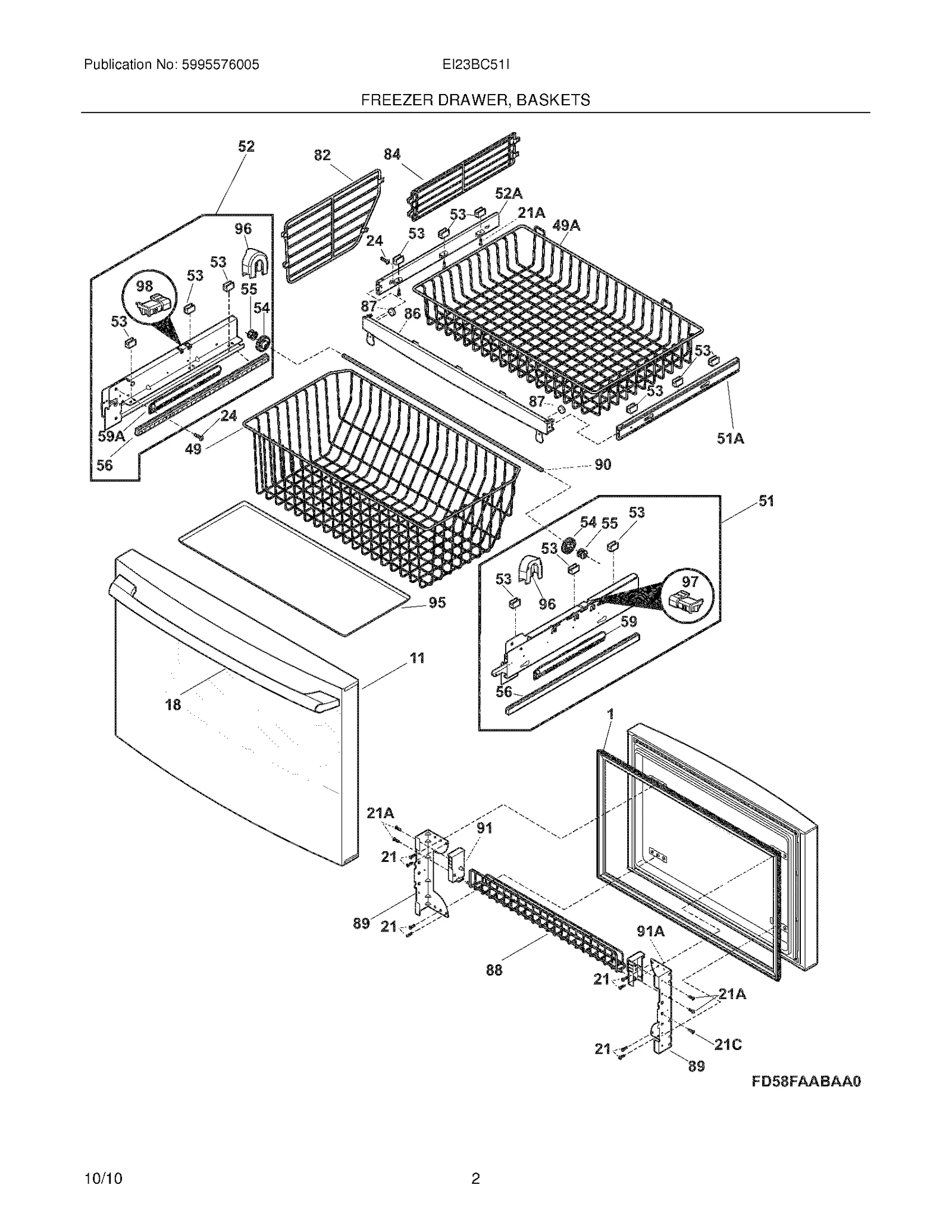

BASKET
Parts in BASKET
38 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304537408replaces 241778302 GASKET-FRZR DRAWER, WHITE, MAGNETIC | $47.53 Part Advantage |
| 11 |  | Drawer,stainless ,freezer | - |
| 18 |  | Handle-frzr drawer,stainless | $152.83 Part Advantage |
| 21 |  | Screw,quad hilo ,#8-18 X 0.380 | $9.89 Part Advantage |
| 21A |  | 242146401replaces 241899601 Screw,hex whd ,1/4-20 x 3/8`` ,connects frz,rails to door ,(4) | $8.25 Part Advantage |
| 21C |  | Screw,truss head ,#10-32 x 1/4 ,zinc | $8.60 Part Advantage |
| 24 |  | 5304515677replaces 240383406 Screw,truss hd quad ,#10-16 x .500 ,zinc | $4.89 Part Advantage |
| 49 | | Basket-frzr,lower | Discontinued |
| 49A | | 241780806NLA Basket-frzr,upper | Discontinued |
| 51 | | Slide Assembly,basket lower ,RH ,freezer drawer | Discontinued |
| 51A |  | 5304491062replaces 241894202 Slide Assembly,basket ,RH ,freezer drawer | $120.96 Parts Dr |
| 52 | | Slide Assembly,basket lower ,LH ,freezer drawer | Discontinued |
| 52A | | 5304491062replaces 241894204 Slide Assembly,basket ,LH ,freezer drawer | $120.96 Parts Dr |
| 53 | | 241824201NLA Retainer-basket | Discontinued |
| 54 |  | Pinion | $20.09 Part Advantage |
| 55 |  | Pinion-idler | $15.44 Parts Dr |
| 56 | – | 241762802 Rack,drawer travel | - |
| 59 |  | 5304474655replaces 241979702 CLOSURE, DRAWER | - |
| 59A |  | 5304474656replaces 241979701 CLOSURE, DRAWER | $33.35 Parts Dr |
| 82 |  | Divider,basket | - |
| 84 |  | 241780905replaces 241780902 Divider,basket ,upper | - |
| 86 |  | 241953202NLA BAR, STABALIZER, FREEZER DRAWER | Discontinued |
| 87 |  | Magnet,door | - |
| 88 |  | 241824008replaces 241824004 Rack-tilt out,door | $25.04 Parts Dr |
| 89 |  | 241972302replaces 241972301 Bracket-freezer drawer | $40.57 RepairClinic |
| 90 |  | 241770705replaces 241770702 Bar,timing | $32.15 Parts Dr |
| 91 |  | Cap-door rack | - |
| 91A |  | Cap,door rack ,white | - |
| 95 | | TRAY-SPILL GUARD,spill guard | - |
| 96 |  | Cover,pinion ,white | $42.40 ApplianceParts Pro |
| 97 |  | ACTUATOR, RH, WHITE, LIGHT | - |
| 98 |  | ACTUATOR, LH, WHITE, LIGHT | - |
| NI |  | Pin-lock | $11.47 ApplianceParts Pro |
| NI |  | Screwdriver,hex ,3/32" ,ball driver^Screwdriver,hex ,3/32" ,ball driver | - |
| NI |  | Screw,shoulder ,#10-16 type AB ,upper slides,w/was | $9.95 ApplianceParts Pro |
| NI |  | Bumper,rubber ,white ,upper basket | $16.95 ApplianceParts Pro |
| NI |  | Screw,shoulder ,#10-AB ,handle mounting | $7.79 Part Advantage |
| NI |  | Wrench,allen | Discontinued |
