Model
Electrolux EI23BC56IS5
Refrigerator, French Door, Bottom Freezer, W/Dispenser
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI23BC56IS5Refrigerator, French Door, Bottom Freezer, W/Dispenser
7 diagrams306 parts
Parts Sections (7)
Diagram

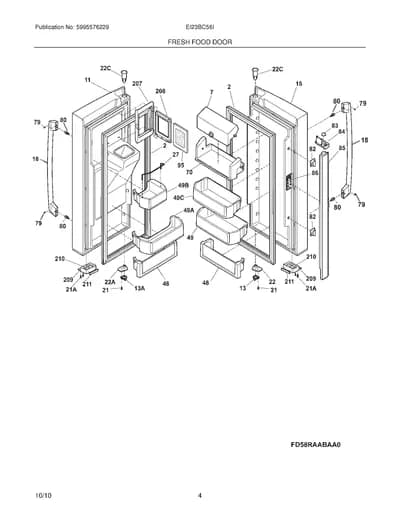

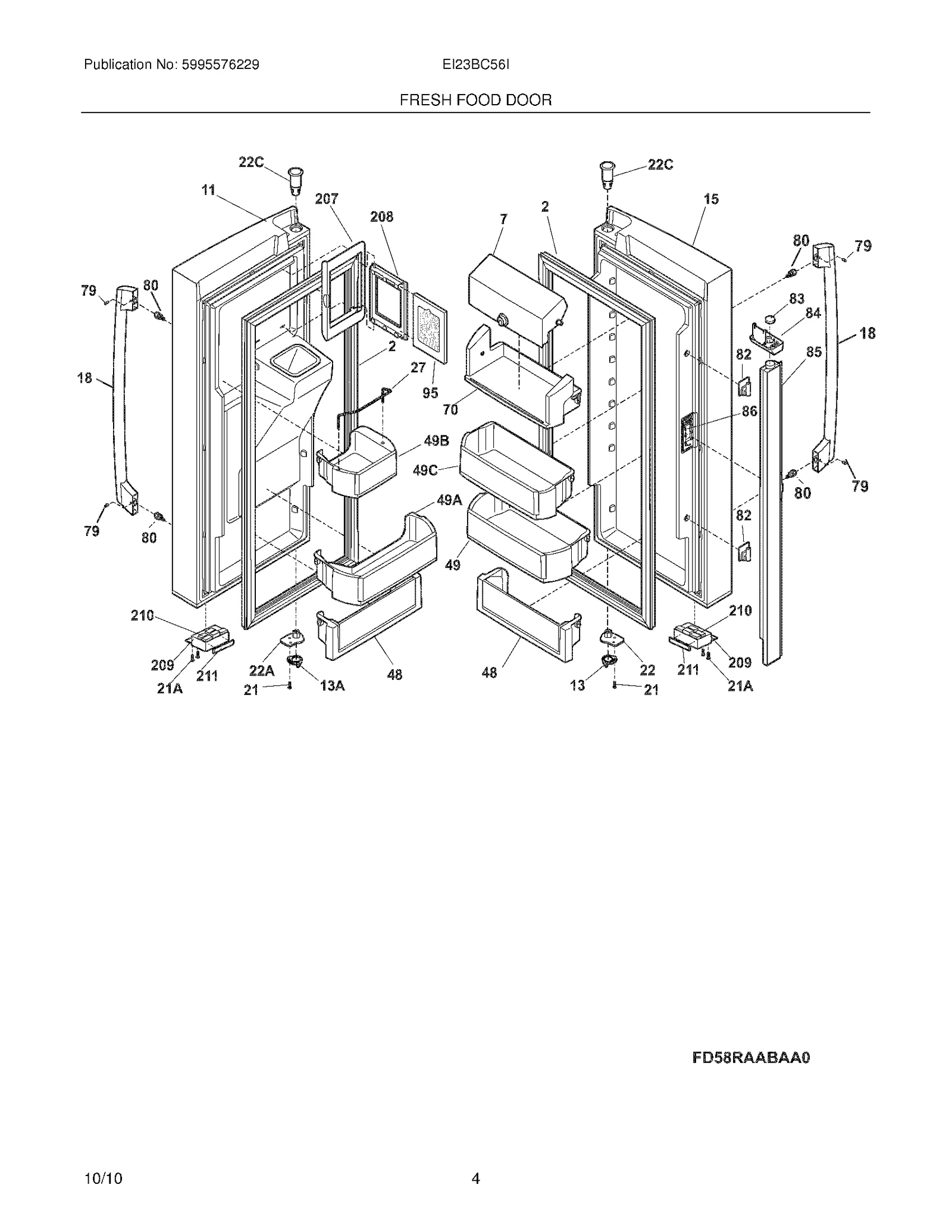

FRESH FOOD DOOR
Parts in FRESH FOOD DOOR
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | 241778315replaces 241778301 Gasket,door ,white ,fresh food | $56.47 Part Advantage |
| 7 |  | 241895805replaces 241804701 Door-dairy | $76.78 PartSelect |
| 11 |  | Door-refr,stainless ,LH | - |
| 13 |  | Door Stop,refrig RH ,plated | $13.13 Parts Dr |
| 13A |  | Door Stop,refrig LH ,plated | - |
| 15 | | Door-refr,stainless ,RH | - |
| 18 |  | Handle-door,stainless | $151.70 Parts Dr |
| 21 |  | Screw,10-32 x 0.750 | $6.19 RepairClinic |
| 21A |  | 5304453707replaces 241953901 Screw,quad hilo ,#8-18 x 0.50 | $8.60 Part Advantage |
| 22 |  | Cam,upper hinge ,RH | $17.64 RepairClinic |
| 22A |  | Cam,upper hinge ,LH | - |
| 22C |  | Bearing,hinge ,top ,LH door | $13.57 Parts Dr |
| 27 |  | Retainer,tall bottle | - |
| 48 |  | Bin-door,can | $65.95 ApplianceParts Pro |
| 49 |  | Bin-door,gallon | $69.70 Parts Dr |
| 49A | | 241896003NLA Bin-door,2-liter | Discontinued |
| 49B |  | Bin-door,dispenser | $26.95 ApplianceParts Pro |
| 49C |  | Bin-door,1/2 gallon | $78.77 PartSelect |
| 70 | | 241895805replaces 241804604 Compartment-dairy,removable | $76.78 PartSelect |
| 79 |  | Screw-set,10-32 x 0.375 | $13.53 Part Advantage |
| 80 |  | Screw,shoulder ,#10-AB ,handle mounting | $7.79 Part Advantage |
| 82 |  | Hinge-mullion,upper/lower ,flipper | $10.34 Part Advantage |
| 83 |  | MAGNET, DOOR | $48.95 ApplianceParts Pro |
| 84 |  | 5303918644replaces 241779702 GUIDE-MULLION, MAGNET COVER, FLIPPER | $28.89 Parts Dr |
| 85 |  | 241778808replaces 241778801 Flipper mullion assembly,w/heater | $186.21 Parts Dr |
| 86 |  | 241779802replaces 241779801 Hinge-mullion,center ,flipper | $19.97 Part Advantage |
| 95 |  | EAFCBFreplaces 242047801 Filter,air | $11.29 Part Advantage |
| 207 |  | HOUSING-FILTER, AIR | $30.55 ApplianceParts Pro |
| 208 |  | Door-air filter | - |
| 209 |  | 242291001replaces 242021001 HOUSING-MAGNET, WHITE | $13.60 Parts Dr |
| 210 |  | 241779101replaces 241779103 MAGNET, DOOR | $18.03 Part Advantage |
| 211 |  | Bumper,rubber ,white ,upper basket | $16.95 ApplianceParts Pro |
| NI |  | Knob-dairy door | - |
| NI | | Divider-dairy compt,70* | - |
| NI |  | Screw,8-18 X 1/2 | $11.70 Parts Dr |
| NI |  | 240451503replaces 242064001 Screw | $2.67 ApplianceParts Pro |
| NI | | 5304453707replaces 241641501 Screw | $8.60 Part Advantage |
| NI |  | Wrench,allen | Discontinued |
| NI | | 241891401NLA COVER-LIGHT, LED HOLE, NO LED | Discontinued |
| NI |  | Latch-door | - |
| NI | | Harness-wiring,door | - |
| NI |  | Bumper,flipper mullion | $8.38 Parts Dr |
| NI |  | 5303918596replaces 5303918371 Dispenser Heater Kit,115 ,single paddle | $209.22 Part Advantage |
| NI | | HARNESS-WIRING, FLIPPER MULLION | - |
| NI |  | 241806601replaces 242103001 Connector,water tube ,5/16 to 5/16 ,straight | $39.76 Part Advantage |
