Model
Electrolux EI23CS55GS9
Refrigerator, Side-By-Side, W/Dispenser
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI23CS55GS9Refrigerator, Side-By-Side, W/Dispenser
8 diagrams252 parts
Parts Sections (8)
Diagram

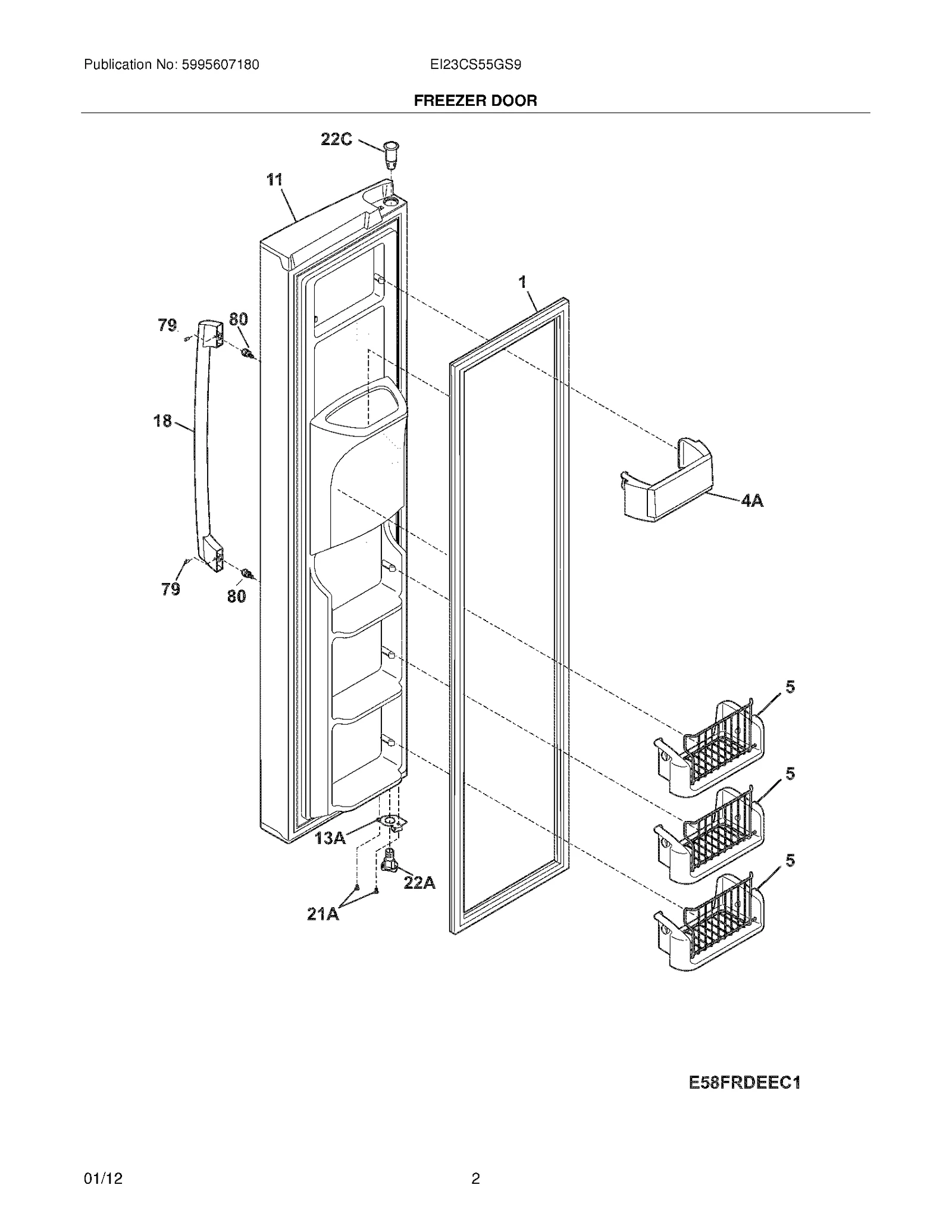

FREEZER DOOR
Parts in FREEZER DOOR
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR, WHITE, MAGNETIC | $163.30 Parts Dr |
| 4A |  | BIN-DOOR, FRZR-UPPER | - |
| 5 | – | 241545007 Bin-tilt out,tilt-out | - |
| 11 |  | 242026442NLA Door-frzr,stainless ,complete assy | Discontinued |
| 13A |  | Door Stop,black ,frzr | $15.00 Parts Dr |
| 18 | | HANDLE-REFR DOOR, STAINLESS | - |
| 21A |  | 240442708replaces 240442706 Screw,#10-32 x 3/4 ,zinc | $4.50 Part Advantage |
| 22A |  | Bearing-hinge(frz),closer | $4.09 Part Advantage |
| 22C |  | Bearing,hinge ,top ,LH door | $13.57 Parts Dr |
| 79 |  | Screw-set,10-32 x 0.375 | $13.53 Part Advantage |
| 80 |  | Screw,shoulder ,#10-AB ,handle mounting | $7.79 Part Advantage |
| NI |  | Screwdriver,hex ,3/32" ,ball driver^Screwdriver,hex ,3/32" ,ball driver | - |
| NI | | HARNESS-WIRING, DOOR | - |
| NI |  | Wrench,allen | Discontinued |
| NI |  | 241806601replaces 242103001 Connector,water tube ,5/16 to 5/16 ,straight | $39.76 Part Advantage |
| NI |  | 5303918596replaces 5303918371 Dispenser Heater Kit,115 ,single paddle | $209.22 Part Advantage |
| NI |  | Screw,ind hex wshr hd ,8-32 x 0.375 ,trilobe | $2.67 ApplianceParts Pro |
