Model
Electrolux EI24BC65GS2
Refrigerator, Beverage Center
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI24BC65GS2Refrigerator, Beverage Center
4 diagrams96 parts
Parts Sections (4)
Diagram

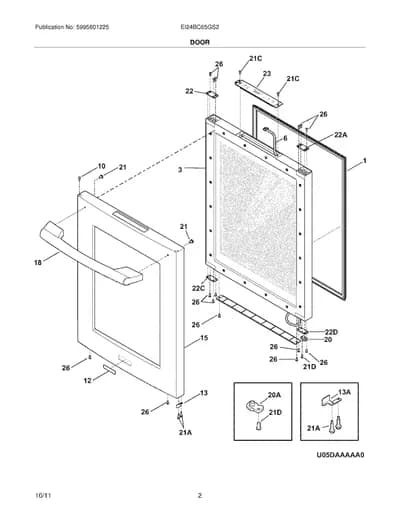

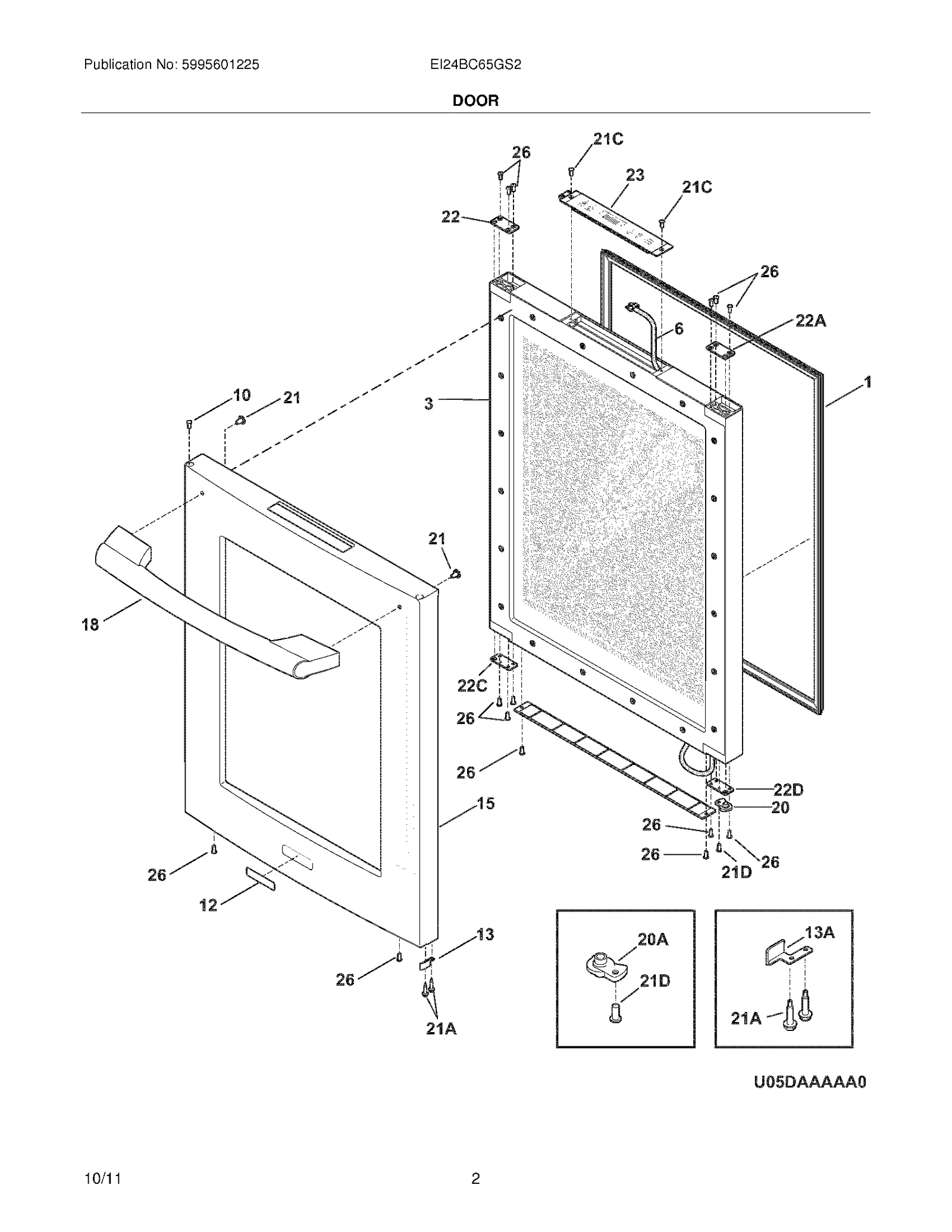

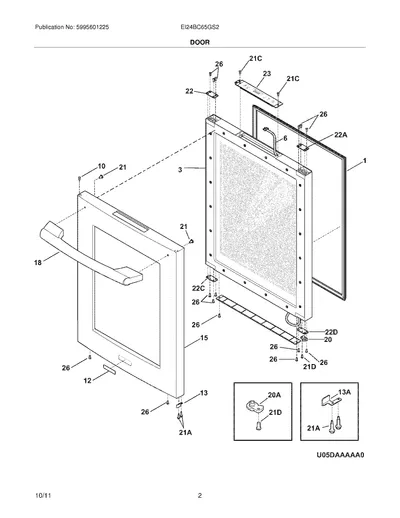

DOOR
Parts in DOOR
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 242038601NLA Gasket-door,black | Discontinued |
| 3 | | 241879201NLA Door Assembly,glass ,w/framing | Discontinued |
| 6 |  | Harness-wiring,door | - |
| 10 |  | Plug-button,black | $9.83 Part Advantage |
| 12 |  | Nameplate,Electrolux ,stainless | $4.51 Parts Dr |
| 13 | – | 241866601 Door Stop,black ,RH | - |
| 13A |  | Door Stop,black ,LH | - |
| 15 | | Cover-door,stainless | - |
| 18 | | HANDLE, DOOR, STAINLESS | - |
| 20 | | 241866801NLA Door Closer,cam ,black RH ,upper | Discontinued |
| 20A | | Door Closer,cam ,black LH ,upper | - |
| 21 |  | 241710601replaces 241951701 SCREW, TRUSS HEAD, 1/4-20 | $7.79 Part Advantage |
| 21A |  | 154518001replaces 241906101 SCREW-No.10 X 3/4 TEK | - |
| 21C | | Screw,No.8-32 x 3/8 ,flat head | - |
| 21D |  | 134154100replaces 241904601 Screw,No.10-32 x 1/4 | $10.68 Parts Dr |
| 22 | | Plate-door,upper left | - |
| 22A | | Plate-door,upper right | - |
| 22C | | Plate-door,lower left | - |
| 22D | – | 241866502 Plate-door,lower right | - |
| 23 | | 241897402NLA Board-control,temp control | Discontinued |
| 26 |  | Screw,cr pan hd ,10-16 x 0.500 | $4.09 Part Advantage |
