Model
Electrolux EI24MO45IBA
Microwave, Built-In
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI24MO45IBAMicrowave, Built-In
2 diagrams61 parts
Parts Sections (2)
Diagram

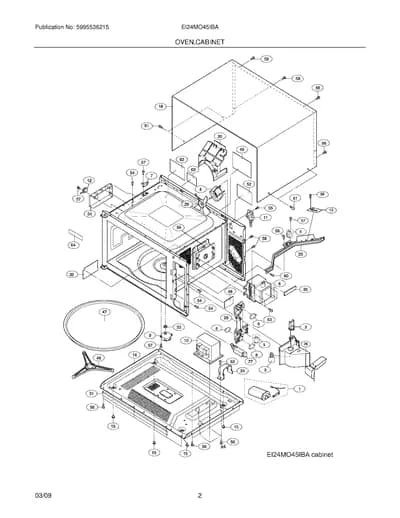

OVEN,CABINET
Parts in OVEN,CABINET
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304487566replaces 75304462258 Capacitor/Rectifier Assy,HV | $78.70 Parts Dr |
| 2 |  | 5304461117replaces 75303319561 Receptacle,lamp socket ,oven | - |
| 3 |  | 5304464198replaces 75304464198 Lamp,oven light | $22.54 Part Advantage |
| 4 |  | 5304493152replaces 75304448490 Motor,cooling fan | - |
| 5 |  | 5304468224replaces 75304440027 Switch Kit,monitor ,with CT fuse | $52.62 Parts Dr |
| 6 |  | 5304493153replaces 75304440026 Switch,interlock ,door sensor | $37.66 Part Advantage |
| 7 |  | 5304440780replaces 75304440780 Fuse,cavity temp ,20 Amp ,250 V | $58.93 Parts Dr |

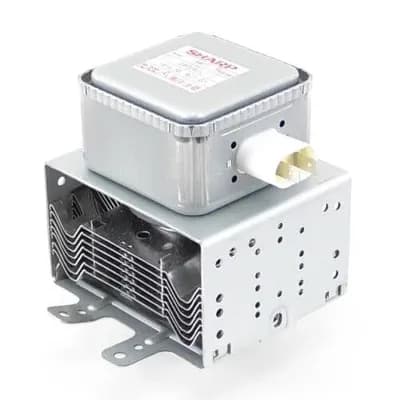

| 8 |  | 5304521745replaces 75304472253 Magnetron | $130.37 Part Advantage |
| 9 |  | 5304440021replaces 75304440021 Motor,turntable | $53.34 Parts Dr |
| 10 |  | 5304473321replaces 75304440876 Transformer,power | $164.95 ApplianceParts Pro |
| 11 |  | 5304440784replaces 75304440784 Power Cord,electric | - |
| 12 | | 5304464897replaces 75304464897 Sensor,humidity ,cook control | - |
| 13 |  | 5304493151replaces 75303322968 Filter,noise ,electronic | - |
| 14 | | 5304478938replaces 75304440814 Base,unit chassis | $35.33 RepairClinic |
| 15 | | 5304494209replaces 75304440815 Foot,cabinet support | $12.52 ApplianceParts Pro |
| 16 |  | 5304478940replaces 75304440816 Cabinet,outer casing ,black | - |
| 24 | – | 75304440838 Retainer,capacitor strap | - |
| 25 | | 5304462313replaces 75304462313 Bracket,chassis support | - |
| 26 |  | 5304503439replaces 75304440840 Latch Hook | $35.06 Part Advantage |
| 27 |  | 5304485407replaces 75304464899 Lever,door release | $36.63 Part Advantage |
| 28 | | 5304464197replaces 75304464197 Duct,magnetron | - |
| 29 | | Fan Blade,cooling fan | Discontinued |
| 30 | | 5304440844replaces 75304440844 Duct,cooling fan | - |
| 31 | – | 75304464900 Filler Strip,base plate ,bottom | - |
| 32 |  | 5304462314replaces 75304462314 Cover,waveguide | $33.13 Part Advantage |
| 33 | | 5304440288replaces 75304440288 Bushing,motor shaft ,turntable | - |
| 34 | – | 75304440847 Duct,AH sensor | - |
| 35 | | Cushion,magnetron pad | Discontinued |
| 46 |  | 5304467717replaces 75304440284 Support Assy,turntable | $68.29 Part Advantage |
| 47 |  | 5304529482replaces 75304440868 Tray,turntable ,glass | $60.84 Part Advantage |
| 48 |  | 5304440334replaces 75304440334 Label,Caution-monitor | - |
| 49 | | 5304440333replaces 75304440333 Label,Caution-DHHS | - |
| 52 | | 75304465314NLA Label,NHW caution | Discontinued |
| 53 | | 5304461379replaces 75303319636 Screw | - |
| 54 |  | 5303319641replaces 75303319641 Screw | $9.63 ApplianceParts Pro |
| 55 | | 5304462315replaces 75304462315 Screw,4 mm x 12 mm ,ground | - |
| 56 |  | 5304451553replaces 75304451553 Screw,4 mm x 12 mm | - |
| 57 |  | 5304453725replaces 75304453725 Screw,3mm x 8mm | - |
| 58 |  | 5304450253replaces 75304450253 Screw,4 mm x 8 mm | - |
| 59 | | 5304440873replaces 75304440873 Screw,Torx ,T20H/GTXH20-100 | - |
| 60 | | 5304451553replaces 75304462316 Screw | - |
| 61 | | 5304452261replaces 75304452261 Screw,black ,outer casing | - |
| 62 | | 5304453941replaces 75304453941 Label,caution ,UL screw | - |
| 63 | | 5304451535replaces 75304451535 Label,height caution | - |
| 64 | | 5304472255replaces 75304472255 Label,menu | - |
