Model
Electrolux EI24RD65KS1
Refrigerator, Drawers
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI24RD65KS1Refrigerator, Drawers
3 diagrams91 parts
Parts Sections (3)
Diagram

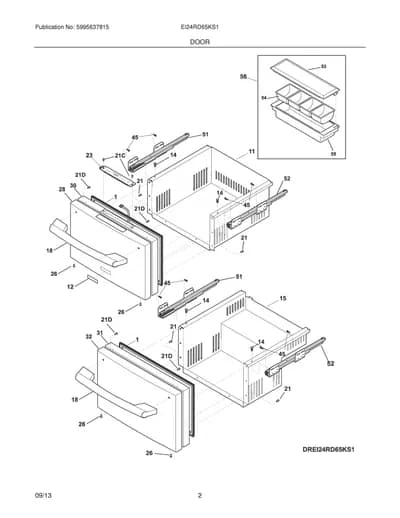

DOORS
Parts in DOORS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 242038301NLA Gasket-drawer | Discontinued |
| 11 | | 241965801NLA DRAWER-TOP | Discontinued |
| 12 |  | Nameplate,Electrolux ,stainless | $4.51 Parts Dr |
| 14 | – | 241967001 PLUG-BUTTON, BLACK | - |
| 15 | | DRAWER-BOTTOM | - |
| 18 | | HANDLE, DOOR, STAINLESS | - |

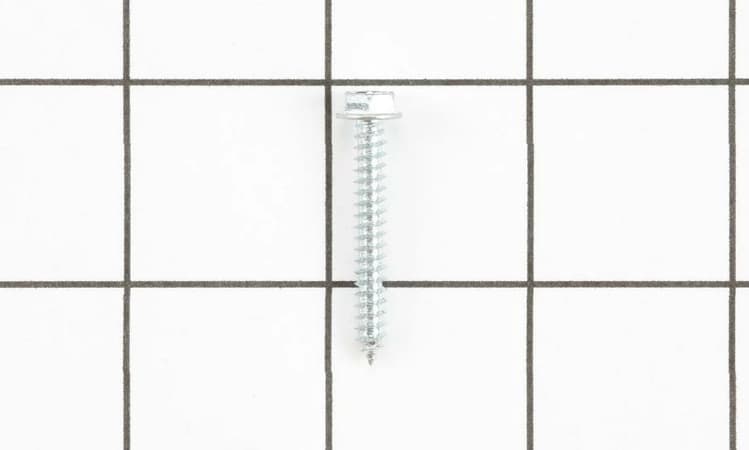

| 21 |  | Screw,hex washer head ,8-18AB x 1.250 ,spacer,(2) | $9.95 ApplianceParts Pro |
| 21C | | Screw,No.8-32 x 3/8 ,flat head | - |
| 21D |  | 241710601replaces 241951701 SCREW, TRUSS HEAD, 1/4-20 | $7.79 Part Advantage |
| 21D | – | 241978101 Plate,stiffener ,screw | - |

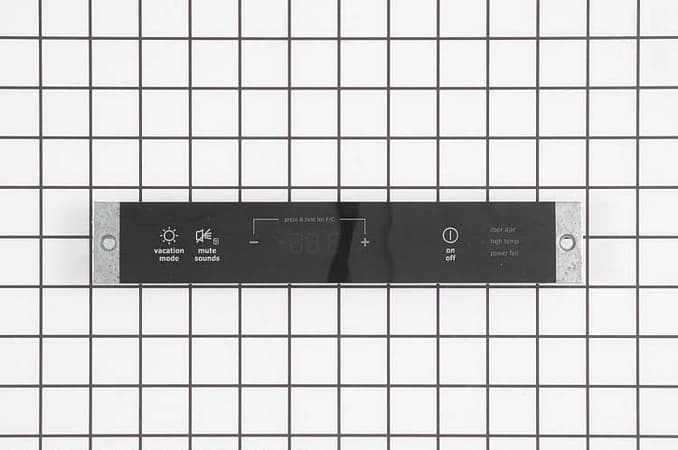

| 23 |  | BOARD-CONTROL, TEMP CONTROL | - |
| 26 | – | 215503206 Screw-No.10-16 HILO PHIL PAN HD | - |
| 28 | | COVER-TOP DRAWER | - |
| 30 | | FRONT, TOP DRAWER, W/UI HARNESS | - |
| 31 | | FRONT-DRAWER, BOTTOM DRAWER | - |
| 32 | – | 241959303 COVER-BOTTOM DRAWER | - |
| 45 |  | Screw,truss hd quad ,#10-16 x .500 ,white | $9.83 ApplianceParts Pro |
| 51 | | Rail-shelf,full access ,left | - |
| 52 | – | 242112602 Rail-shelf,full access ,right | - |
| 53 | – | 241965701 Lid-condiment tray | - |
| 54 | – | 241964401 Plate-condiment tray | - |
| 55 | | 241965501replaces 241965601 Tray-condiment | - |
| 56 | | TRAY-CONDIMENT, COMPLETE ASSEMB | - |
| NI |  | Clip,grille/tube ,& hinge | $12.63 Parts Dr |
