Model
Electrolux EI24WC75HS0
Refrigerator, Wine Cooler
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI24WC75HS0Refrigerator, Wine Cooler
4 diagrams94 parts
Parts Sections (4)
Diagram

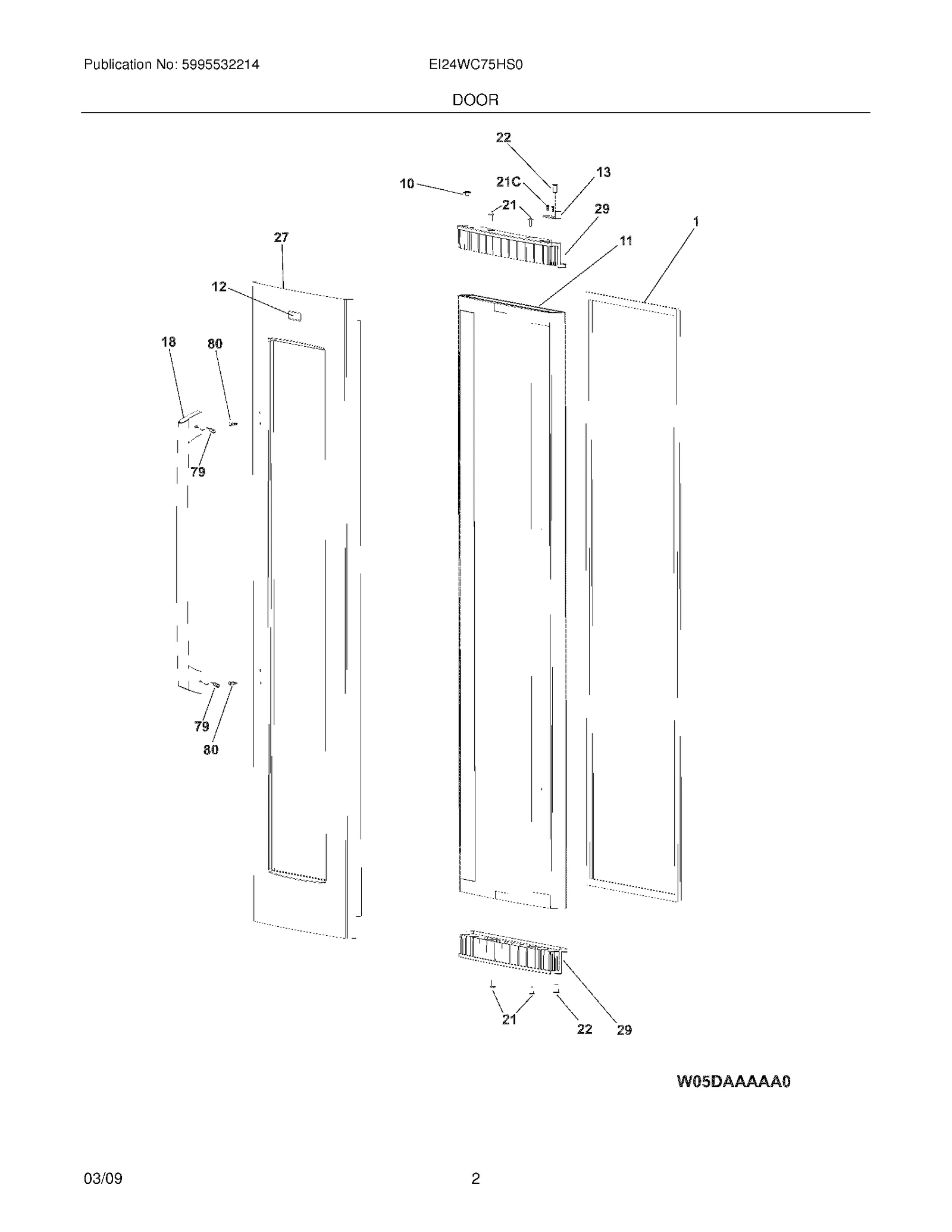

DOOR
Parts in DOOR
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 7242001801 Gasket-door | - |
| 10 | – | 7242001601 Plug-hole,hinge pin | - |
| 11 | – | 7242000601 Panel-door,Glass w/frame | - |
| 12 |  | 241873301replaces 7241873307 Nameplate,Electrolux | $4.51 Parts Dr |
| 13 | – | 7242001201 Door Stop,wine tower | - |
| 18 |  | 241881304replaces 7241881304 Handle-refr door,stainless | - |
| 21 | – | 7242001501 Screw,end cap | - |
| 21C | – | 7242001301 Screw,door stop | - |
| 22 | – | 7242001701 Bushing-hinge | - |
| 27 | – | 7242001101 Cover-door,wine tower | - |
| 29 | – | 7242001401 End Cap,door ,top & bottom | - |
| 79 |  | 218755401replaces 7218755401 Screw-set,10-32 x 0.375 | $13.53 Part Advantage |
| 80 |  | 218755504replaces 7218755504 Screw-shoulder,No.10 AB ,handle mounting | $7.79 Part Advantage |
| NI | – | 7241601002 Wrench,allen | - |
