Model
Electrolux EI27BS26JSD
Refrigerator, French Door, Bottom Freezer, W/Dispenser
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI27BS26JSDRefrigerator, French Door, Bottom Freezer, W/Dispenser
8 diagrams272 parts
Parts Sections (8)

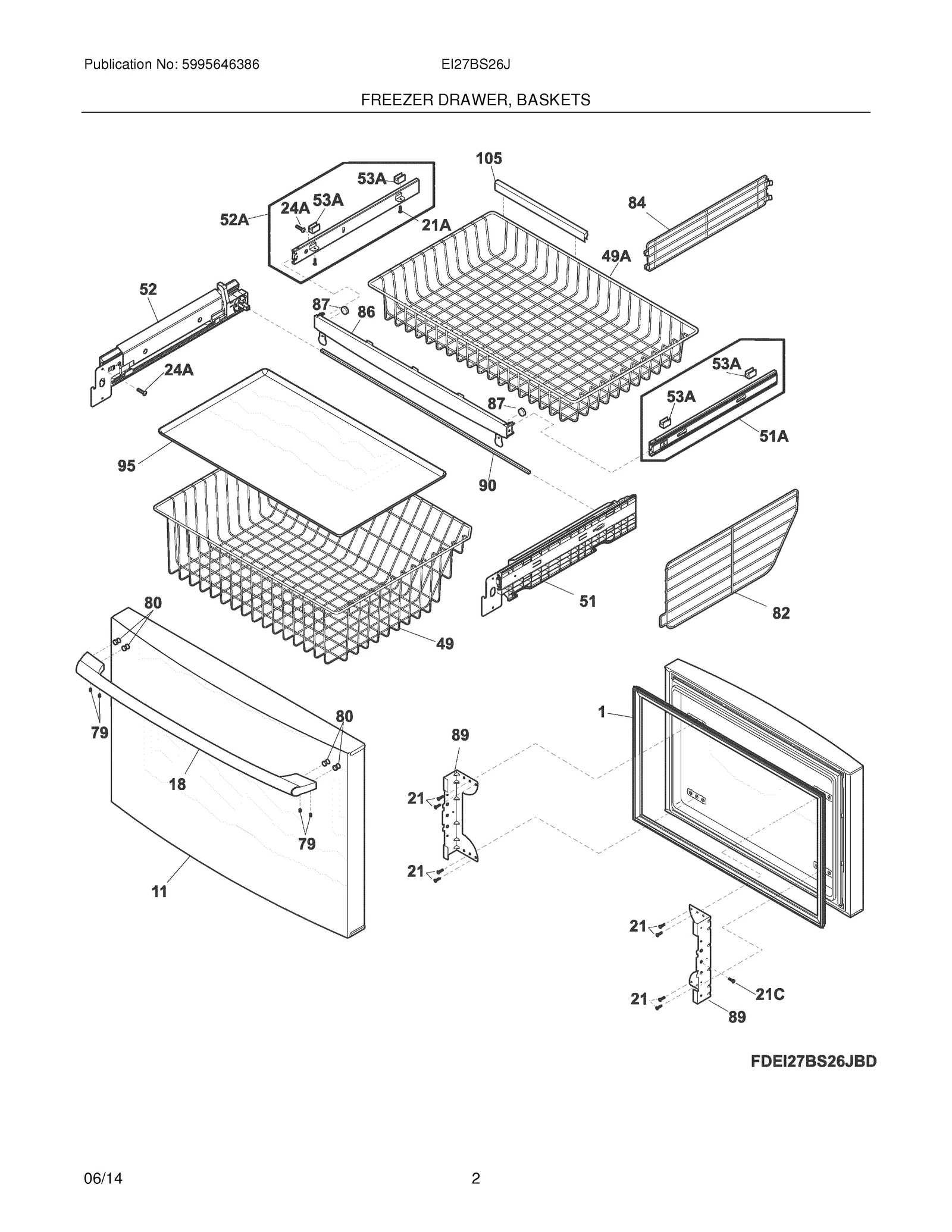

Diagram
FREEZER DRAWER, BASKETS
Parts in FREEZER DRAWER, BASKETS
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304537408replaces 241778302 GASKET-FRZR DRAWER, WHITE, MAGNETIC | $47.53 Part Advantage |
| 11 |  | 241987917NLA DOOR-FRZR, STAINLESS, COMPLETE ASSY | Discontinued |
| 18 |  | Handle-frzr drawer,stainless | $152.83 Part Advantage |
| 21 |  | Screw,quadrex ,#10-16 Hilo | $6.15 Part Advantage |
| 21A |  | Screw,quad hilo ,#8-18 X 0.380 | $9.89 Part Advantage |
| 21C |  | Screw,truss head ,#10-32 x 1/4 ,zinc | $8.60 Part Advantage |
| 24A |  | Screw,truss hd quad ,#10-16 x .750 ,zinc | $6.62 Part Advantage |
| 49 | | BASKET-FRZR, LOWER | - |
| 49A | | 241780815NLA BASKET-FRZR, UPPER | Discontinued |
| 51 |  | 5303918692replaces 242130516 Slide Assembly,basket lower ,RH ,freezer drawer | $186.95 ApplianceParts Pro |
| 51A |  | Screw,shoulder ,#10-16 type AB ,upper slides,w/was | $9.95 ApplianceParts Pro |
| 51A |  | SLIDE ASSEMBLY, BASKET, RH, FREEZER DRAWER | $83.13 Parts Dr |
| 52 |  | 5303918691replaces 242130515 Slide Assembly,basket lower ,LH ,freezer drawer | - |
| 52A |  | SLIDE ASSEMBLY, BASKET, LH, FREEZER DRAWER | $82.69 Parts Dr |
| 53A |  | 5303918801replaces 242216301 Retainer-basket | $9.95 ApplianceParts Pro |
| 79 |  | Screw-set,10-32 x 0.375 | $13.53 Part Advantage |
| 80 |  | Screw,shoulder ,#10-AB ,handle mounting | $7.79 Part Advantage |
| 82 | – | 242027103 DIVIDER, BASKET, LOWER | - |
| 84 |  | Divider,basket ,upper | - |
| 86 | | 242090701NLA BAR-STABILIZER, FREEZER DRAWER | Discontinued |
| 87 |  | Magnet,door | - |
| 89 |  | Bracket-freezer drawer | $40.57 RepairClinic |
| 90 | | Bar-timing | - |
| 95 |  | TRAY, SPILL GUARD | - |
| 105 |  | Trim-basket | - |
| NI |  | Pin-lock | $11.47 ApplianceParts Pro |
| NI |  | Screw,ser hex wash hd ,1/4-20 x 5/8 ,(4) | $8.25 Part Advantage |
| NI |  | 5304497384replaces 242147601 Plate,tapping | $6.20 RepairClinic |
| NI |  | 5304453707replaces 241953901 Screw,quad hilo ,#8-18 x 0.50 | $8.60 Part Advantage |
| NI |  | Wrench,allen | Discontinued |
| NI |  | Screw,shoulder ,#10-16 type AB ,lower slides,w/was | $3.95 ApplianceParts Pro |
