Model
Electrolux EI27BS26JW9
Refrigerator, French Door, Bottom Freezer, W/Dispenser
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI27BS26JW9Refrigerator, French Door, Bottom Freezer, W/Dispenser
7 diagrams279 parts
Parts Sections (7)
Diagram

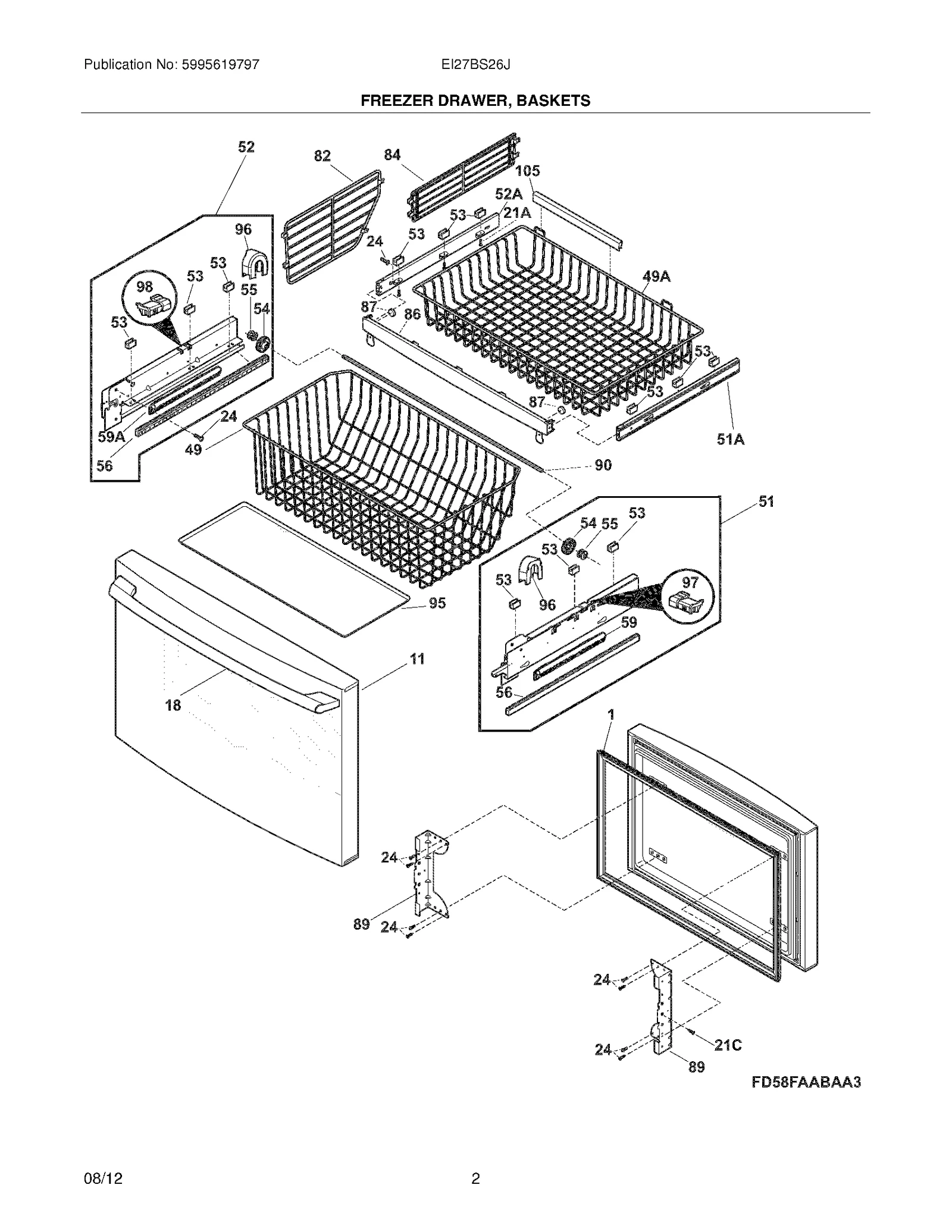

FREEZER DRAWER, BASKETS
Parts in FREEZER DRAWER, BASKETS
38 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304537408replaces 241778302 GASKET-FRZR DRAWER, WHITE, MAGNETIC | $47.53 Part Advantage |
| 11 |  | DRAWER, WHITE, FREEZER | - |
| 18 | | HANDLE-FRZR DRAWER, WHITE | - |
| 21A |  | Screw,quad hilo ,#8-18 X 0.380 | $9.89 Part Advantage |
| 21C |  | Screw,ser hex wash hd ,1/4-20 x 5/8 ,(4) | $8.25 Part Advantage |
| 21C |  | 5304497384replaces 242147601 Plate,tapping | $6.20 RepairClinic |
| 24 |  | 5304515677replaces 240383406 Screw,truss hd quad ,#10-16 x .500 ,zinc | $4.89 Part Advantage |
| 49 | | BASKET-FRZR, LOWER | - |
| 49A | | BASKET-FRZR, UPPER | Discontinued |
| 51 |  | SLIDE ASSEMBLY, BASKET LOWER, RH, FREEZER DRAWER | $186.51 Parts Dr |
| 51A |  | 241894223replaces 241894211 SLIDE ASSEMBLY, BASKET, RH, FREEZER DRAWER | $83.13 Parts Dr |
| 52 |  | 5304489981replaces 241883704 SLIDE ASSEMBLY, BASKET LOWER, LH, FREEZER DRAWER | $338.77 Part Advantage |
| 52A |  | 241894224replaces 241894213 SLIDE ASSEMBLY, BASKET, LH, FREEZER DRAWER | $82.69 Parts Dr |
| 53 | | 241824201NLA Retainer-basket | Discontinued |
| 54 |  | Pinion | $20.09 Part Advantage |
| 55 |  | Pinion-idler | $15.44 Parts Dr |
| 56 | | 242158001NLA Rack-drawer travel | Discontinued |
| 59 |  | 5304474655replaces 241979702 CLOSURE, DRAWER | - |
| 59A |  | 5304474656replaces 241979701 CLOSURE, DRAWER | $33.35 Parts Dr |
| 82 | – | 242027103 DIVIDER, BASKET, LOWER | - |
| 84 |  | 241780904replaces 241780901 DIVIDER, BASKET, UPPER | - |
| 86 | | 242090701NLA BAR-STABILIZER, FREEZER DRAWER | Discontinued |
| 87 |  | Magnet,door | - |
| 89 |  | Bracket-freezer drawer | $40.57 RepairClinic |
| 90 | | 241770703NLA Bar-timing | Discontinued |
| 95 |  | TRAY, SPILL GUARD | - |
| 96 |  | 241973501replaces 242156901 COVER, PINION | $42.40 ApplianceParts Pro |
| 97 |  | ACTUATOR, RH, WHITE, LIGHT | - |
| 98 |  | ACTUATOR, LH, WHITE, LIGHT | - |
| 105 |  | Trim-basket | - |
| NI |  | Screw,shoulder ,#10-AB ,handle mounting | $7.79 Part Advantage |
| NI |  | Screw,truss head ,#10-32 x 1/4 ,zinc | $8.60 Part Advantage |
| NI |  | Screwdriver,hex ,3/32" ,ball driver^Screwdriver,hex ,3/32" ,ball driver | - |
| NI |  | Screw,shoulder ,#10-16 type AB ,upper slides,w/was | $9.95 ApplianceParts Pro |
| NI |  | Screw-set,10-32 x 0.375 | $13.53 Part Advantage |
| NI |  | Pin-lock | $11.47 ApplianceParts Pro |
| NI |  | Bumper,rubber ,white ,upper basket | $16.95 ApplianceParts Pro |
| NI |  | Wrench,allen | Discontinued |
