Model
Electrolux EI30DD10KSA
Hood/Ventilation, Downdraft, 30 Inch
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI30DD10KSAHood/Ventilation, Downdraft, 30 Inch
2 diagrams18 parts
Parts Sections (2)
Diagram

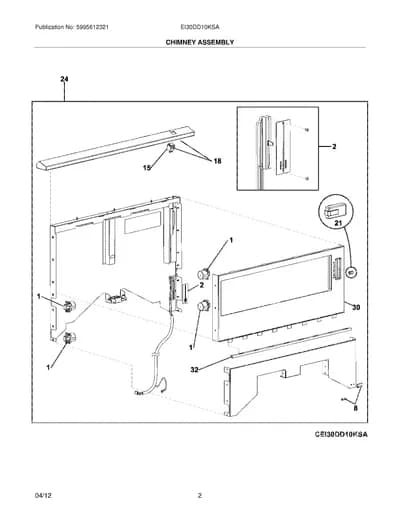

CHIMNEY ASSEMBLY
Parts in CHIMNEY ASSEMBLY
9 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304487428NLA Guide Assy,plunger ,w/spring | Discontinued |
| 2 | | 5304487429NLA SWITCH KIT, BLOWER, W/HARNESS, & SCREWS | Discontinued |
| 8 | | 5304487435NLA MAGNET KIT, REED, W/INSTRUCTIONS, & SCREWS | Discontinued |
| 15 | | SWITCH, LIFT | - |
| 18 | – | 5304487443 Trim Assy,top ,30`` ,w/switch | - |
| 21 | | KNOB, FAN CONTROL | - |
| 24 | | 5304501213replaces 5304487450 Chimney Assy,complete ,30`` | - |
| 30 | – | 5304487457 Panel,chimney ,30`` | - |
| 32 | – | 5304487459 Seal Kit,chimney ,30`` | - |
