Model
Electrolux EI30DS55JS1
Range/Oven, Dual Fuel, Slide-In, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI30DS55JS1Range/Oven, Dual Fuel, Slide-In, 30 Inch
5 diagrams196 parts
Parts Sections (5)
Diagram

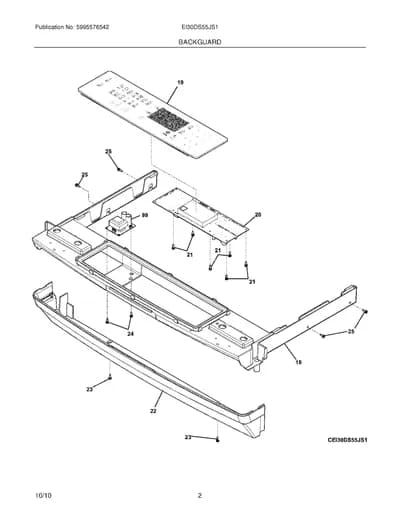

BACKGUARD
Parts in BACKGUARD
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 18 |  | Subframe,control | - |
| 19 | | Glass Assembly,control ,black ,w/interface | - |
| 20 | | 316576702NLA Controller,electronic ,ES631 | Discontinued |
| 21 |  | SCREW, CONTROL MTG, 6-32 X .25, (5) | - |
| 22 |  | PANEL, SERVICE, STAINLESS | $198.01 RepairClinic |
| 23 | | SCREW, SHOULDER, 8-18 X 1/2, (4) | - |
| 24 |  | Screw,8-32 x 0.437 ,(4) | $10.94 ApplianceParts Pro |
| 25 | | 3051009replaces 5303131801 SCREW (10 X 3/8) BURNER MOUNTING | - |
| 99 |  | BOARD, POWER SUPPLY, 8V | $204.86 Parts Dr |
| NI | | Harness,wiring ,power supply | - |
| NI | – | 318578307 Harness,wiring ,timer | - |
| NI | | Cleaner,stainless steel | - |
