Model
Electrolux EI30DS55LWB
Range/Oven, Dual Fuel, Slide-In, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI30DS55LWBRange/Oven, Dual Fuel, Slide-In, 30 Inch
4 diagrams161 parts
Parts Sections (4)
Diagram

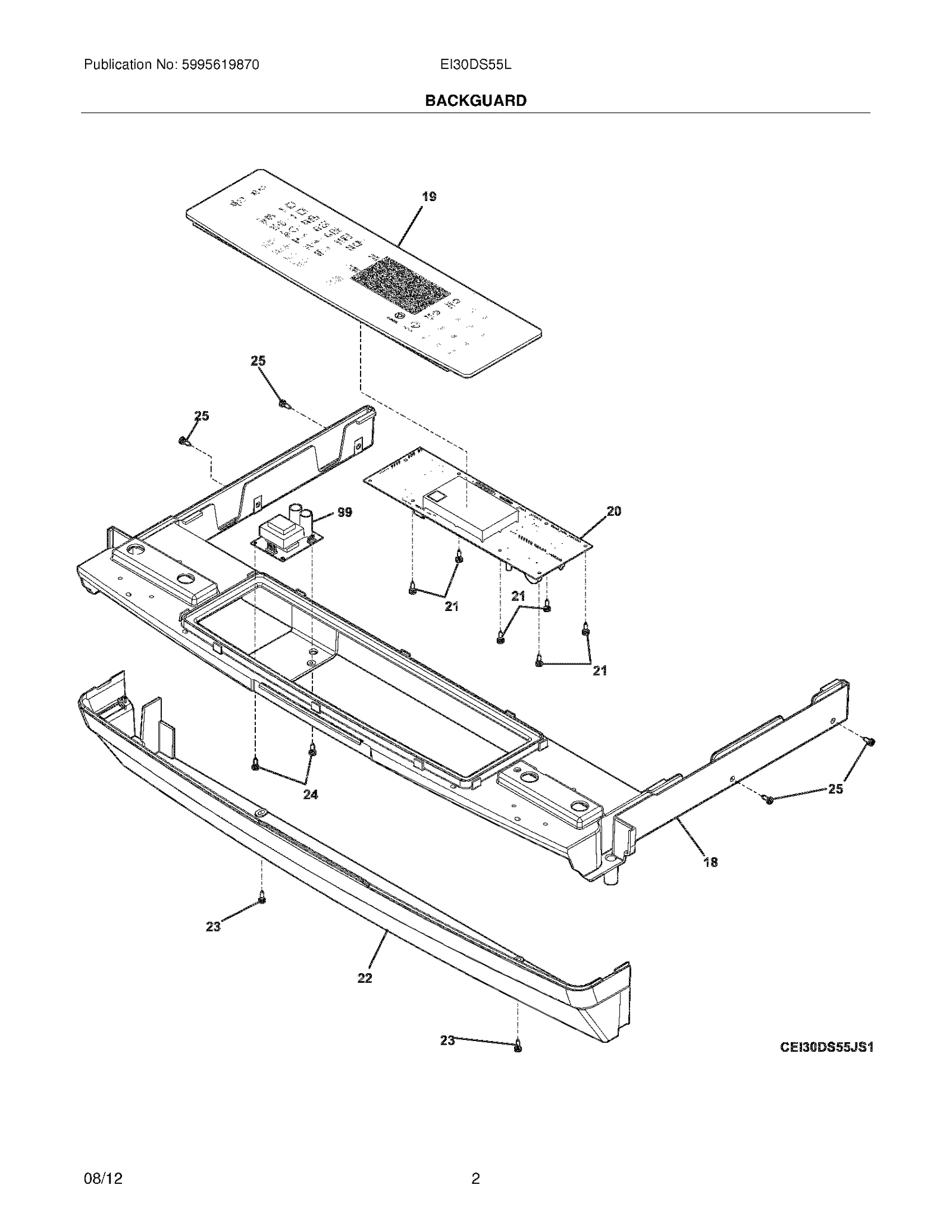

BACKGUARD
Parts in BACKGUARD
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 18 |  | Subframe,control | - |
| 19 | – | 318923501 Glass Assembly,control ,white ,w/interface | - |
| 20 | | 316576702NLA Controller,electronic ,ES631 | Discontinued |
| 21 |  | SCREW, CONTROL MTG, 6-32 X .25, (5) | - |
| 22 | | Panel,service ,white | - |
| 23 | | Screw,8-18 x 0.750 ,black | - |
| 24 |  | Screw,8-32 x 0.437 ,(4) | $10.94 ApplianceParts Pro |
| 25 | | 3051009replaces 5303131801 SCREW (10 X 3/8) BURNER MOUNTING | - |
| 99 |  | BOARD, POWER SUPPLY, 8V | $204.86 Parts Dr |
| NI | | Harness,wiring ,power supply | - |
| NI | | Harness,wiring ,timer | - |
