Model
Electrolux EI30EF35JSA
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI30EF35JSARange/Oven, Electric, Freestanding, 30 Inch
4 diagrams118 parts
Parts Sections (4)
Diagram

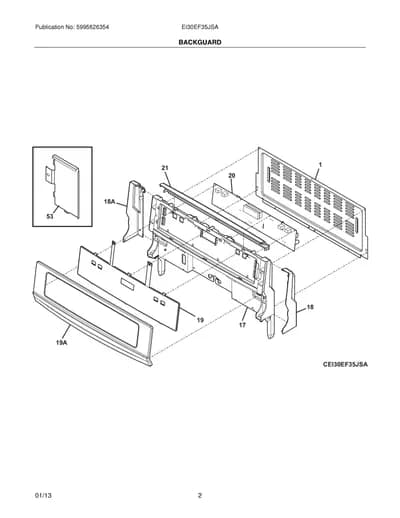

BACKGUARD
Parts in BACKGUARD
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | SHIELD, BACKGUARD, REAR WALL | - |
| 17 | | SUPPORT, BACKGUARD, BLACK | - |
| 18 | | CHANNEL, SUPPORT, BLACK, RH, BACKGUARD | - |
| 18A | | CHANNEL, SUPPORT, BLACK, LH, BACKGUARD | - |
| 19 |  | MEMBRANE ASSEMBLY, TOUCH, BLACK, W/MTG CHANNEL | - |
| 19A | | OVERLAY, BACKGUARD, STAINLESS | $158.95 ApplianceParts Pro |
| 20 |  | 316380089replaces 316380000 CONTROLLER, ELECTRONIC, ES1030 | - |
| 21 | | CAP, BACKGUARD (BLACK) (TOP) | - |
| 53 | | SHIELD, FLUE, INNER | - |
| NI |  | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
| NI | | SCREW, TRUSS HD, 8-16 X 1.5, (10) | - |
| NI | | HARNESS, WIRING, JUMPER | - |
| NI | | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
