Electrolux EI30EF45QSE
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI30EF45QSERange/Oven, Electric, Freestanding, 30 Inch
4 diagrams155 parts
Parts Sections (4)

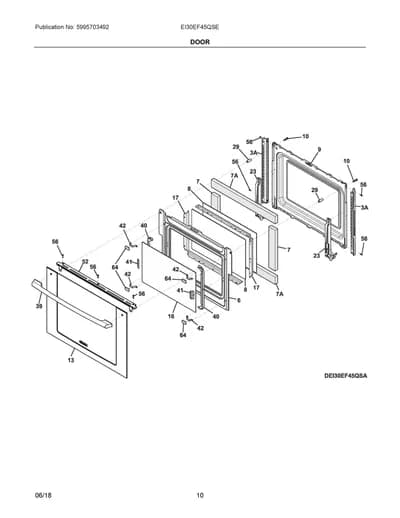

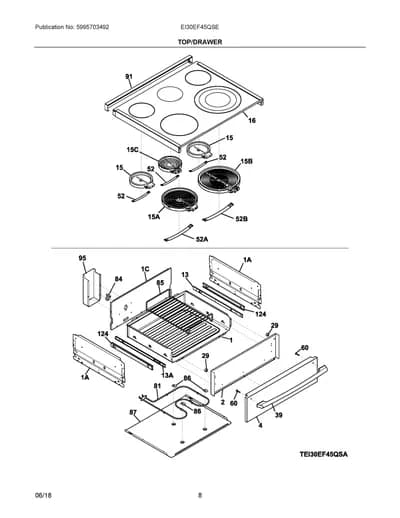

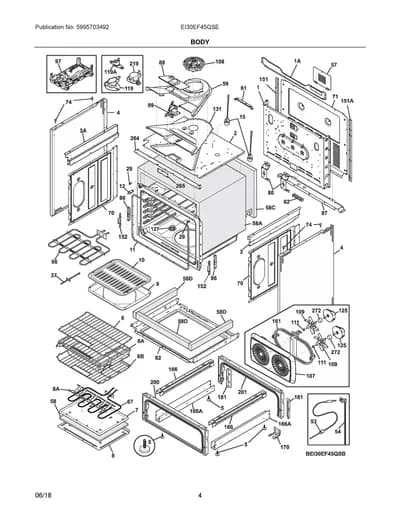

Diagram

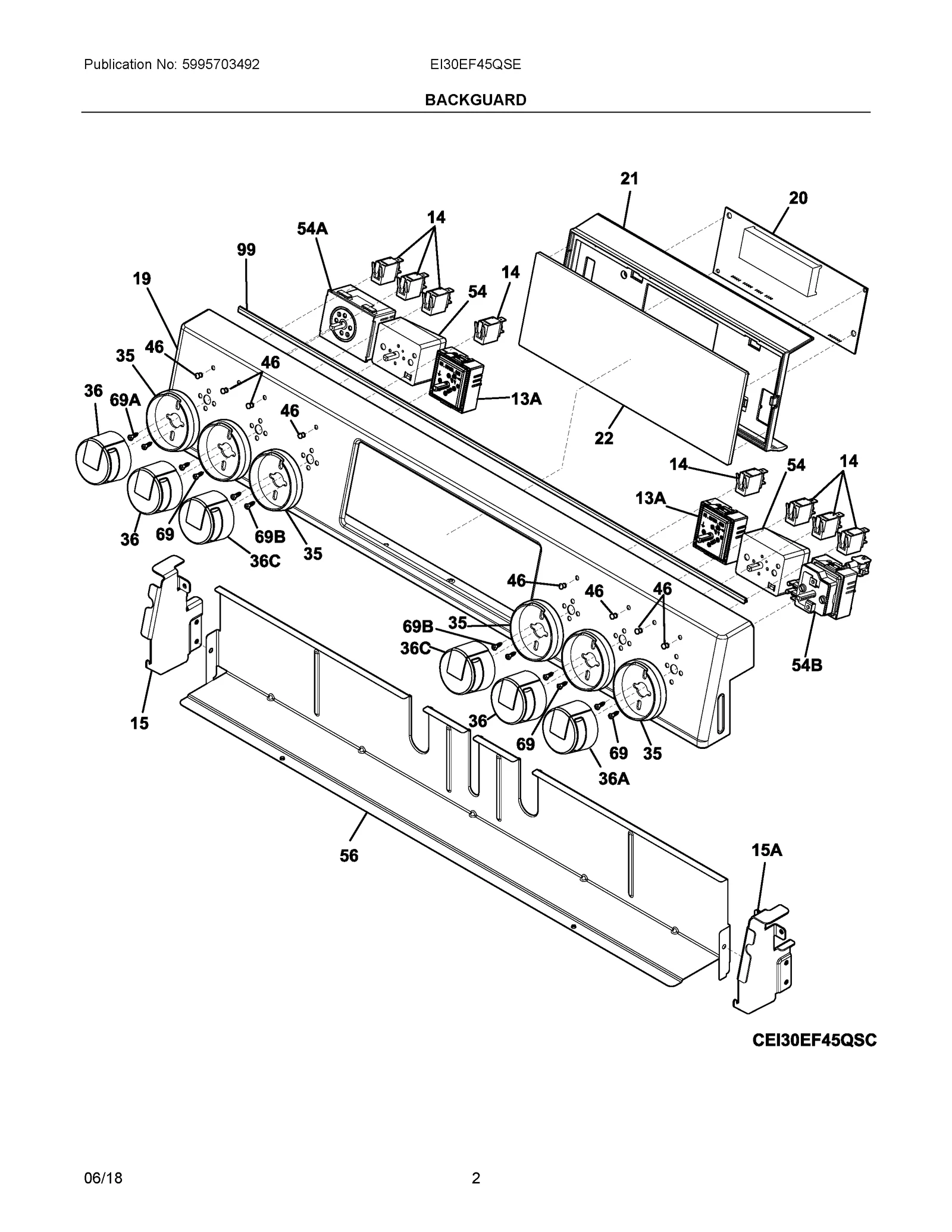

BACKGUARD
Parts in BACKGUARD
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 13A |  | Switch,infinite ,warmer | $45.53 Part Advantage |
| 14 |  | LIGHT/LAMP, INDICATOR, ORANGE | - |
| 15 | | BRACKET, SUPPORT, LH, CONTROL PANEL | - |
| 15A | | BRACKET, SUPPORT, RH, CONTROL PANEL | - |
| 19 | | CONTROL PANEL, STAINLESS | $351.78 ApplianceParts Pro |
| 20 |  | CONTROLLER, ELECTRONIC | - |
| 21 |  | BRACKET ASSEMBLY, PLASTIC, CONTROLLER | - |
| 22 |  | CONTROL PANEL, TOUCH, GLASS, BLACK | - |
| 35 | | BEZEL, KNOB | - |

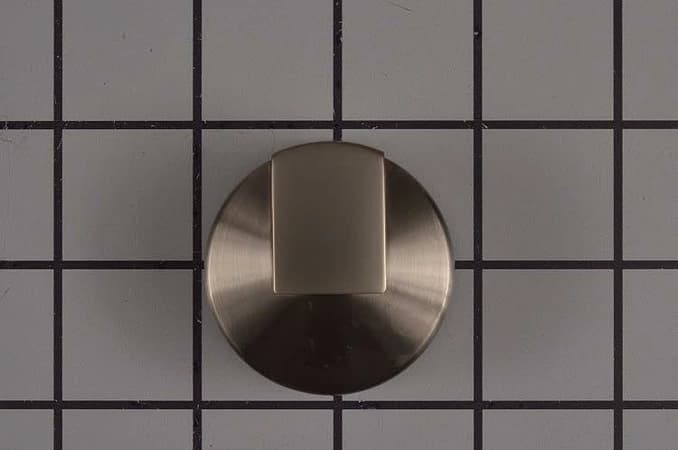

| 36 |  | KNOB, CONTROL, STAINLESS, SINGLE | - |
| 36A | | KNOB, CONTROL, STAINLESS, TRIPLE | - |
| 36C |  | KNOB, CONTROL, STAINLESS, WARM ZONE | $74.71 ApplianceParts Pro |
| 46 |  | Lens-light/lamp,indicator ,clear | $6.04 Part Advantage |
| 54 |  | Switch,infinite ,small element | $42.55 Part Advantage |
| 54A |  | SWITCH, INFINITE, TURBO FLEX | $65.31 Part Advantage |
| 54B |  | SWITCH, INFINITE, TRIPLE | $91.79 Parts Dr |
| 56 | | DEFLECTOR, CONTROL, FRONT | - |
| 69 |  | Screw,8-32 x 3/8`` ,(4) | $8.56 ApplianceParts Pro |
| 69A | | SCREW, TRUS HD NICKL, 8-32 X 1/4 | - |
| 69B |  | 5304462994replaces 5304401837 SCREW, 8-32 X 5/16 | - |
| 99 | | GASKET, COOKTOP, SILICONE, BLACK | - |
| NI | | 5304517735replaces 809127701 HARNESS, WIRING, COMMUNICATION | - |
| NI |  | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
| NI | | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NIA | | 5304520763replaces 809127801 HARNESS, WIRING, DISPLAY | $89.23 ApplianceParts Pro |
| NIA |  | Screw,8-18 X 1/2 | $8.60 Part Advantage |
| NIA | | WIRE, PILOT LIGHT, PURPLE, (3) | - |
| NIB | | SCREW, HINGE, 10-32 X 1/4", (4)^SCREW, HINGE, 10-32 X 1/4", (4) | - |
| NIB | | HARNESS, WIRING, PILOT LIGHT, (2), JUMPER | - |
