Model
Electrolux EI30EF55GSG
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI30EF55GSGRange/Oven, Electric, Freestanding, 30 Inch
4 diagrams146 parts
Parts Sections (4)
Diagram

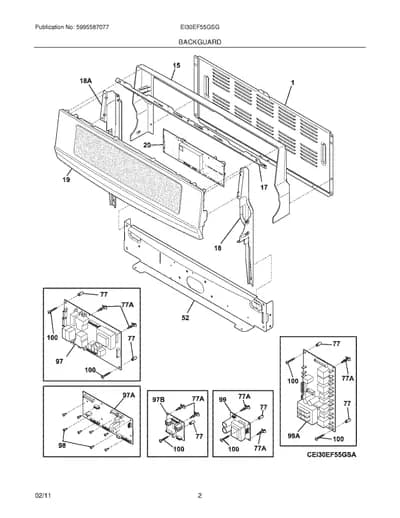

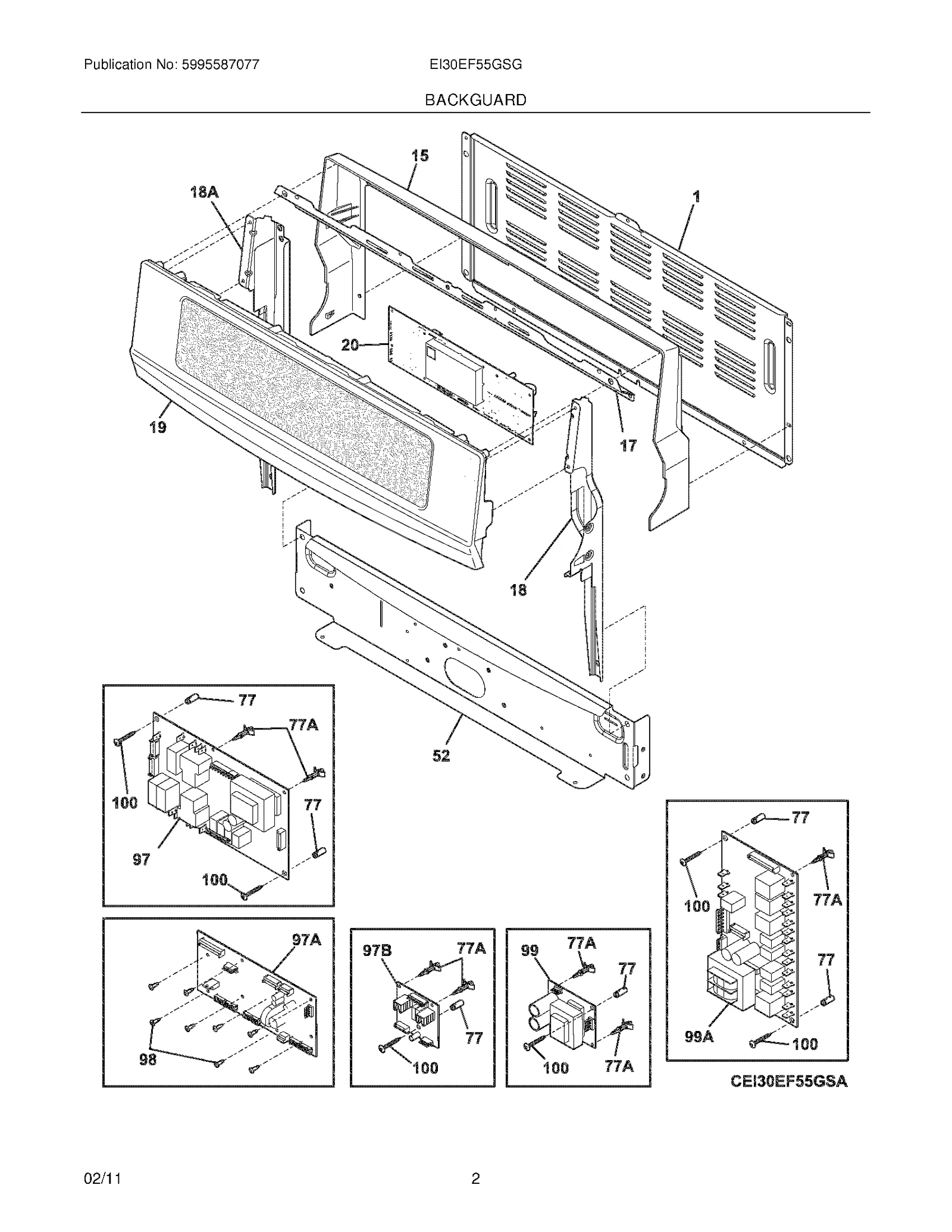

BACKGUARD
Parts in BACKGUARD
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | SHIELD, REAR WALL | - |
| 15 | | WRAPPER, BACKGUARD, BLACK | - |
| 17 | – | 316500301 SHIELD, UPPER, BACKGUARD | - |
| 18 | – | 316526000 CHANNEL, SUPPORT, RH, BACKGUARD | - |
| 18A | – | 316526001 CHANNEL, SUPPORT, LH, BACKGUARD | - |
| 19 | | Control Panel Assembly,user interface ,w/ss trim | - |
| 20 | | 316576601NLA Controller,electronic ,ES630B | Discontinued |
| 52 | – | 316509805 SHIELD, BACKGUARD, BLACK, INNER | - |
| 77 |  | Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | Spacer | $44.95 ApplianceParts Pro |
| 97 |  | BOARD, RELAY, OVEN CONTROL | $238.15 Parts Dr |
| 97A | | 316576413NLA Board,power ,UIB | Discontinued |
| 97B |  | BOARD, VARIABLE SPEED, TRIAC | $152.44 Parts Dr |
| 98 | | SCREW, TRUSS HD, 8-16 X 1.5, (10) | - |
| 99 |  | BOARD, POWER SUPPLY, 8V, (2) | $213.54 Parts Dr |
| 99A |  | Board,power ,relay | $183.57 RepairClinic |
| 100 |  | Screw,truss sqdr ,8A x 1" ,62*^Screw,truss sqdr ,8A x 1" ,62* | $2.24 RepairClinic |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI | | 316525601NLA Harness,wiring ,control to ,relay board | Discontinued |
| NI | | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
| NI |  | SCREW, CONTROL MTG, 6-32 X .25, (5) | - |
| NI | | Harness,wiring ,relay board to ,user interface | - |
| NI | – | 316525500 SCREW, BLUNT PNT PH B, 8-18 X .875, (2) | - |
