Model
Electrolux EI30EW38TSA
Wall Oven, Electric, Single, 30 Inch
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI30EW38TSAWall Oven, Electric, Single, 30 Inch
3 diagrams98 parts
Parts Sections (3)
Diagram

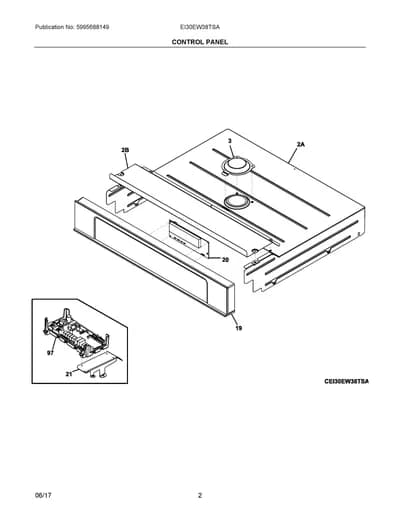

CONTROL PANEL
Parts in CONTROL PANEL
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2A |  | SHIELD, WIRE, TOP | - |
| 2B | | 5304520853replaces 808651501 COVER, CONTROL ACCESS | - |
| 3 | | SHIELD, SENSOR, HALL EFFECT | - |
| 19 | | CONTROL PANEL, ASSEMBLY, GLASS, BLACK/STAINLESS, W/TRIM-FRAME | - |

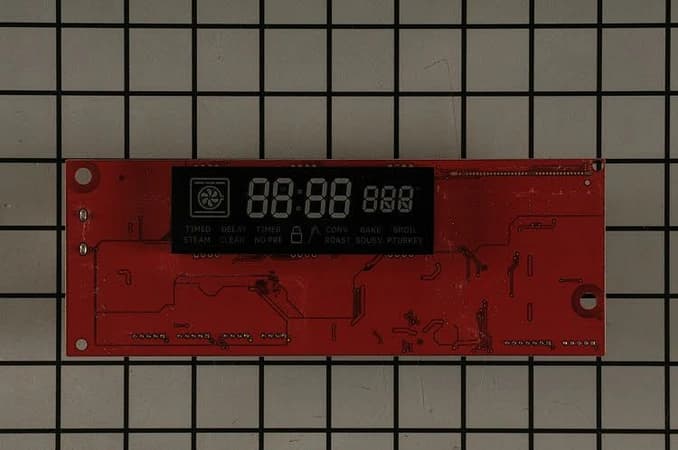

| 20 |  | CONTROLLER, ELECTRONIC, MARS | $140.75 RepairClinic |
| 21 |  | 5304520558replaces 808931301 BRACKET, OVC SUPPORT | - |
| 97 |  | Circuit Board,assembly ,OVC1 ,w/housing | $207.01 Parts Dr |
| NI |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| NI | | 5304514831replaces 5304501007 HARNESS, GROUNDING WIRE | - |
| NI | | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI |  | 5304514832replaces 5304500623 HARNESS, WIRING, HALL EFFECT, UPPER OVEN | $19.14 RepairClinic |
| NI | | HARNESS, WIRING, COMMUNICATION, OVC1 TO OVC2 | $30.45 ApplianceParts Pro |
| NIA |  | SCREW, CONTROL MTG, 6-32 X .25, (5) | - |
| NIA |  | Screw,8 X 0.750 | - |
