Model
Electrolux EI30EW45JS2
Wall Oven, Electric, Double, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI30EW45JS2Wall Oven, Electric, Double, 30 Inch
4 diagrams124 parts
Parts Sections (4)
Diagram

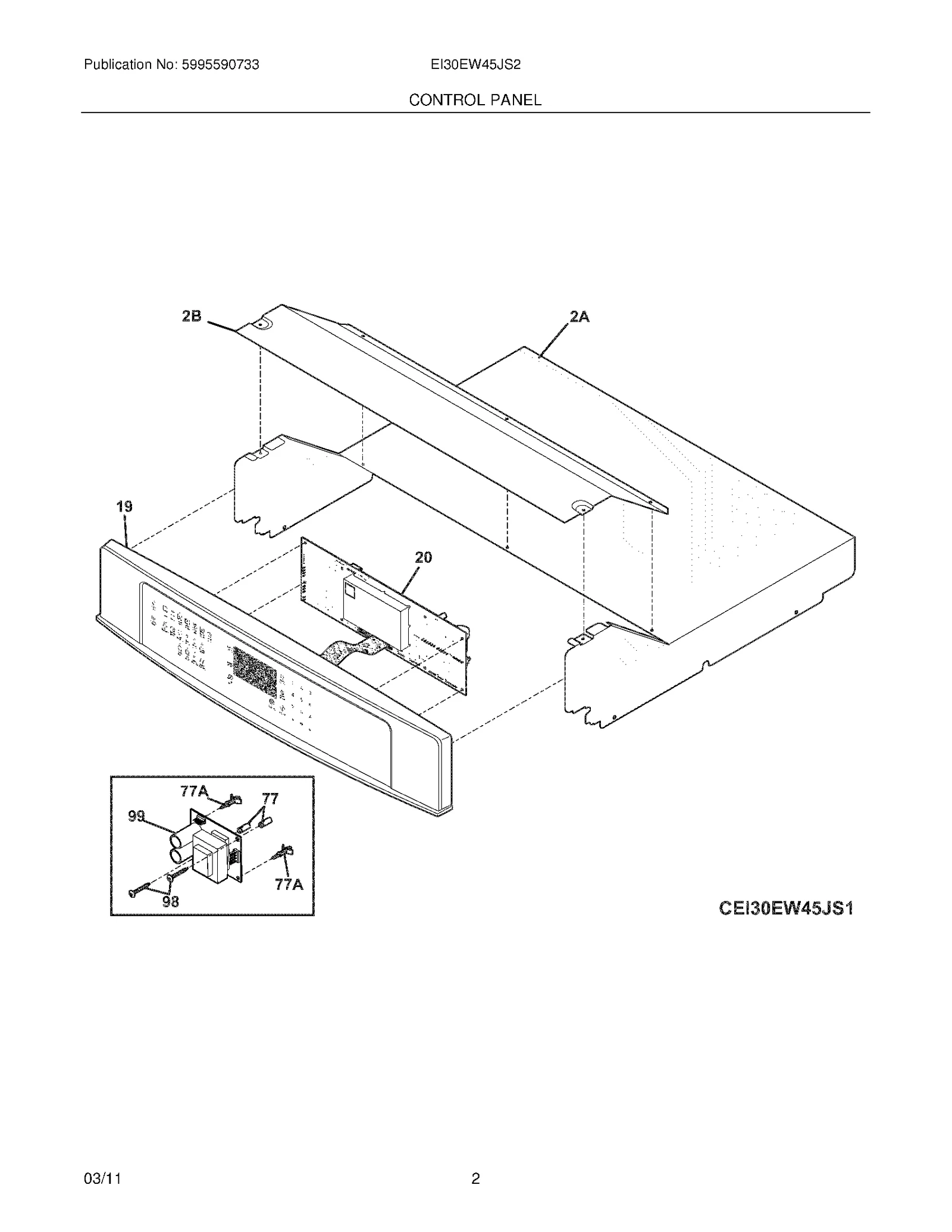

CONTROL PANEL
Parts in CONTROL PANEL
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2A |  | Shield,oven top | - |
| 2B |  | Cover,box | - |
| 19 |  | Control Panel Assy.,glass ,black/stainless,w/membrane | - |
| 20 | | Controller,electronic ,ES630 | - |
| 77 |  | Spacer,control ,(4) | - |
| 77A |  | Spacer | $44.95 ApplianceParts Pro |
| 98 |  | SCREW, 6-20 X 1 1/4 | $5.62 RepairClinic |
| 99 |  | BOARD, POWER SUPPLY, 8V | $204.86 Parts Dr |
| NI |  | SCREW, CONTROL MTG, 6-32 X .25, (5) | - |
| NI | – | 318572745 Harness,wiring ,timer | - |
| NI | – | 318572746 Harness,wiring ,relay board ,cntl to relay | - |
| NI |  | SCREW, 8-18 X 1/2, BLACK, (3) | $7.79 Part Advantage |
| NI |  | 131243700replaces 5304454881 Screw,No.8-18 x 3/8 ,(24) | $1.96 Part Advantage |
