Model
Electrolux EI30GF35JSA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI30GF35JSARange/Oven, Gas, Freestanding, 30 Inch
5 diagrams165 parts
Parts Sections (5)
Diagram

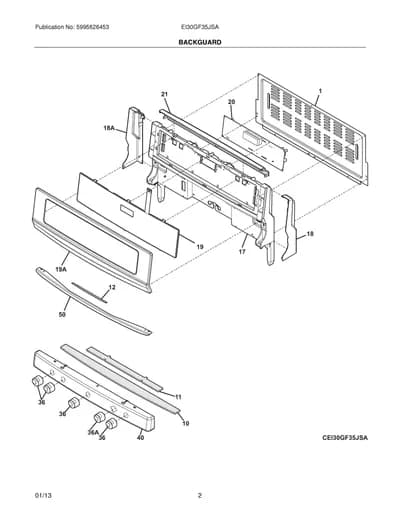

BACKGUARD
Parts in BACKGUARD
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | SHIELD, BACKGUARD, REAR WALL | - |
| 10 |  | Insulation,manifold panel | - |
| 11 | | INSULATION, FRONT FRAME | - |
| 12 | | INSUALTION, DEFLECTOR | - |
| 17 | | SUPPORT, BACKGUARD, BLACK | - |
| 18 | | CHANNEL, SUPPORT, BLACK, RH, BACKGUARD | - |
| 18A | | CHANNEL, SUPPORT, BLACK, LH, BACKGUARD | - |
| 19 |  | MEMBRANE ASSEMBLY, TOUCH, BLACK, W/MTG CHANNEL | $310.55 ApplianceParts Pro |
| 19A | | OVERLAY, BACKGUARD, STAINLESS | $158.95 ApplianceParts Pro |
| 20 |  | 316381802replaces 316381800 Clock/Timer,electronic ,ES1030 | $206.53 RepairClinic |
| 21 | | CAP, BACKGUARD (BLACK) (TOP) | - |
| 36 | | KNOB, TOP VALVE, STAINLESS, (4) | Discontinued |
| 36A |  | Knob,top valve ,stainless ,(4) | $106.91 PartSelect |
| 40 | | PANEL, MANIFOLD (STAINLESS) | - |
| 50 | – | 316381701 DEFLECTOR, HEAT SHIELD, INNER | - |
| NI | | SCREW, TRUSS HD, 8-16 X 1.5, (10) | - |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI | | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
