Model
Electrolux EI30GF55GSE
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI30GF55GSERange/Oven, Gas, Freestanding, 30 Inch
5 diagrams196 parts
Parts Sections (5)
Diagram

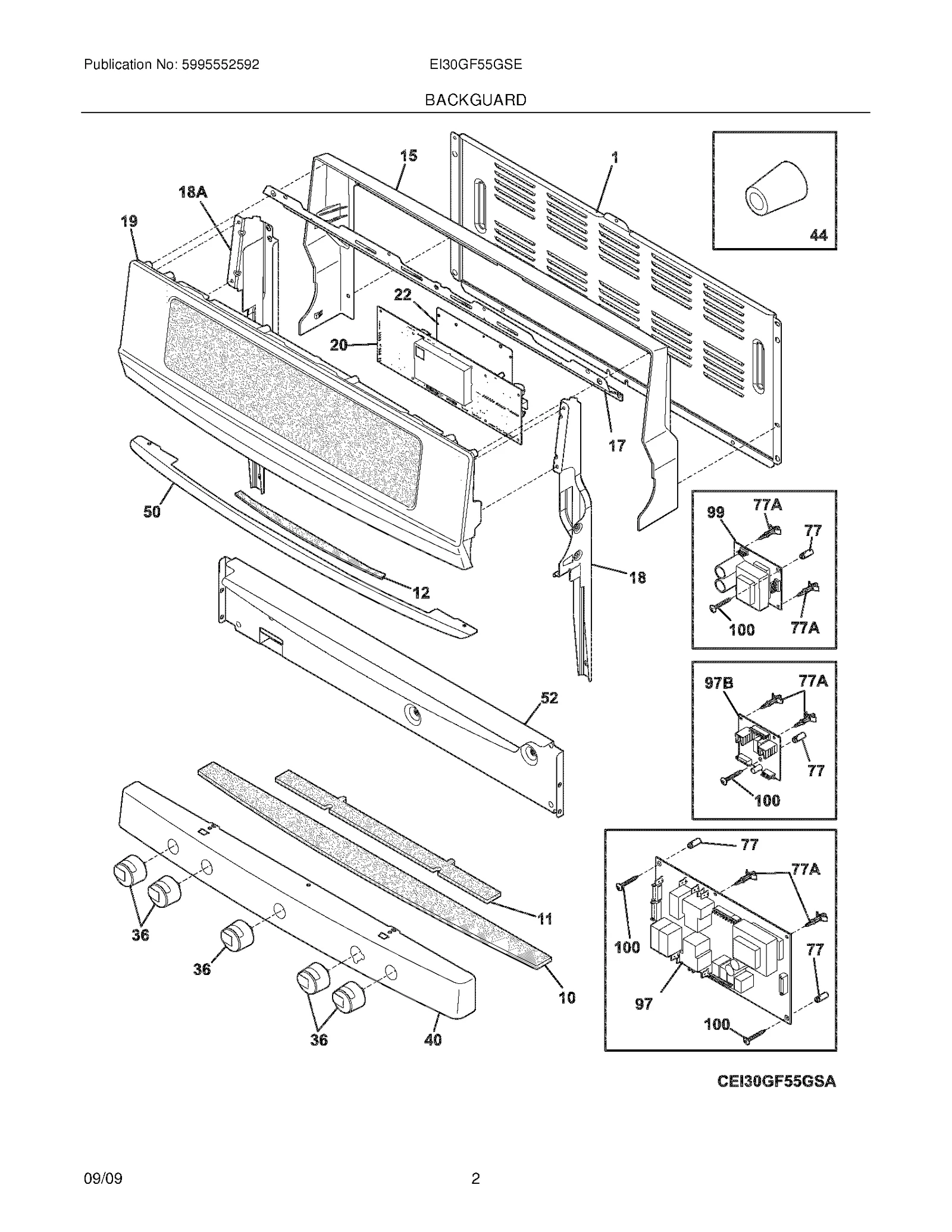

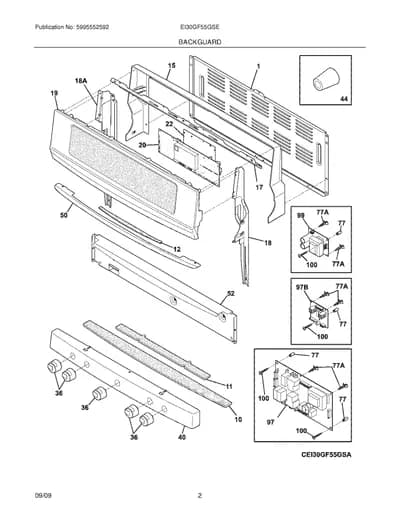

BACKGUARD
Parts in BACKGUARD
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 316500100replaces 7316500100 Shield,rear wall | - |
| 10 |  | 316528700replaces 7316528700 Insulation,manifold panel | - |
| 11 | | 316528800replaces 7316528800 Insulation,front frame | - |
| 12 | | Insualtion,deflector | - |
| 15 | – | 7316500401 Wrapper,backguard ,black | - |
| 17 | – | 7316500301 Shield,upper ,backguard | - |
| 18 | – | 7316526000 Channel,support ,RH ,backguard | - |
| 18A | – | 7316526001 Channel,support ,LH ,backguard | - |
| 19 | | 316538417replaces 7316538417 Control Panel Assembly,user interface ,w/ss trim | - |
| 20 |  | 316576603replaces 7316516516 Controller,electronic ,ES630B | - |
| 22 | | 316520300replaces 7316520300 Bracket,control mtg. | - |
| 36 |  | 316535702replaces 7316535702 Knob,top valve ,stainless ,(4) | $106.91 PartSelect |
| 40 | | 316512707replaces 7316512702 Panel,manifold ,stainless | - |
| 44 | | 316246500replaces 7316246500 Spacer,oven | - |
| 50 | | 316537601replaces 7316537601 Deflector,heat shield ,stainless | - |
| 52 | – | 7316514201 Shield,backguard ,black ,inner | - |
| 77 |  | 316247900replaces 7316247900 Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | 316114100replaces 7316114100 Spacer,(4) | $44.95 ApplianceParts Pro |
| 97 |  | 316443921replaces 7316443921 Board,relay | - |
| 97B |  | 316519200replaces 7316519200 Board,relay ,convection | $152.44 Parts Dr |
| 99 |  | 316535200replaces 7316535200 Board,power supply ,8V ,(2) | $213.54 Parts Dr |
| 100 |  | 5303289910replaces 75303289910 Screw,8A ,1`` ,(7) ,power board mtg | $2.24 RepairClinic |
| NI |  | 131892100replaces 7316524400 Screw,control mtg ,6-32 x .25 ,(5) | $7.49 ApplianceParts Pro |
| NI | | 316525600replaces 7316525600 Harness,wiring ,backguard | $63.64 PartSelect |
| NI |  | 131243700replaces 7316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| NI |  | 316021109replaces 7316021109 Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
| NI |  | 316089500replaces 7316089500 Screw,10-16 x .486 | $7.79 Part Advantage |
| NI | – | 7316525500 Screw,blunt pnt ph B ,8-18 x .875 ,(2) | - |
| NI | | 316533900replaces 7316533900 Screw,truss hd ,8-16 x 1.5 ,(10) | - |
