Model
Electrolux EI32AR65JS1
Refrigerator, Upright
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI32AR65JS1Refrigerator, Upright
3 diagrams125 parts
Parts Sections (3)
Diagram

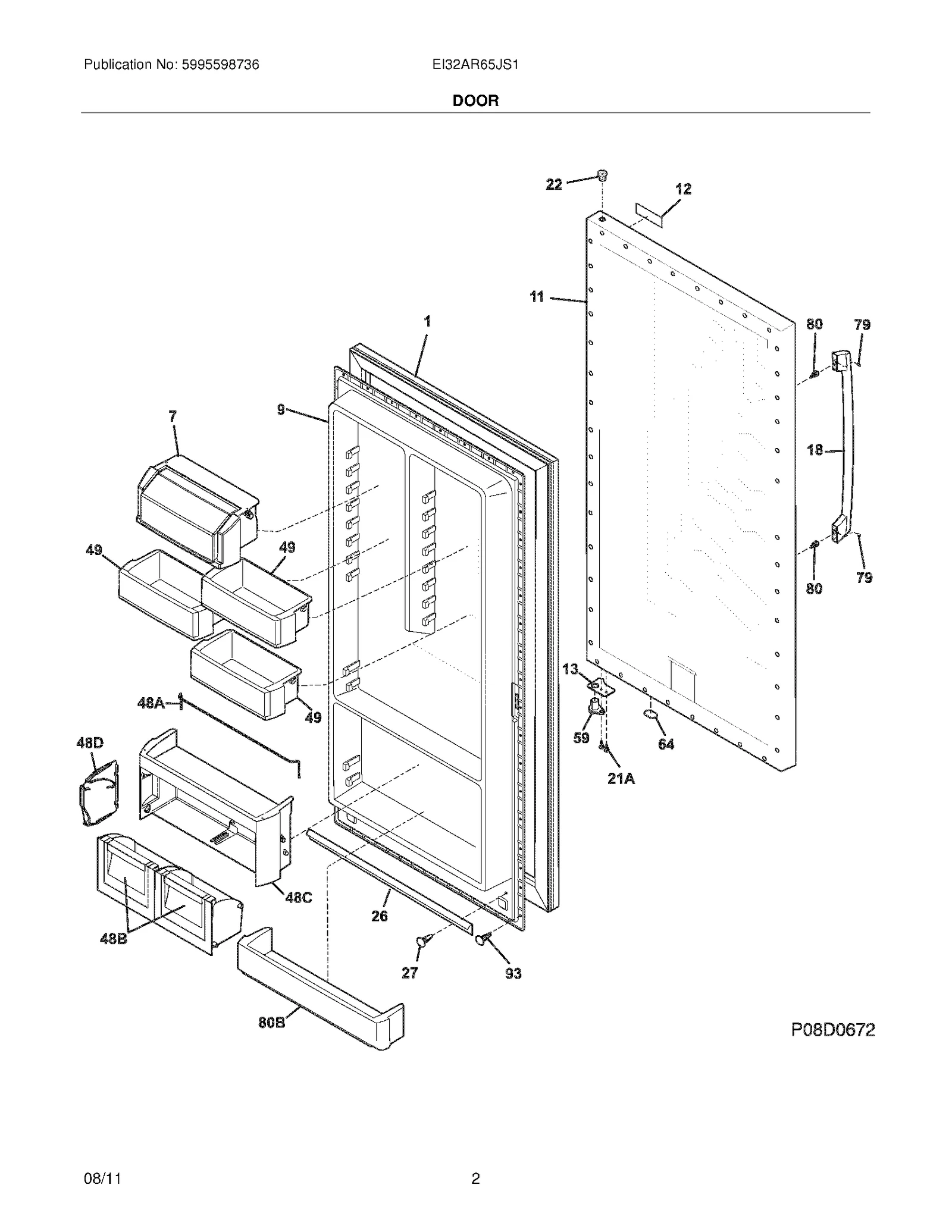

DOOR
Parts in DOOR
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304505782replaces 216522370 GASKET-DOOR, GRAY | $109.02 Part Advantage |
| 7 |  | 297326200NLA DAIRY BIN, ASSEMBLY | Discontinued |
| 9 |  | PANEL-INNER DOOR, FRZR | $141.55 PartSelect |
| 11 | | Panel-outer door,stainless | Discontinued |
| 12 |  | Nameplate,Electrolux ,stainless | $4.51 Parts Dr |
| 13 | | 297302800NLA DOOR STOP, RH | Discontinued |
| 18 |  | Handle-door,stainless | $151.70 Parts Dr |
| 21A |  | Screw,door stop mtg ,FH38-16X.750 ,P Twin | $11.45 ApplianceParts Pro |
| 22 |  | 216970802replaces 216970801 BEARING, HINGE, GRAY, TOP | $6.15 Part Advantage |
| 26 |  | GASKET, SECONDARY | $33.73 Parts Dr |
| 27 |  | CLIP, PANEL MTG | $6.54 Part Advantage |
| 48A | | Wire | - |
| 48B | | 297261600NLA BIN-DOOR, TILT OUT | Discontinued |

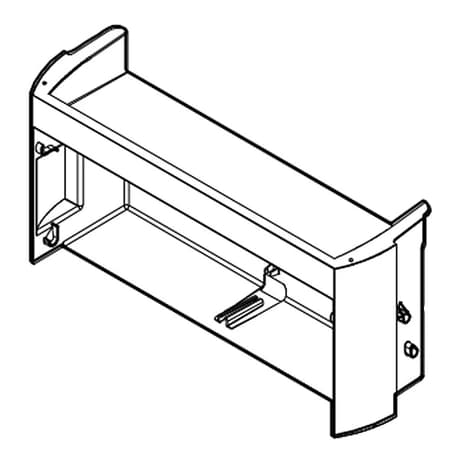

| 48C |  | SHELF-DOOR, GALLON | - |
| 48D | | Divider | - |
| 49 |  | Bin-door,2-liter ,(4) | $60.47 Parts Dr |
| 59 | | 297302900NLA BEARING, DOOR STOP | Discontinued |
| 64 | | 216403700replaces 216403701 PLUG-BUTTON, HOLE FILLER, DOOR BASE | $44.65 ApplianceParts Pro |
| 79 |  | Screw-set,10-32 x 0.375 | $13.53 Part Advantage |
| 80 |  | Screw,shoulder ,#10-AB ,handle mounting | $7.79 Part Advantage |
| 80B | | 297292500NLA SHELF, CONDIMENT | Discontinued |
| 93 |  | Screw,pan head ,8-18 x 0.625 | $9.03 Part Advantage |
| NI |  | Clip,panel mtg kit ,(40) | $71.47 Part Advantage |
| NI | – | 297333510 TRIM KIT, BUILT IN, SINGLE, COMPLETE (TRIMKITSS1) | - |
| NI |  | WRENCH, ALLEN | Discontinued |
| NI | – | 297355300 LABEL, QUICK START | - |
| NI |  | Nut-anchor,door hdl screw | $10.56 ApplianceParts Pro |
| NI | – | 297333610 TRIM KIT, BUILT IN, DUAL, COMPLETE (TRIMKITSS2) | - |
