Model
Electrolux EI36DD10KSA
Hood/Ventilation, Downdraft, 36 Inch
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EI36DD10KSAHood/Ventilation, Downdraft, 36 Inch
2 diagrams18 parts
Parts Sections (2)
Diagram

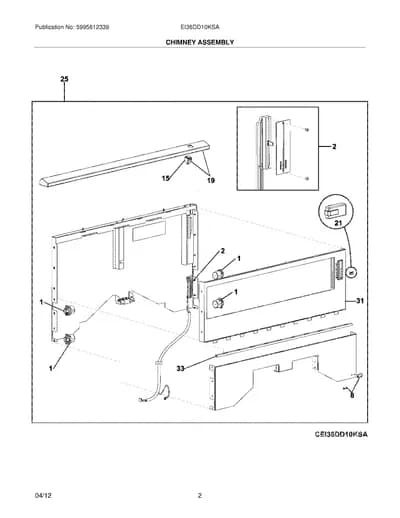

CHIMNEY ASSEMBLY
Parts in CHIMNEY ASSEMBLY
9 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304487428NLA Guide Assy,plunger ,w/spring | Discontinued |
| 2 | | 5304487429NLA SWITCH KIT, BLOWER, W/HARNESS, & SCREWS | Discontinued |
| 8 | | 5304487435NLA MAGNET KIT, REED, W/INSTRUCTIONS, & SCREWS | Discontinued |
| 15 | | SWITCH, LIFT | - |
| 19 | | Trim Assy,top ,36`` ,w/switch | - |
| 21 | | KNOB, FAN CONTROL | - |
| 25 | | 5304501214replaces 5304487451 Chimney Assy,complete ,36`` | - |
| 31 | – | 5304487458 Panel,chimney ,36`` | - |
| 33 | | Seal Kit,chimney ,36`` | - |
