Model
Electrolux EILFU21GS2
Freezer, Upright, W/Ice Maker
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EILFU21GS2Freezer, Upright, W/Ice Maker
4 diagrams150 parts
Parts Sections (4)
Diagram

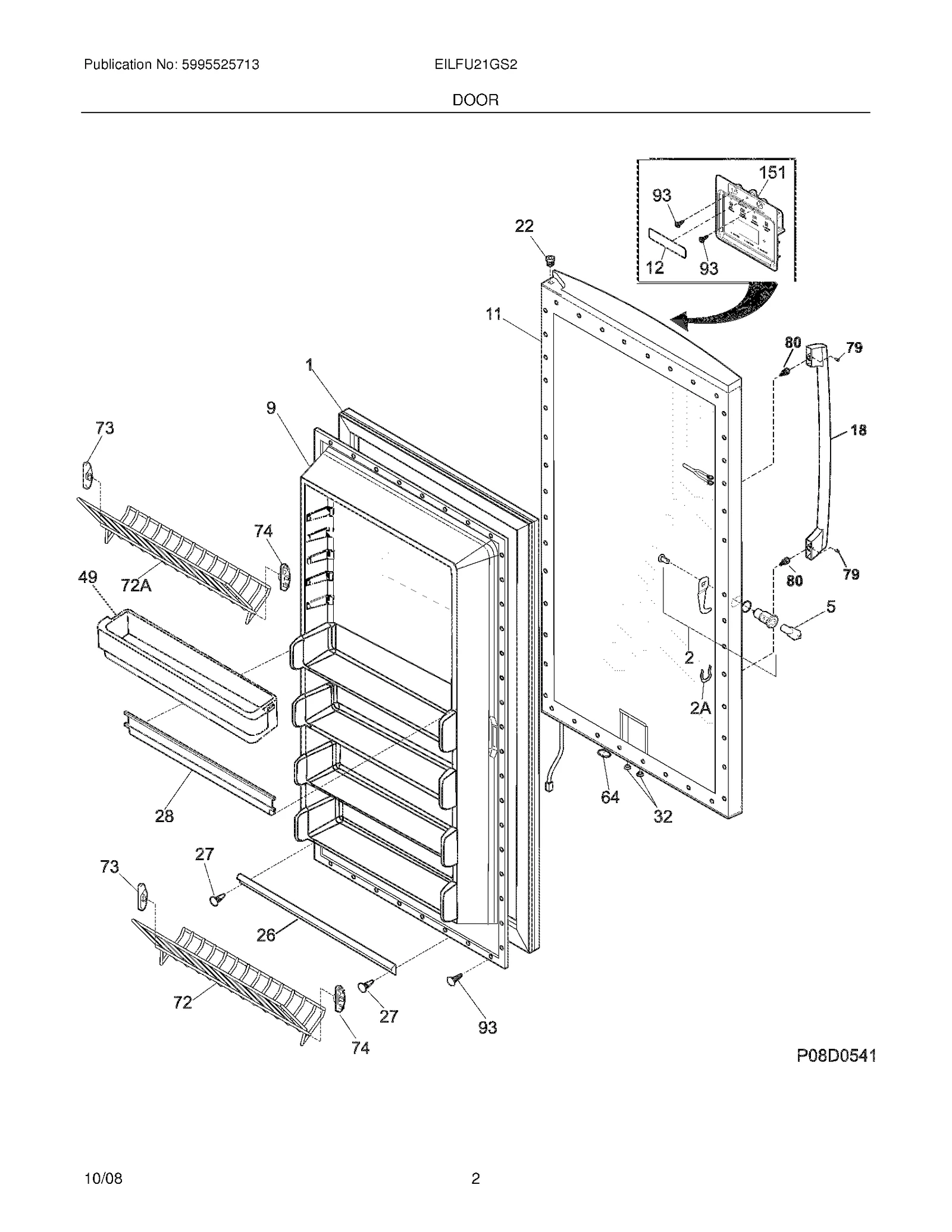

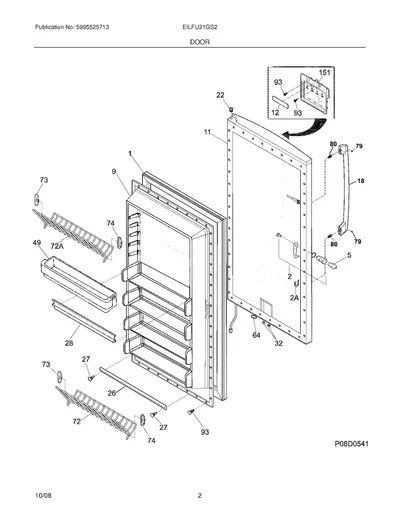

DOOR
Parts in DOOR
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304507205replaces 7216522317 Gasket,black ,door | $106.56 Parts Dr |
| 2 |  | 297318600replaces 7297090000 Lock Assy | - |
| 2A |  | 297090900replaces 7297090900 Clip,SPRING | $4.23 RepairClinic |
| 5 |  | 297147700replaces 7297147700 Key,lock | $4.28 Part Advantage |
| 9 | – | 7216528201 Panel-inner door,frzr | - |
| 11 | | 297317300replaces 7297203900 Panel-outer door,stainless steel | - |
| 12 |  | 241873301replaces 7241873301 Nameplate,Electrolux ,stainless | $4.51 Parts Dr |
| 18 | – | 7241761010 Handle | - |
| 22 |  | 216970802replaces 7216970800 Bearing,hinge w/o`ring ,top | $6.15 Part Advantage |
| 26 |  | 216524201replaces 7216524200 Gasket,secondary | $33.73 Parts Dr |
| 27 |  | 5303922007replaces 75303212828 Clip,panel mtg | $45.89 Parts Dr |
| 28 | – | 7216806103 Rack-door,contour | - |
| 32 | – | 75309950074 Valve,breather | - |
| 49 | – | 7216514300 Bin-door,adjustable ,(2) | - |
| 64 | | 216403700replaces 7216403700 Plug-button,hole filler ,door base | $44.65 ApplianceParts Pro |
| 72 | – | 7297154900 Shelf,tilt out ,wire ,tall | - |
| 72A | – | 7297155000 Shelf,tilt out ,wire ,(2) ,short | - |
| 73 |  | 216513900replaces 7216513900 End Cap,shelf ,LH ,(2) ,tilt-out | $50.56 PartSelect |
| 74 |  | 216514000replaces 7216514000 End Cap,shelf ,RH ,(2) ,tilt-out | - |
| 79 |  | 218755401replaces 7218755401 Screw-set,10-32 x 0.375 | $13.53 Part Advantage |
| 80 |  | 218755504replaces 7218755504 Screw-shoulder,No.10 AB ,handle mounting | $7.79 Part Advantage |
| 93 |  | 216858001replaces 5304460605 Screw,ph truss head ,8-18AB x 0.500 | $9.94 ApplianceParts Pro |
| 151 | | 297166401replaces 7297166401 Electronic control,assy | - |
| NI |  | 297048000replaces 7297048000 Screw,anchor ,No.8 ,white | $10.39 ApplianceParts Pro |
| NI |  | 5304406520replaces 75304406520 Clip,panel mtg kit ,(40) | $71.47 Part Advantage |
| NI |  | 240537301replaces 7240537301 Nut-anchor,door hdl screw | $10.56 ApplianceParts Pro |
| NI |  | 216905301replaces 7216905301 Screw,PH 3-24X.25 ,electronic assy | - |
