Model
Electrolux EPWD15T0
Laundry Accessory, Pedestal
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EPWD15T0Laundry Accessory, Pedestal
1 diagram24 parts
Parts Sections (1)
Diagram

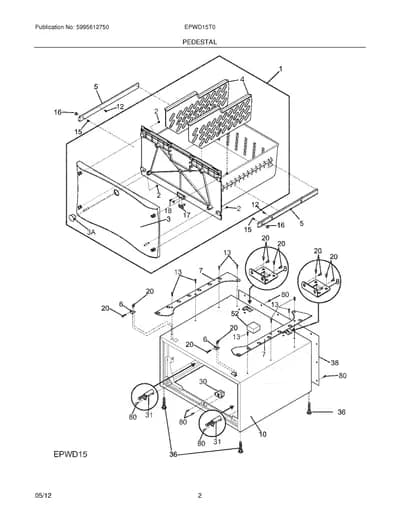

PEDESTAL
Parts in PEDESTAL
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Drawer,pedestal ,titanium ,includes 3,4 | - |
| 2 |  | Screw,pan head ,8-18B x 0.31 | $8.19 Part Advantage |
| 3 | | Panel,front ,titanium ,drawer | - |
| 3A | | 134998500NLA BUTTON, DRAWER FRONT | Discontinued |
| 4 | | 134442340NLA DIVIDER, DRAWER, INNER | Discontinued |
| 5 | | SLIDE, DRAWER TRACK | - |
| 6 |  | 5304523385replaces 134830300 BRACKET, MOUNTING, FRONT | $14.17 Part Advantage |
| 7 | | Spacer,gray | - |
| 8 | | 5304523385replaces 134816300 BRACKET, MOUNTING, REAR | $14.17 Part Advantage |
| 10 | – | 137006135 CABINET, PEDESTAL, TITANIUM | - |
| 12 |  | 5308014215replaces 134477400 Screw,sheet metal ,6-20 x 0.375 ,(2) | $1.22 Part Advantage |
| 13 |  | SCREW, 10-16 X 0.750 | $2.86 Part Advantage |
| 15 |  | SCREW, MACHINE, 6-32 X 0.625, (2) | $8.19 Part Advantage |
| 16 |  | NUT, LOCKING, 6-32, (2), NYLON INSERT | $7.04 RepairClinic |
| 17 |  | STRIKE, DRAWER | $8.60 Part Advantage |
| 18 |  | SCREW, QUAD PAN HEAD, 10-16 X 0.312 | $4.16 Parts Dr |
| 20 |  | SCREW, 10-16 X 0.500, (28) | $6.97 Part Advantage |
| 30 |  | LATCH, DRAWER | $53.15 Part Advantage |
| 31 | | 137006500NLA ACTUATOR, DRAWER | Discontinued |
| 36 |  | LEVELING LEG ASSY, BOLT, PAD & NUT | $16.82 Part Advantage |
| 38 | | PANEL, BACK | - |
| 52 |  | Dampener,vibration ,foam | $10.94 Parts Dr |
| 80 | | 131168200replaces 134547800 SCREW, 10-16AB X 0.375 | $8.19 Part Advantage |
| NI | | 5304523385replaces 137335500 INSTALLATION KIT, MTG HARDWARE | $14.17 Part Advantage |
