Model
Electrolux EPWD15TS1
Laundry Accessory, Pedestal
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EPWD15TS1Laundry Accessory, Pedestal
1 diagram22 parts
Parts Sections (1)

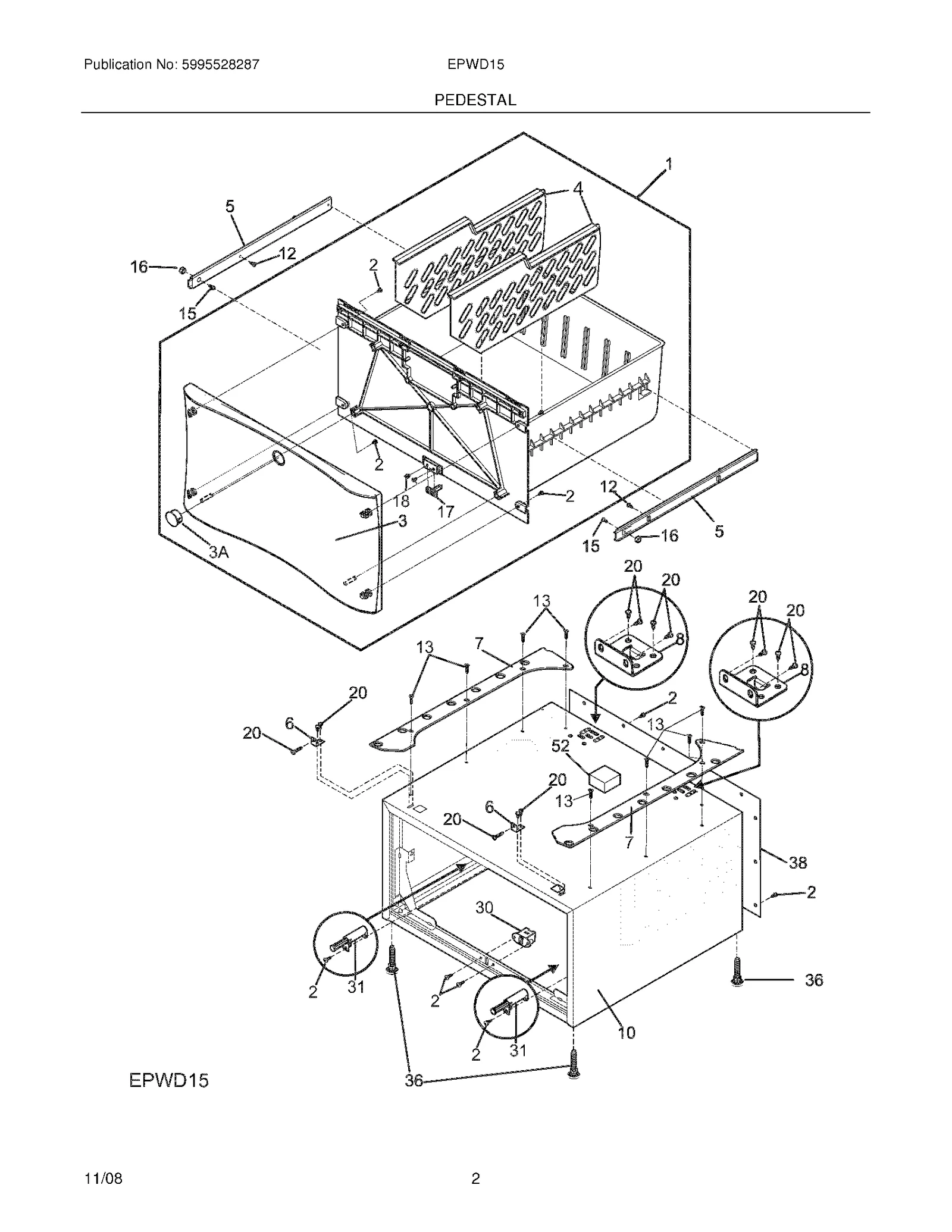

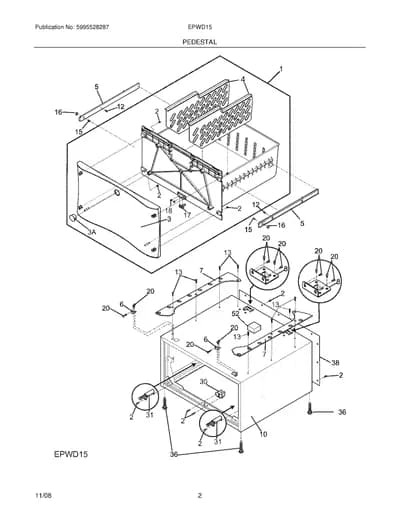

Diagram
PEDESTAL
Parts in PEDESTAL
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 7134862420 Drawer,pedestal ,turquoise | - |
| 2 |  | 131168200replaces 7131168200 Screw,pan head ,8-18B x 0.31 | $8.19 Part Advantage |
| 3 | – | 7134990520 Panel,drawer ,turquoise ,front | - |
| 3A |  | Button,drawer front | - |
| 4 | | 7134442340NLA Divider,drawer ,inner | Discontinued |

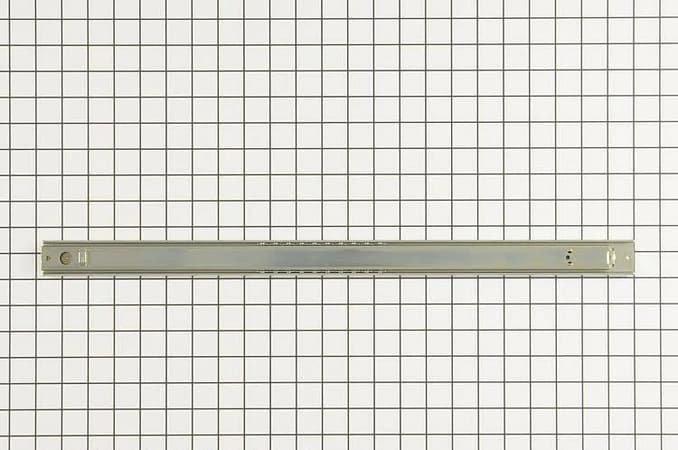

| 5 |  | 134443700replaces 7134443700 Slide,drawer track ,(2) | $89.07 Parts Dr |
| 6 |  | 134830200replaces 7134830200 Bracket,front | - |
| 7 | – | 7134840540 Spacer,gray | - |
| 8 | – | 7134830000 Bracket,rear | - |
| 10 | – | 7134797120 Cabinet,pedestal ,turquoise | - |
| 12 |  | 5308014215replaces 7134477400 Screw,sheet metal ,6-20 x 0.375 ,(2) | $1.22 Part Advantage |
| 13 |  | 131302901replaces 7131302901 Screw,10-16 x 0.750 | $2.86 Part Advantage |
| 15 |  | 134509900replaces 7134509900 Screw,machine ,6-32 x 0.625 ,(2) | $8.19 Part Advantage |

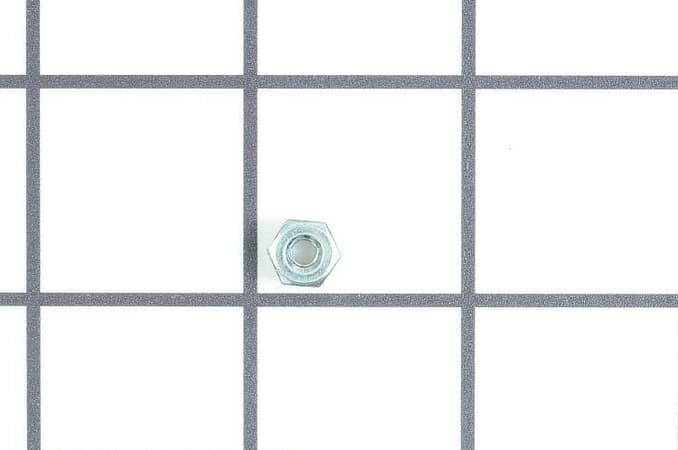

| 16 |  | 134510400replaces 7134510400 Nut,locking ,6-32 ,(2) ,nylon insert | $7.04 RepairClinic |
| 17 |  | 137006900replaces 7137006900 Strike,drawer | $8.60 Part Advantage |
| 18 |  | 131696300replaces 7131696300 Screw,quad pan head ,10-16 x 0.312 | $4.16 Parts Dr |
| 20 |  | 134549700replaces 7134549700 Screw,10-16 x 0.500 ,(28) | $6.97 Part Advantage |
| 30 |  | 137006200replaces 7137006200 Latch,drawer | $53.15 Part Advantage |
| 31 | | 7137006500NLA Actuator,drawer | Discontinued |

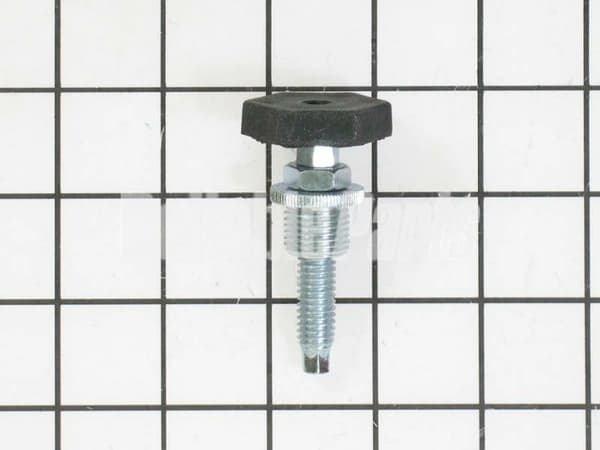

| 36 |  | 5304463780replaces 7131841600 Leveling Leg Assy,bolt,pad & nut | $57.38 PartSelect |
| 38 | | 134802700replaces 7134802700 Panel,back | - |
| 52 |  | 131931202replaces 7131931202 Dampener,vibration ,foam | $10.94 Parts Dr |
