Electrolux ERL6296SK4
Refrigerator, Side-By-Side, W/Dispenser
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
ERL6296SK4Refrigerator, Side-By-Side, W/Dispenser
9 diagrams307 parts
Parts Sections (9)

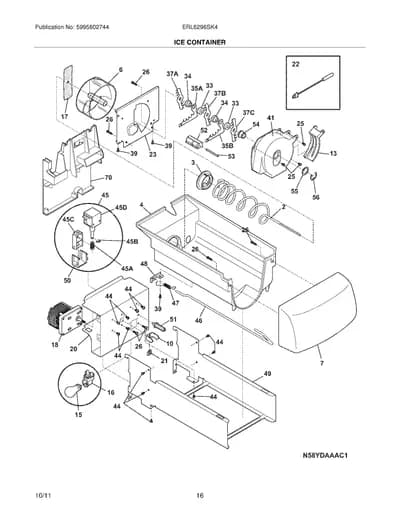

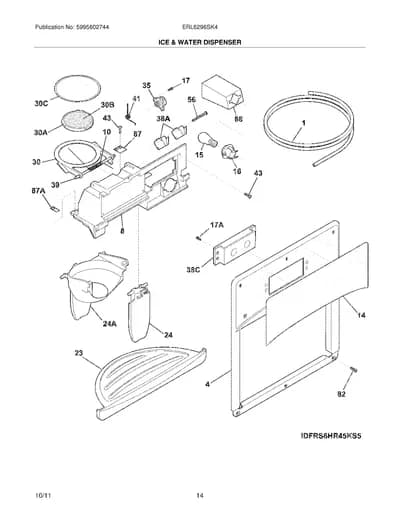

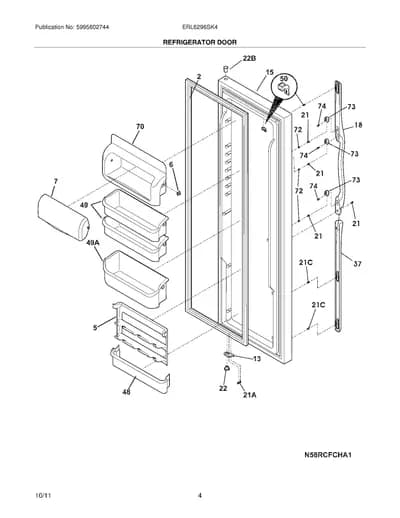

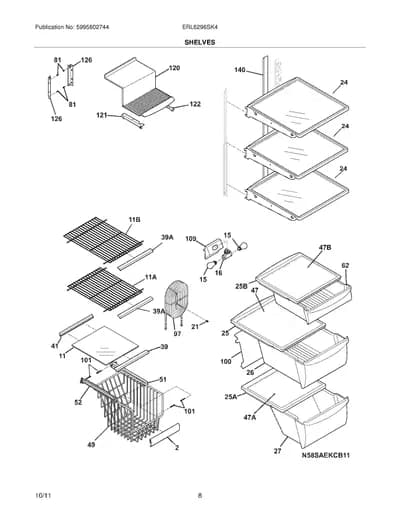

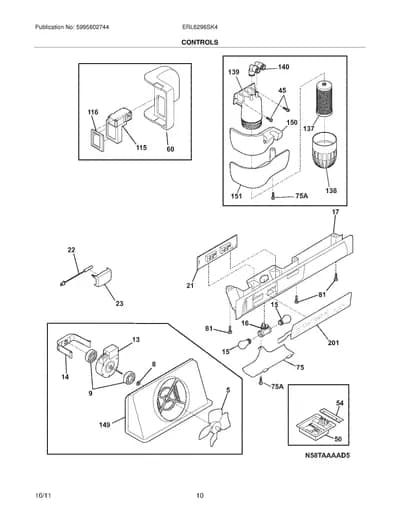

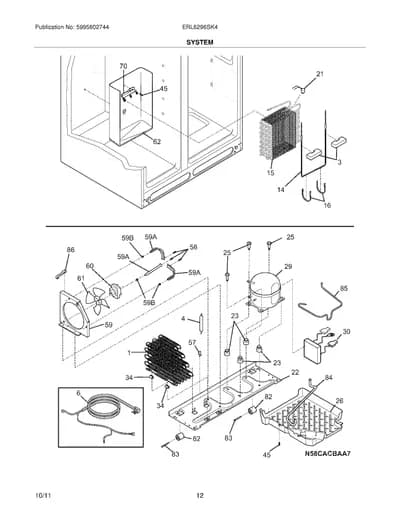

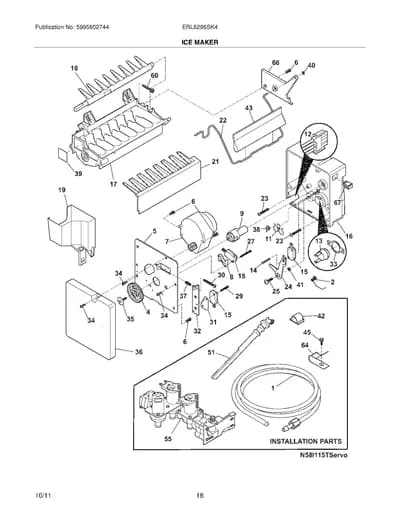

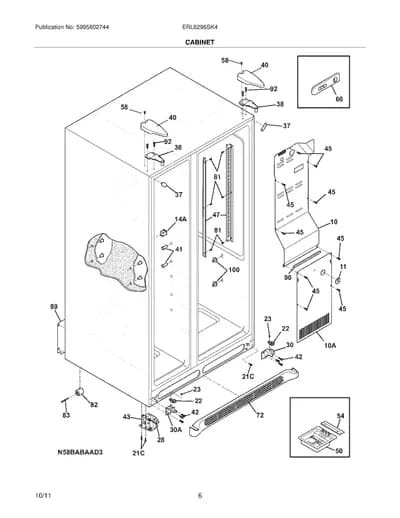

Diagram

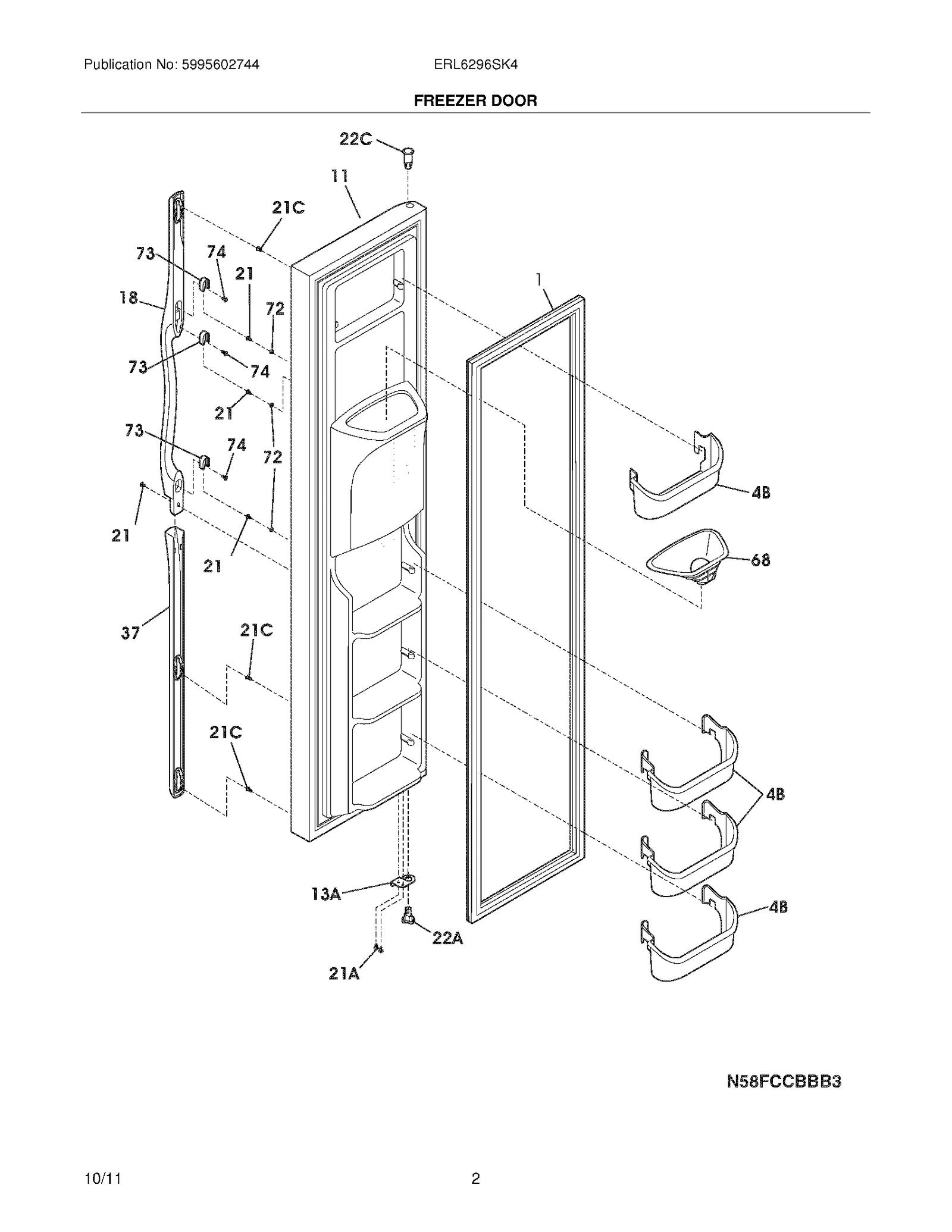

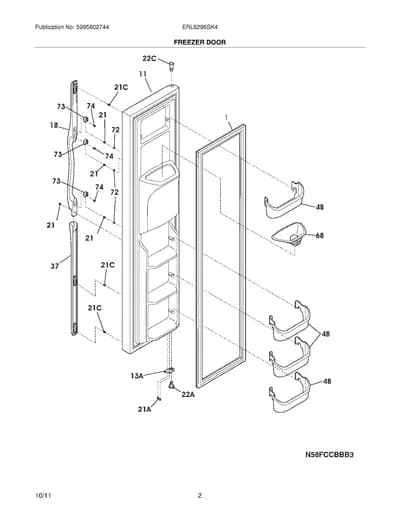

FREEZER DOOR
Parts in FREEZER DOOR
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 241510208replaces 241510204 Gasket-frzr door,black ,magnetic | $44.11 Part Advantage |
| 4B |  | Bin-door | $27.66 Parts Dr |
| 11 | – | 241668513 Door-frzr,silver mist ,complete assy | - |
| 13A |  | Door Stop,black ,frzr | $42.24 Part Advantage |
| 18 |  | 5304485329replaces 241711705 Handle-door,black | - |
| 21 |  | Screw,pan head ,8-18 x 0.625 | $9.03 Part Advantage |
| 21A |  | 5303323137replaces 240598402 SCREW, 10-32 X 1/2 | $8.39 ApplianceParts Pro |
| 21C | | Screw,No.8-18 x 3/4 | - |
| 22A |  | 242000502replaces 240328204 Bearing-hinge(frz),black ,closer | $5.99 ApplianceParts Pro |
| 22C |  | Bearing-hinge,black ,upper | $13.22 Part Advantage |
| 37 | | 241711602NLA Trim-handle,30.13`` ,black ,lower | Discontinued |
| 68 |  | CHUTE-ICE | $56.95 ApplianceParts Pro |
| 72 |  | BUTTON-HANDLE MTG, DOVETAIL | - |
| 73 |  | BLOCK-HANDLE MTG, DOVETAIL | $26.24 Part Advantage |
| 74 |  | 215503204NLA Screw,cr pan hd ,10-16 | Discontinued |
| NI | – | 241655302 HARNESS-WIRING | - |
| NI |  | Screw,ind hex wshr hd ,8-32 x 0.375 ,trilobe | $2.67 ApplianceParts Pro |
| NI |  | CONNECTOR-WATER, STRAIGHT | $39.76 Part Advantage |
| NI |  | DISPENSER HEATER KIT, 220 VOLT | - |
