Model
Electrolux EW23CS70IB5
Refrigerator, Side-By-Side, W/Dispenser
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EW23CS70IB5Refrigerator, Side-By-Side, W/Dispenser
8 diagrams327 parts
Parts Sections (8)
Diagram

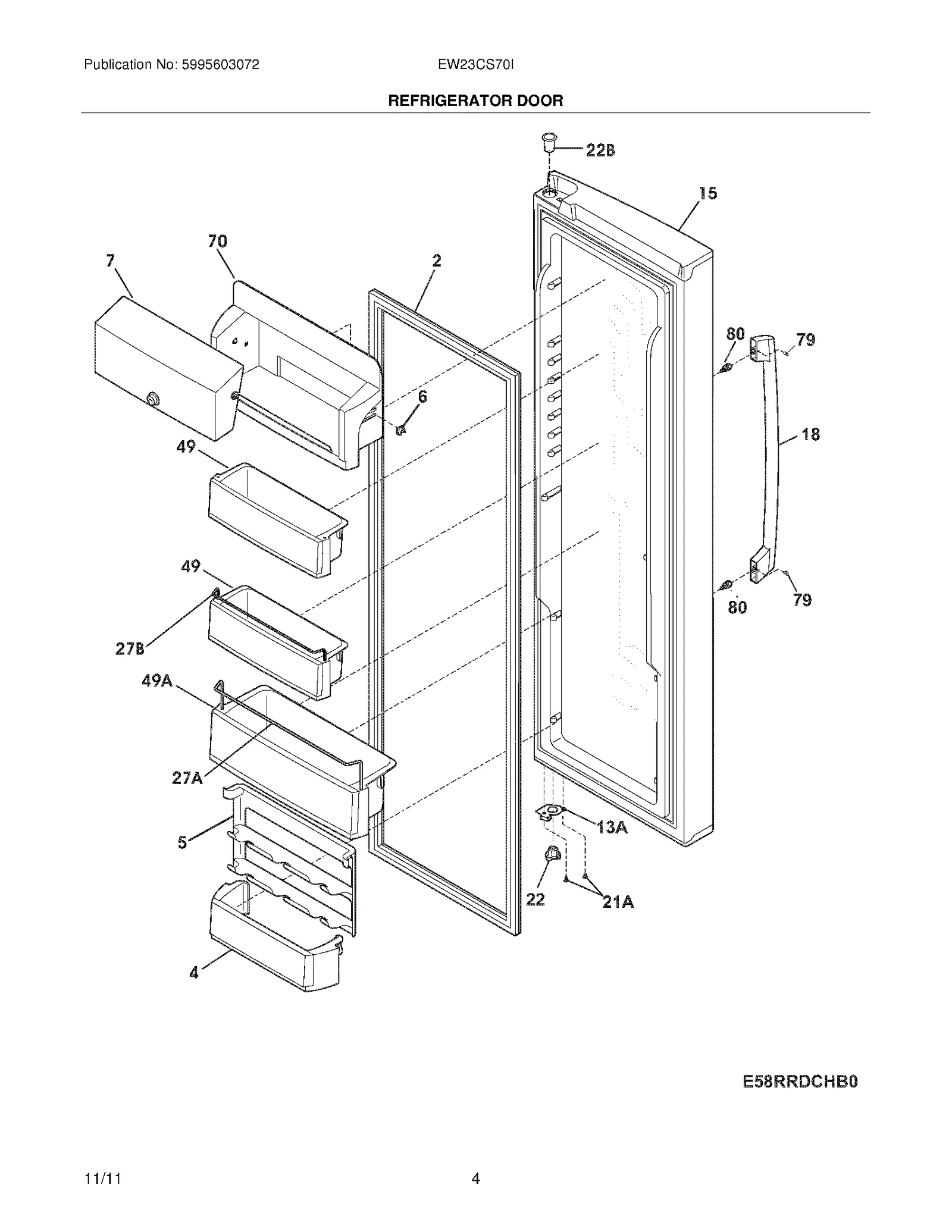

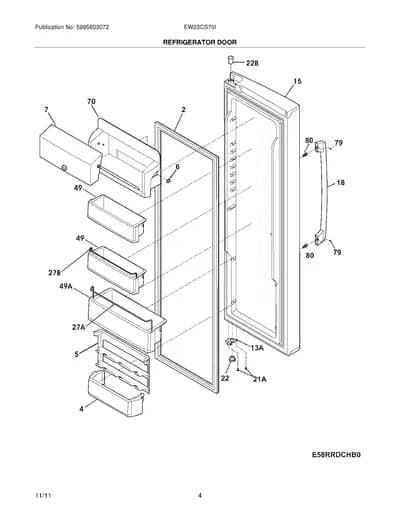

REFRIGERATOR DOOR
Parts in REFRIGERATOR DOOR
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

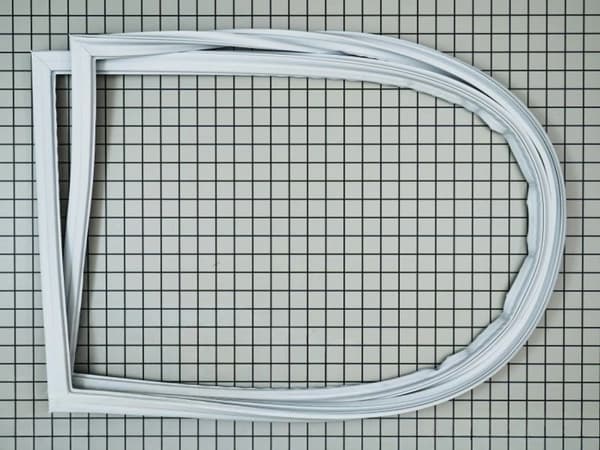

| 2 |  | 241510207replaces 241510203 Gasket-refr door,black ,magnetic | $53.98 Part Advantage |
| 4 |  | Bin-door,pseudo ,bottom | $80.82 PartSelect |
| 5 |  | 241516102NLA Rack-can | Discontinued |
| 6 |  | Lug-dairy compartment | $15.77 RepairClinic |
| 7 | | DOOR-DAIRY | - |
| 13A |  | Door Stop,black ,ref | $14.99 Parts Dr |
| 15 | | Door-refr,black ,complete assy | - |
| 18 | | 241881317replaces 241761011 Handle-door,(2) | - |
| 21A |  | 240442708replaces 240442706 Screw,#10-32 x 3/4 ,zinc | $4.50 Part Advantage |
| 22 |  | Bearing-hinge,gray | $4.09 Part Advantage |
| 22B |  | Bearing,hinge ,top | $9.83 ApplianceParts Pro |
| 27A | | RETAINER-BOTTLE | - |
| 27B | | Retainer-bottle,2 liter | - |
| 49 |  | Bin-door,2-liter | $90.79 PartSelect |
| 49A | | 241750201NLA Bin-door,gallon | Discontinued |
| 70 | | Compartment-dairy,removable | - |
| 79 |  | Screw-set,10-32 x 0.375 | $13.53 Part Advantage |
| 80 |  | Screw,shoulder ,#10-AB ,handle mounting | $7.79 Part Advantage |
| NI |  | 5304453707replaces 241641501 Screw | $8.60 Part Advantage |
| NI |  | Screwdriver,hex ,3/32" ,ball driver^Screwdriver,hex ,3/32" ,ball driver | - |

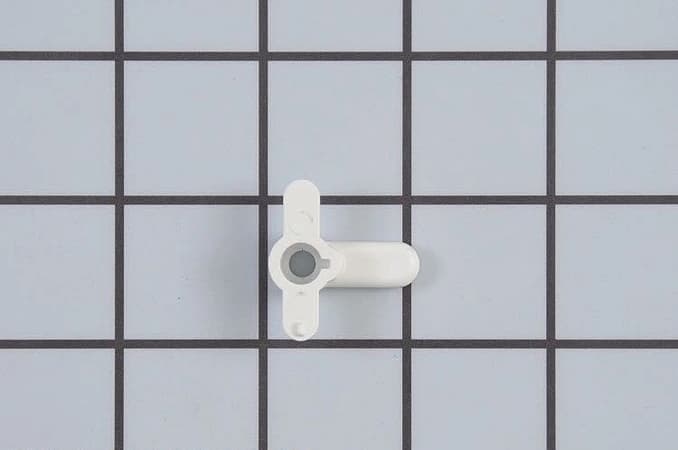

| NI |  | Latch-door | - |
| NI |  | Wrench,allen | Discontinued |
| NI | – | 241836201 DIVIDER-DAIRY COMPT | - |
| NI |  | Knob-dairy door | - |
