Model
Electrolux EW27MC65JS2
Wall Oven, Micro Combo, 27 Inch
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EW27MC65JS2Wall Oven, Micro Combo, 27 Inch
3 diagrams123 parts
Parts Sections (3)
Diagram

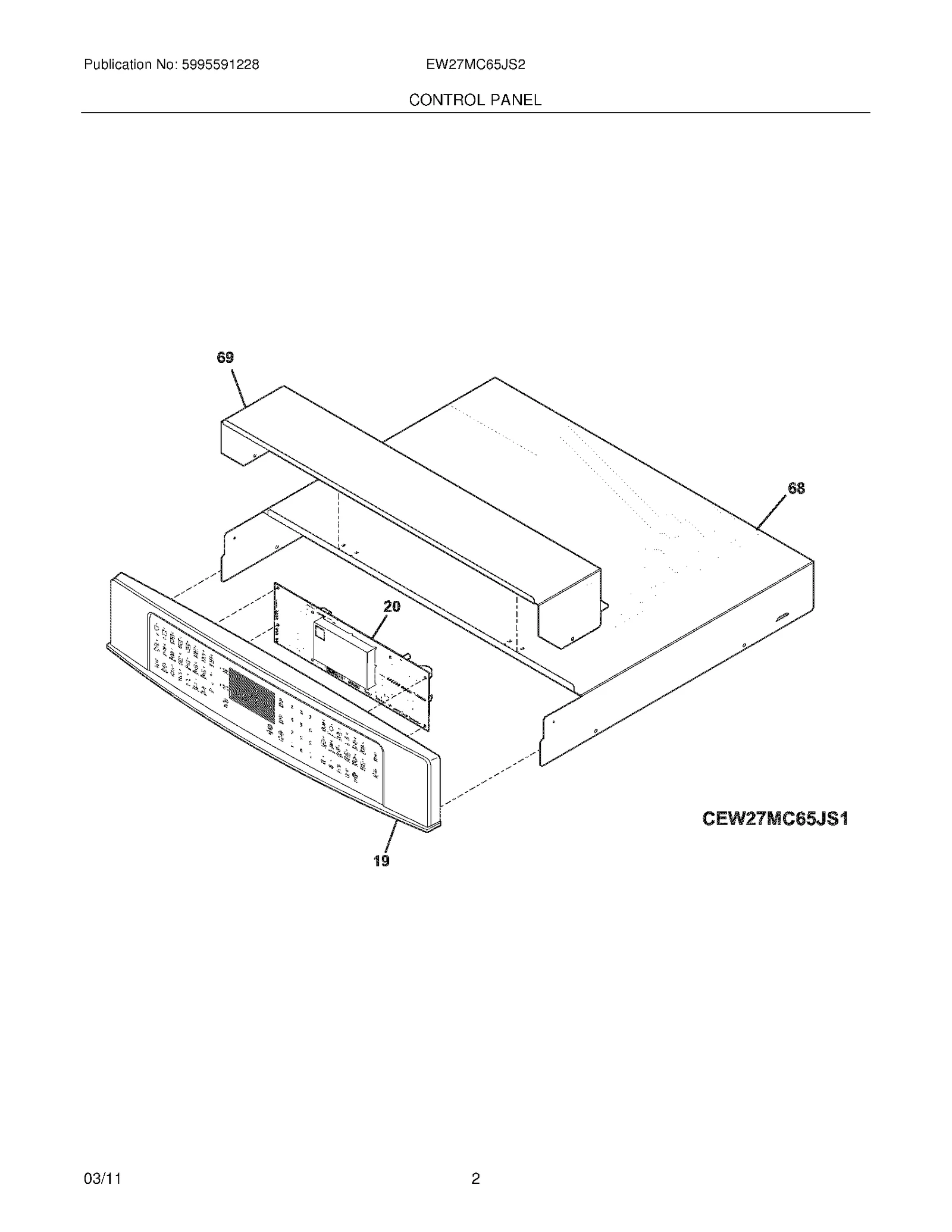

CONTROL PANEL
Parts in CONTROL PANEL
8 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 19 |  | 318366231NLA Control Panel Assembly,glass ,black/stainless,w/touch & trim | Discontinued |
| 20 |  | Board,control ,UIB ,microcombi | - |
| 68 | – | 318237223 Housing,top/control | - |
| 69 | | SHIELD, CONTROL | - |
| NI |  | SCREW, CONTROL MTG, 6-32 X .25, (5) | - |
| NI |  | Harness,wiring ,display/control ,to relay board | - |
| NI |  | SCREW, 8-18 X 1/2, BLACK, (3) | $7.79 Part Advantage |
| NI |  | 131243700replaces 5304454881 Screw,No.8-18 x 3/8 ,(24) | $1.96 Part Advantage |
