Model
Electrolux EW27WD55GS2
Warmer Drawer
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EW27WD55GS2Warmer Drawer
2 diagrams58 parts
Parts Sections (2)
Diagram

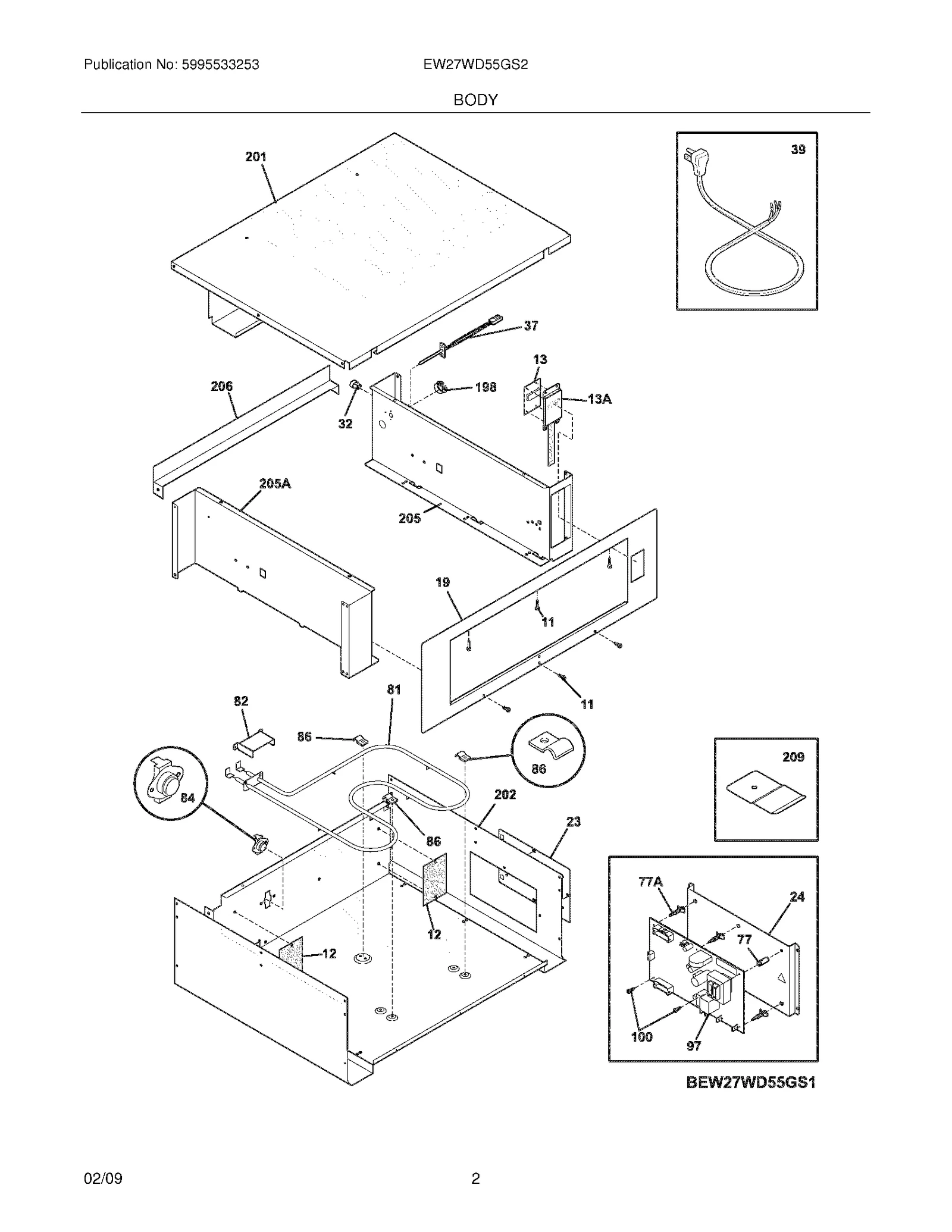

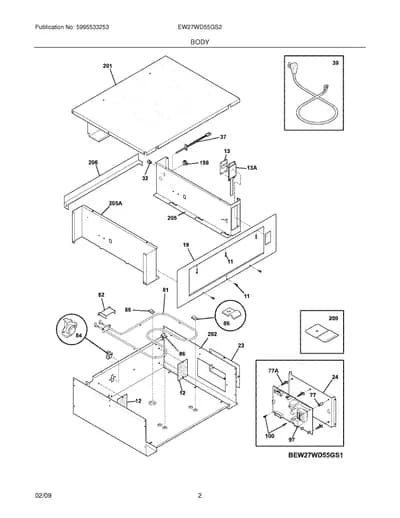

BODY
Parts in BODY
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 11 |  | 5303300265replaces 75303300265 Screw,8-18 X 1/2 ,silver ,(4) | $10.70 ApplianceParts Pro |
| 12 |  | 318388000replaces 7318388000 Bumper,Absorber ,felt ,(2) | - |
| 13 |  | 316517900replaces 7316517900 Board,display | - |
| 13A | | 318388101replaces 7318388101 Bracket Assembly,display board ,w/overlay | - |
| 19 | – | 7318387611 Control Panel,assembly ,w/studs | - |
| 23 | – | 7318310109 Panel,service | - |
| 24 |  | 318310701replaces 7318310701 Bracket,mounting | - |
| 32 | – | 7318228100 Strain relief | - |
| 37 |  | 316217002replaces 7316217002 Probe,oven temp | $39.67 Part Advantage |
| 39 |  | 318144005replaces 7318144005 Cord,service | - |
| 77 |  | 316247900replaces 7316247900 Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | 316114100replaces 7316114100 Spacer,(4) | $44.95 ApplianceParts Pro |
| 81 |  | 318255301replaces 7318255301 Element,warmer drawer | - |
| 82 | – | 7318388600 Guard,element | - |
| 84 | – | 7318005115 Thermostat | - |
| 86 |  | 316095800replaces 7316095800 Clip,hold down ,warmer element | $9.26 ApplianceParts Pro |
| 97 | – | 7316517801 Board,control ,display realy | - |
| 100 |  | 5303297477replaces 75304400427 Screw,6-20 x 1/2 ,(2) | $5.62 RepairClinic |
| 198 | | 08008009replaces 708008009 Bushing,nylon ,snap | $7.57 Parts Dr |
| 201 | – | 7318281507 Wrapper,upper | - |
| 202 | – | 7318281022 Wrapper,lower | - |
| 205 | – | 7318281215 Panel,side ,black ,RH | - |
| 205 | – | 7318281315 Panel,side ,black ,LH | - |
| 206 | – | 7318378601 Shield,wire | - |
| 209 | – | 7318247401 Bracket,wall | - |
| 209 | | 5304464952replaces 75304464952 Screw,No.10-16 x 1 1/4 ,(5) | - |
| NI | – | 75303325170 Nut,Keps ,8-32 ,(4) | - |
| NI | – | 75304464950 Screw,No.6 - 32 x 5/16 ,(4) | - |
| NI | – | 75303323175 Adhesive tape,1`` lg. | - |
| NI | – | 7318199767 Wiring Harness,main | - |
| NI | | Wiring Harness,communication | - |
| NI | | 318399000replaces 7318399000 Shield,wire | - |
| NI | – | 7318388001 Plate,anti friction ,felt | - |
| NI |  | 134178901replaces 75303211311 Screw,8 x 0.500 | $8.60 Part Advantage |
| NI | – | 75303311306 Screw,8-18 x 0.375 ,(8) | - |
