Model
Electrolux EW28BS71ISE
Refrigerator, French Door, Bottom Freezer, W/Dispenser
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EW28BS71ISERefrigerator, French Door, Bottom Freezer, W/Dispenser
8 diagrams324 parts
Parts Sections (8)
Diagram

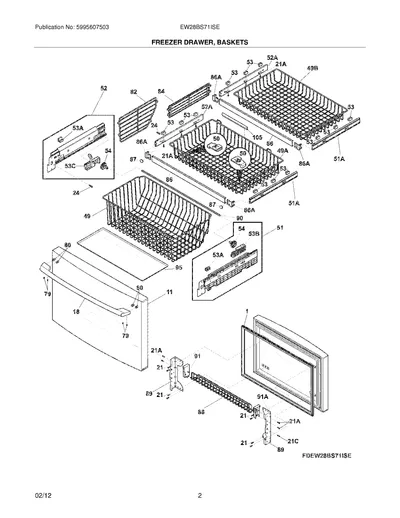

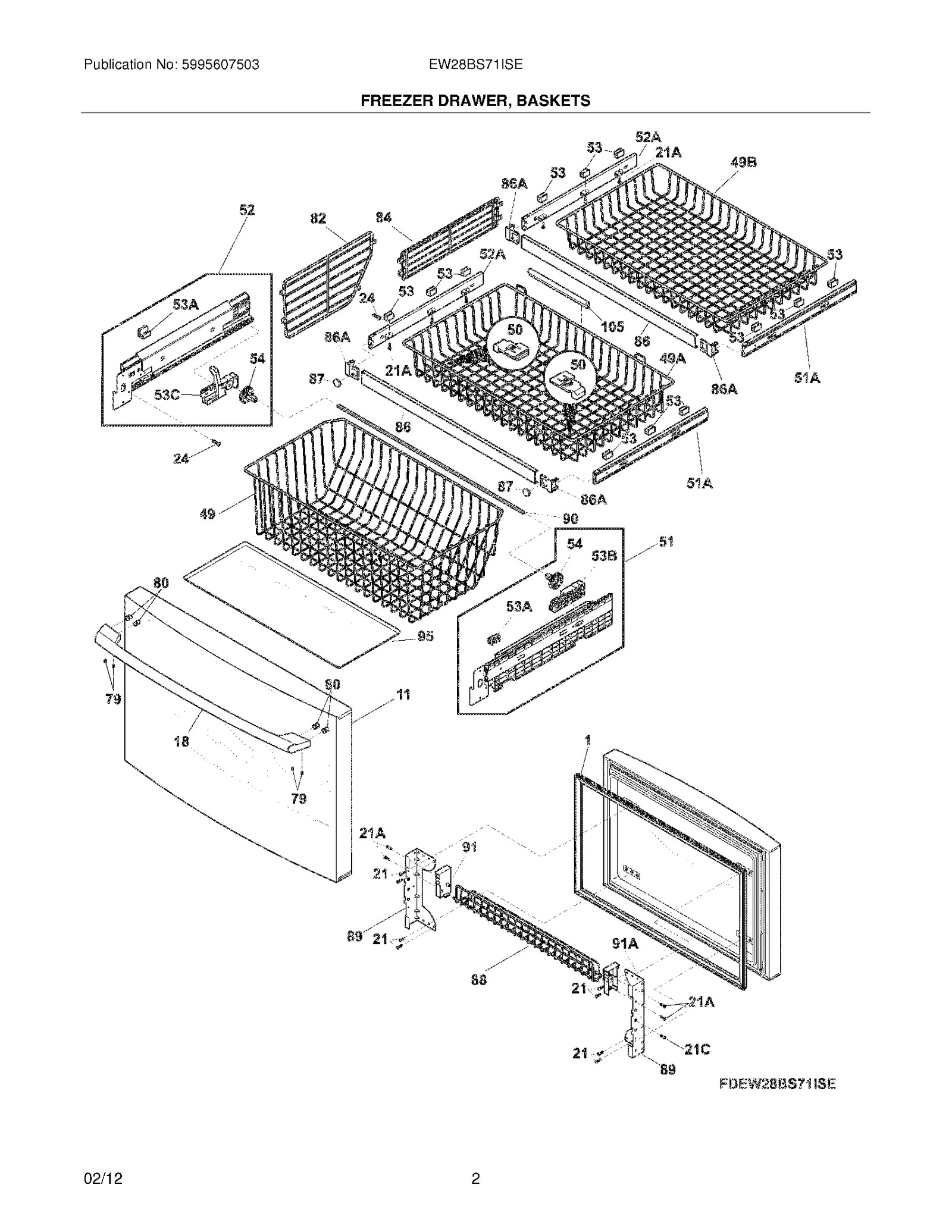

BASKET
Parts in BASKET
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304537408replaces 241778302 GASKET-FRZR DRAWER, WHITE, MAGNETIC | $47.53 Part Advantage |
| 11 |  | Door-frzr,stainless ,complete assy | - |
| 18 |  | Handle-frzr drawer,stainless | $152.83 Part Advantage |
| 21 |  | Screw,type AB ,#10-16 x .5 | $10.53 Parts Dr |
| 21A |  | Screw,quad hilo ,#8-18 X 0.380 | $9.89 Part Advantage |
| 21C |  | Screw,truss head ,#10-32 x 1/4 ,zinc | $8.60 Part Advantage |
| 21C |  | 5304497384replaces 242147601 Plate,tapping | $6.20 RepairClinic |
| 24 |  | 5304515677replaces 240383406 Screw,truss hd quad ,#10-16 x .500 ,zinc | $4.89 Part Advantage |
| 49 | | 242026801NLA BASKET-FRZR, LOWER | Discontinued |
| 49A |  | Basket-frzr,upper | - |
| 49B | | Basket-frzr,ceiling ,up upper | - |
| 50 |  | 242219502replaces 242219501 Clip-basket,Pull Side | $13.95 ApplianceParts Pro |
| 51 |  | 5303918690replaces 242130504 Slide Assembly,basket lower ,RH ,freezer drawer | - |
| 51A |  | 5304491063replaces 241894206 Slide Assembly,basket ,RH ,freezer drawer | $97.24 Parts Dr |
| 52 | | Slide Assembly,basket lower ,LH ,freezer drawer | Discontinued |
| 52A | | 5304491063replaces 241894207 Slide Assembly,basket ,LH ,freezer drawer | $97.24 Parts Dr |
| 53 |  | 5303918801replaces 242216301 Retainer-basket | $9.95 ApplianceParts Pro |
| 53A | – | 242139001 Retainer-basket | - |
| 53B | – | 242139102 Retainer-basket,rear RH | - |
| 53C | – | 242139101 Retainer-basket,rear LH | - |
| 54 | – | 242136801 Pinion | - |
| 79 |  | Screw-set,10-32 x 0.375 | $13.53 Part Advantage |
| 80 |  | Screw,shoulder ,#10-AB ,handle mounting | $7.79 Part Advantage |
| 82 | | DIVIDER, BASKET | - |
| 84 |  | Divider,basket ,upper | - |
| 86 |  | 5304507340replaces 242140601 Bar stabilizer,outside ,freezer drawer | $30.43 Parts Dr |
| 86A | – | 242140801 Bar stabilizer,inside ,freezer drawer | - |
| 87 |  | Magnet,door | - |
| 88 |  | 241824008replaces 241824006 RACK-TILT OUT,DOOR . | $25.04 Parts Dr |
| 89 |  | Bracket-freezer drawer | $40.57 RepairClinic |
| 90 |  | Bar-timing | - |
| 91 |  | Cap-door rack | - |
| 91A |  | Cap,door rack ,white | - |
| 95 | | TRAY, SPILL GUARD | - |
| 105 |  | Trim-basket | - |
| NI |  | Bumper,rubber ,white ,upper basket | $16.95 ApplianceParts Pro |
| NI |  | Wrench,allen | Discontinued |
| NI |  | Screwdriver,hex ,3/32" ,ball driver^Screwdriver,hex ,3/32" ,ball driver | - |
| NI |  | Screw,shoulder ,#10-16 type AB ,lower slides,w/was | $3.95 ApplianceParts Pro |
| NI | | GUIDE, DIVIDER, PLASTIC (ABS), LOWER | - |
| NI | | GUIDE, DIVIDER, PLASTIC (ABS), LOWER, LH | - |
| NI |  | Pin-lock | $11.47 ApplianceParts Pro |
