Electrolux EW28BS71IW9
Refrigerator, French Door, Bottom Freezer, W/Dispenser
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EW28BS71IW9Refrigerator, French Door, Bottom Freezer, W/Dispenser
8 diagrams346 parts

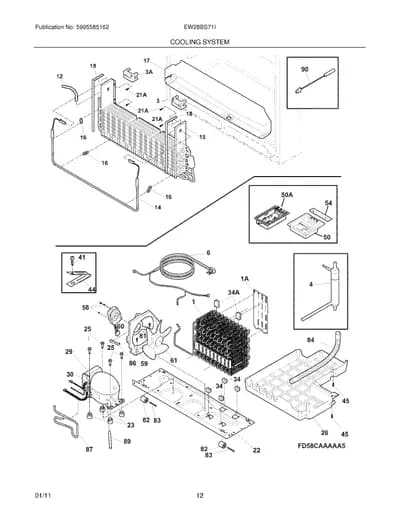

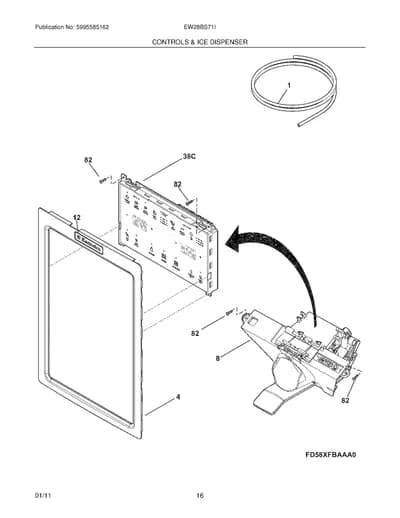

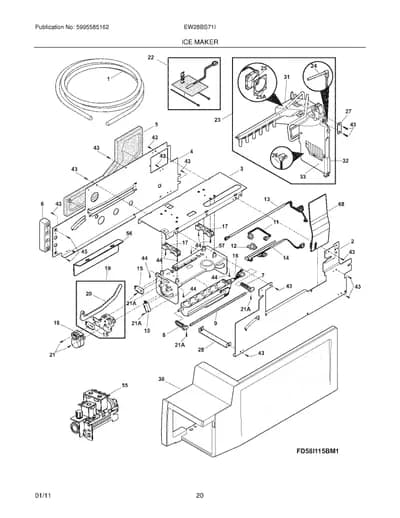

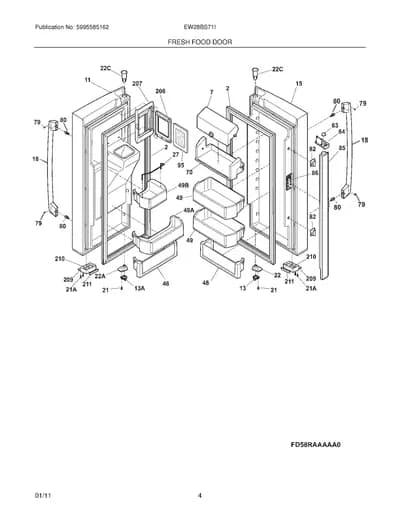

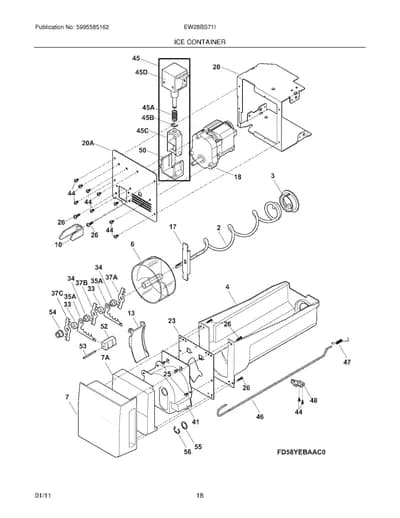

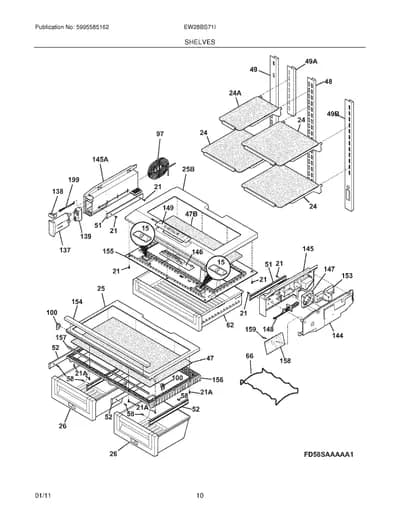

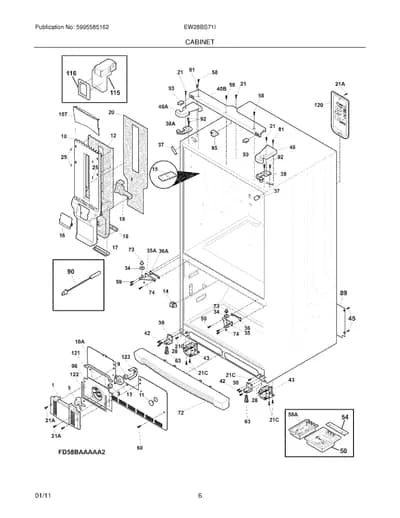

Parts Sections (8)
Diagram

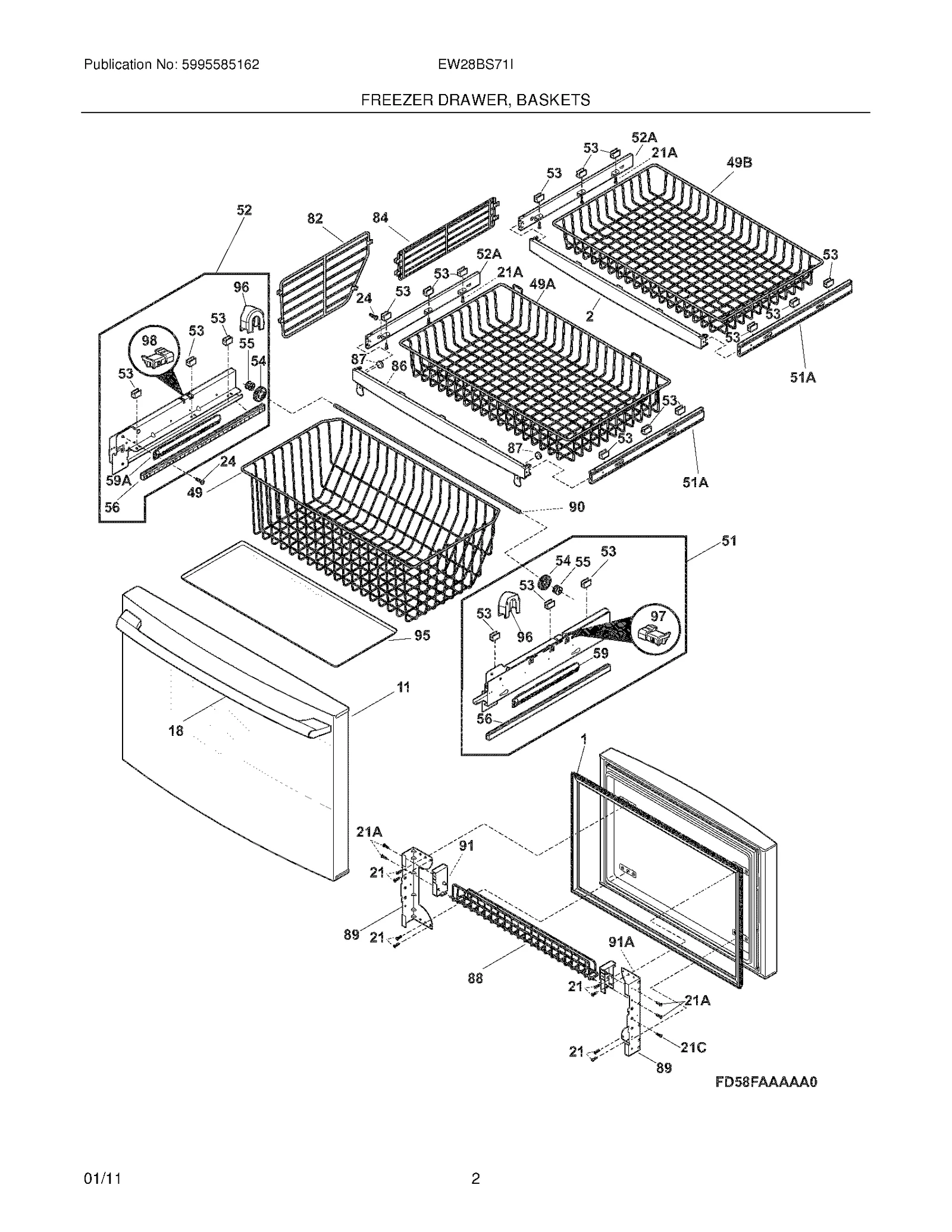

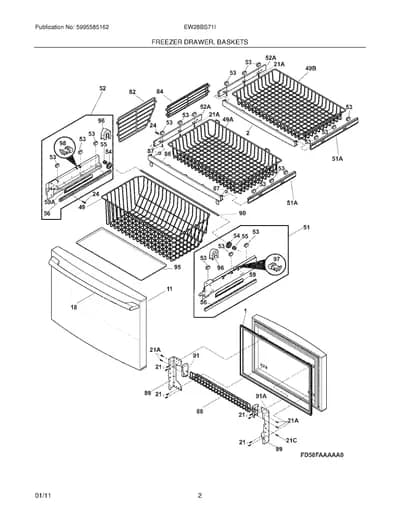

BASKET
Parts in BASKET
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304537408replaces 241778302 GASKET-FRZR DRAWER, WHITE, MAGNETIC | $47.53 Part Advantage |
| 2 |  | 5304507340replaces 241807605 Trim,drawer ,stabilizer | $30.43 Parts Dr |
| 11 |  | DRAWER, WHITE, FREEZER | - |
| 18 | | HANDLE-FRZR DRAWER, WHITE | - |
| 21 |  | Screw,truss hd quad ,#10-16 x .500 ,white | $9.83 ApplianceParts Pro |
| 21A |  | Screw,quad hilo ,#8-18 X 0.380 | $9.89 Part Advantage |
| 21C |  | Screw,truss head ,#10-32 x 1/4 ,zinc | $8.60 Part Advantage |
| 24 |  | 5304515677replaces 240383406 Screw,truss hd quad ,#10-16 x .500 ,zinc | $4.89 Part Advantage |
| 49 | | 242026801NLA BASKET-FRZR, LOWER | Discontinued |
| 49A | | Basket-frzr,upper | Discontinued |
| 49B | | Basket-frzr,ceiling ,up upper | - |
| 51 |  | 5304489981replaces 241883601 Slide Assembly,basket lower ,RH ,freezer drawer | $338.77 Part Advantage |
| 51A |  | 241894223replaces 241894201 Slide Assembly,basket ,RH ,freezer drawer | $83.13 Parts Dr |
| 52 | | 5304489981replaces 241883701 Slide Assembly,basket lower ,LH ,freezer drawer | $338.77 Part Advantage |
| 52A |  | 5304491063replaces 241894203 Slide Assembly,basket ,LH ,freezer drawer | $97.24 Parts Dr |
| 53 | | 241824201NLA Retainer-basket | Discontinued |
| 54 |  | Pinion | $20.09 Part Advantage |
| 55 |  | Pinion-idler | $15.44 Parts Dr |
| 56 | | Rack,drawer travel | - |
| 59 |  | 5304474655replaces 241979702 CLOSURE, DRAWER | - |
| 59A |  | 5304474656replaces 241979701 CLOSURE, DRAWER | $33.35 Parts Dr |
| 82 | | DIVIDER, BASKET | - |
| 84 |  | 241780904replaces 241780901 DIVIDER, BASKET, UPPER | - |
| 86 |  | 241953202NLA BAR, STABALIZER, FREEZER DRAWER | Discontinued |
| 87 |  | Magnet,door | - |
| 88 |  | 241824008replaces 241824004 Rack-tilt out,door | $25.04 Parts Dr |
| 89 |  | 241972302replaces 241972301 Bracket-freezer drawer | $40.57 RepairClinic |
| 90 |  | 241770705replaces 241770702 Bar,timing | $32.15 Parts Dr |
| 91 |  | Cap-door rack | - |
| 91A |  | Cap,door rack ,white | - |
| 95 | | TRAY, SPILL GUARD | - |
| 96 |  | Cover,pinion ,white | $42.40 ApplianceParts Pro |
| 97 |  | ACTUATOR, RH, WHITE, LIGHT | - |
| 98 | | Actuator,LH ,white ,light | - |
| NI |  | Bumper,rubber ,white ,upper basket | $16.95 ApplianceParts Pro |
| NI |  | Screw-set,10-32 x 0.375 | $13.53 Part Advantage |
| NI |  | Screw,shoulder ,#10-AB ,handle mounting | $7.79 Part Advantage |
| NI |  | Wrench,allen | Discontinued |
| NI |  | Screwdriver,hex ,3/32" ,ball driver^Screwdriver,hex ,3/32" ,ball driver | - |
| NI |  | Screw,shoulder ,#10-16 type AB ,upper slides,w/was | $9.95 ApplianceParts Pro |
| NI | | GUIDE, DIVIDER, PLASTIC (ABS), LOWER | - |
| NI | | GUIDE, DIVIDER, PLASTIC (ABS), LOWER, LH | - |
| NI |  | 242146401replaces 241899601 Screw,hex whd ,1/4-20 x 3/8`` ,connects frz,rails to door ,(4) | $8.25 Part Advantage |
| NI |  | Pin-lock | $11.47 ApplianceParts Pro |
