Model
Electrolux EW30DF65GWB
Range/Oven, Dual Fuel, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EW30DF65GWBRange/Oven, Dual Fuel, Freestanding, 30 Inch
5 diagrams212 parts

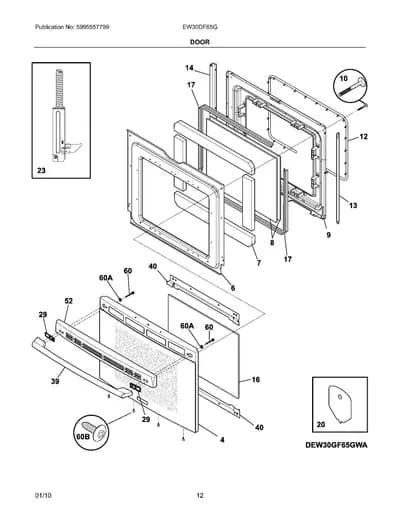

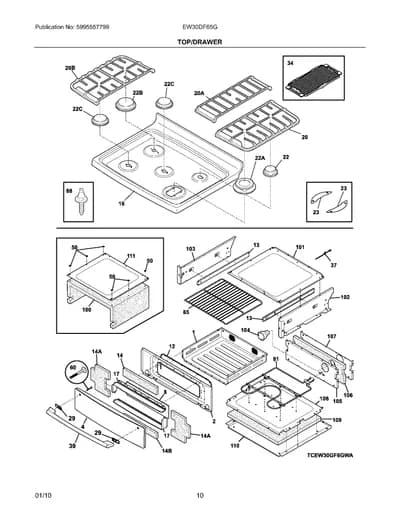

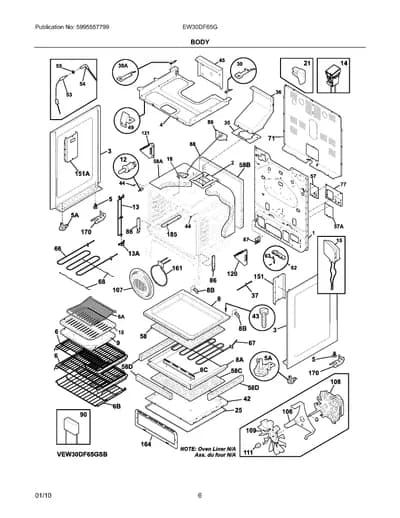

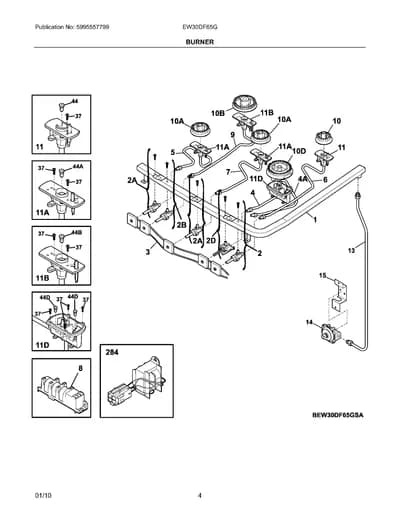

Parts Sections (5)
Diagram

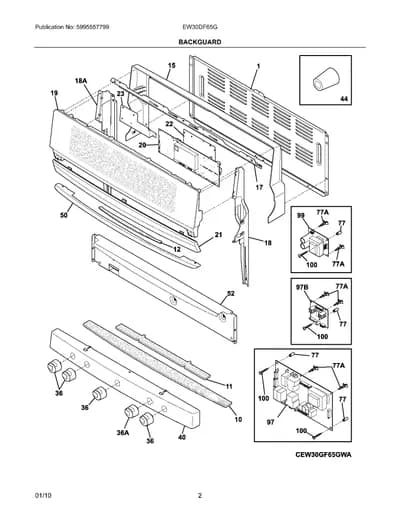

BACKGUARD
Parts in BACKGUARD
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | SHIELD, REAR WALL | - |
| 10 |  | Insulation,manifold panel | - |
| 11 | | INSULATION, FRONT FRAME | - |
| 12 | | INSUALTION, DEFLECTOR | - |
| 15 | – | 316500400 Wrapper,backguard ,white | - |
| 17 | – | 316500301 SHIELD, UPPER, BACKGUARD | - |
| 18 | – | 316526000 CHANNEL, SUPPORT, RH, BACKGUARD | - |
| 18A | – | 316526001 CHANNEL, SUPPORT, LH, BACKGUARD | - |
| 19 | | Control Panel Assembly,user interface ,white | - |
| 20 | | 316576604replaces 316516517 Controller,electronic ,ES630A | - |
| 21 | | Support,backguard ,white ,lower | - |
| 22 | | BRACKET, CONTROL MTG. | - |
| 23 | – | 316520400 BRACKET, TRIAC MTG. | - |
| 36 | | Knob,top valve ,white ,(4) | - |
| 36A | – | 316535707 Knob,top valve ,white ,dual | - |
| 40 | – | 316512701 Panel,manifold ,white | - |
| 44 | | Spacer,oven door | - |
| 50 | | DEFLECTOR, HEAT SHIELD, STAINLESS | - |
| 52 | | SHIELD, BACKGUARD, BLACK, INNER | - |
| 77 |  | Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | Spacer | $44.95 ApplianceParts Pro |
| 97 |  | BOARD, RELAY, OVEN CONTROL | $238.15 Parts Dr |
| 97B |  | BOARD, VARIABLE SPEED, TRIAC | $152.44 Parts Dr |
| 99 |  | BOARD, POWER SUPPLY, 8V, (2) | $213.54 Parts Dr |
| 100 |  | Screw,truss sqdr ,8A x 1" ,62*^Screw,truss sqdr ,8A x 1" ,62* | $2.24 RepairClinic |
| NI |  | SCREW, CONTROL MTG, 6-32 X .25, (5) | - |
| NI | – | 316525500 SCREW, BLUNT PNT PH B, 8-18 X .875, (2) | - |
| NI | | HARNESS, WIRING, BACKGUARD | $63.64 PartSelect |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| NI | | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
| NI |  | Screw,10-16 x .486 | $7.79 Part Advantage |
| NI | | SCREW, TRUSS HD, 8-16 X 1.5, (10) | - |
