Model
Electrolux EW30EF65GSE
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EW30EF65GSERange/Oven, Electric, Freestanding, 30 Inch
4 diagrams161 parts

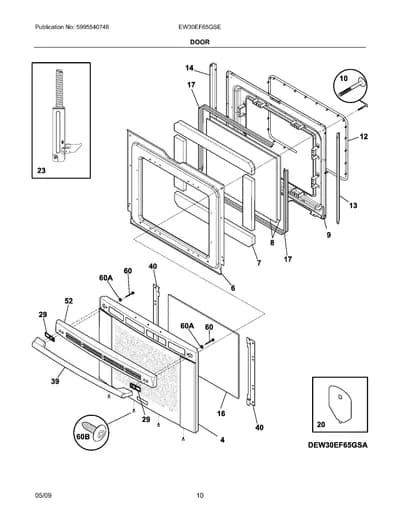

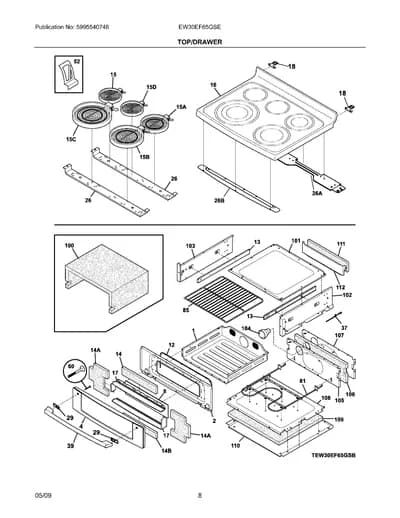

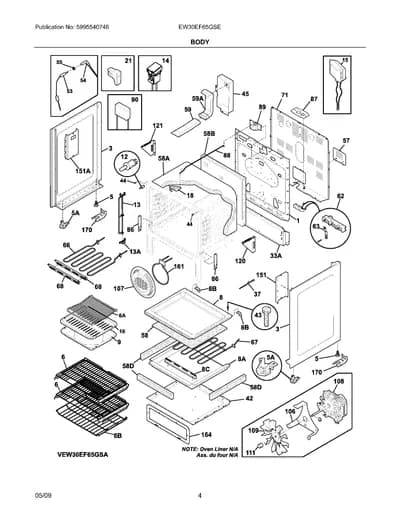

Parts Sections (4)
Diagram

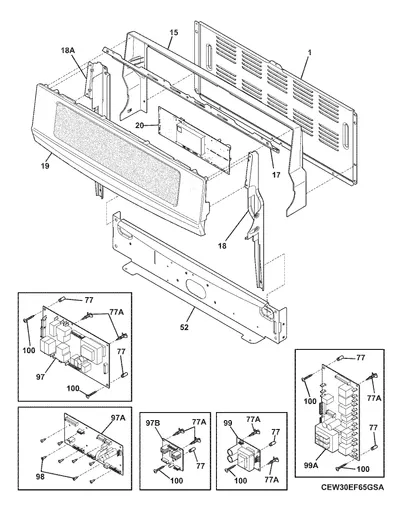

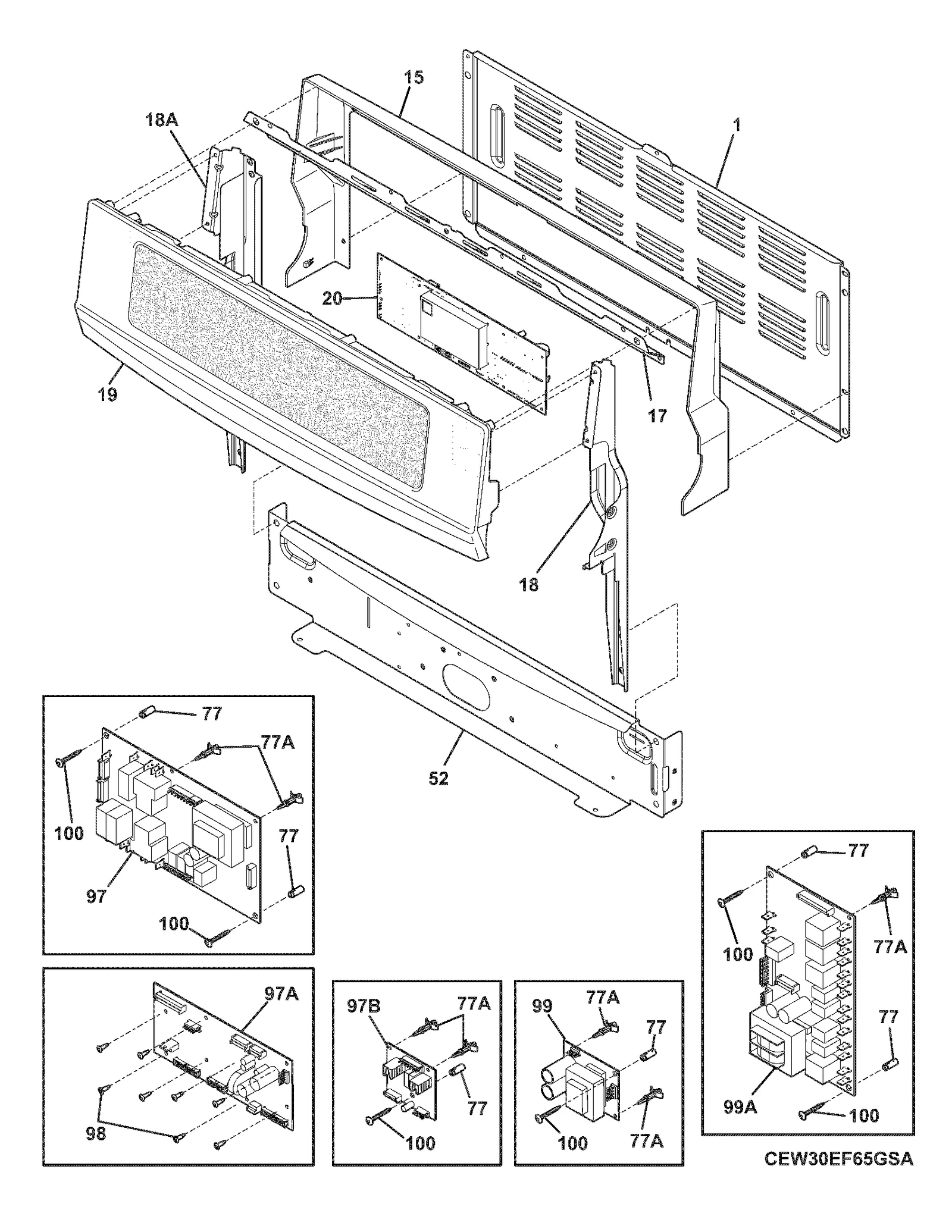

BACKGUARD
Parts in BACKGUARD
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 316500100replaces 7316500100 Shield,rear wall | - |
| 15 | | 316500402replaces 7316500402 Wrapper,backguard ,stainless | - |
| 17 | – | 7316500301 Shield,upper ,backguard | - |
| 18 | – | 7316526000 Channel,support ,RH ,backguard | - |
| 18A | – | 7316526001 Channel,support ,LH ,backguard | - |
| 19 | | Control Panel Assembly,user interface ,w/ss trim | Discontinued |
| 20 |  | 316576641replaces 7316516573 Controller,electronic ,ES630A | - |
| 52 | – | 7316509803 Shield,backguard ,black ,inner | - |
| 77 |  | 316247900replaces 7316247900 Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | 316114100replaces 7316114100 Spacer,(4) | $44.95 ApplianceParts Pro |
| 97 |  | 316443920replaces 7316443920 Board,relay ,oven control | $238.15 Parts Dr |
| 97A |  | 316576410replaces 7316516610 Board,power ,UIB | $193.59 RepairClinic |
| 97B |  | 316519200replaces 7316519200 Board,relay ,convection | $152.44 Parts Dr |
| 98 | | 316533900replaces 7316533900 Screw,truss hd ,8-16 x 1.5 ,(10) | - |
| 99 |  | 316535200replaces 7316535200 Board,power supply ,8V ,(2) | $213.54 Parts Dr |
| 99A |  | 316442120replaces 7316442115 Board,power ,relay | $203.56 Parts Dr |
| 100 |  | 5303289910replaces 75303289910 Screw,8A ,1`` ,(7) ,power board mtg | $2.24 RepairClinic |
| NI |  | 131892100replaces 7316524400 Screw,control mtg ,6-32 x .25 ,(5) | $7.49 ApplianceParts Pro |
| NI | | Harness,wiring ,control to ,relay board | Discontinued |
| NI | | 316525610replaces 7316525610 Harness,wiring ,relay board to ,user interface | - |
| NI |  | 316021109replaces 7316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI | | 316021109replaces 7316021109 Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
