Model
Electrolux EW30ES6CGS1
Range/Oven, Electric, Slide-In, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EW30ES6CGS1Range/Oven, Electric, Slide-In, 30 Inch
4 diagrams192 parts
Parts Sections (4)
Diagram

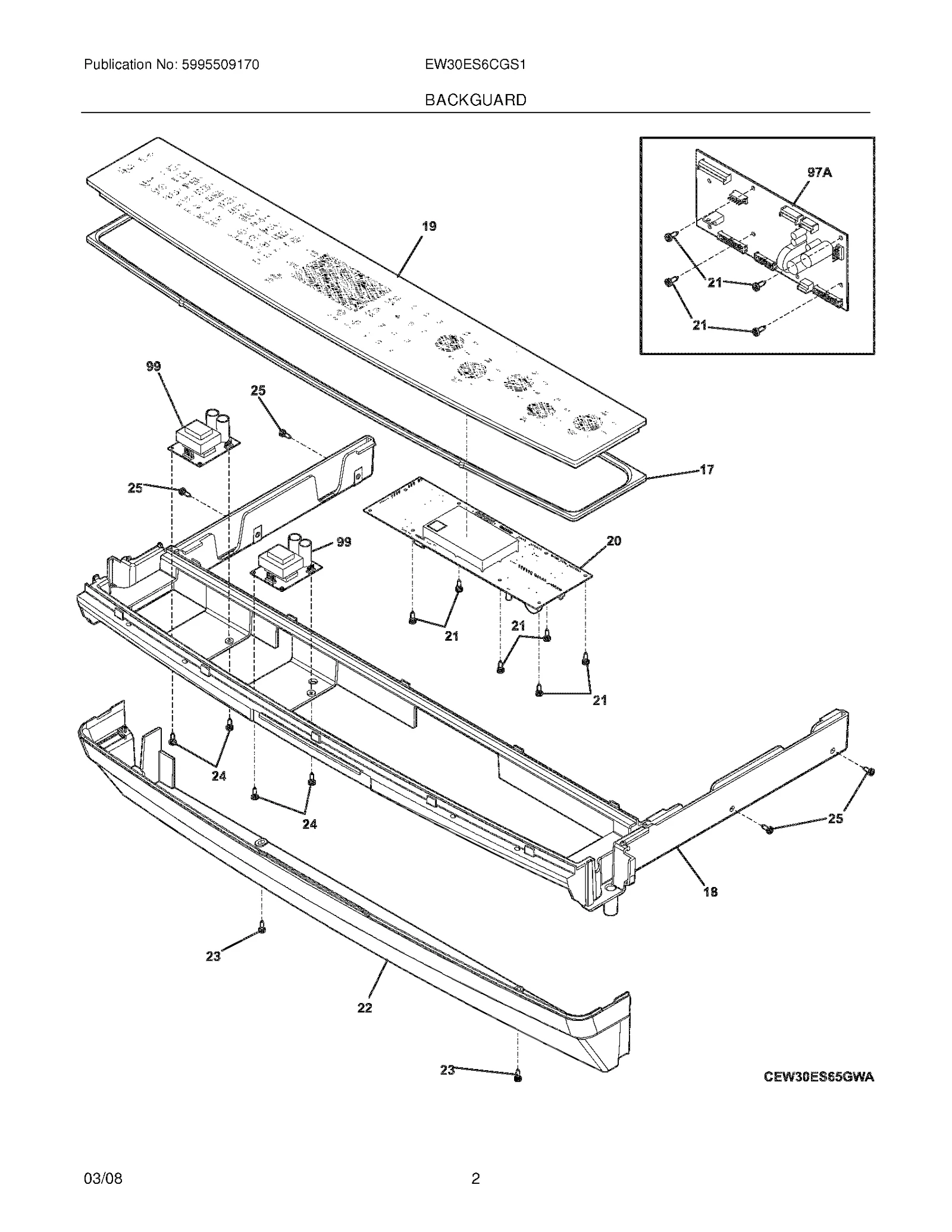

BACKGUARD
Parts in BACKGUARD
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 17 |  | 7318905901NLA Gasket,control ,black | Discontinued |
| 18 |  | 318900301replaces 7318900301 Subframe,control | - |
| 19 | | 318387121replaces 7318387121 Control Assembly,glass ,black ,w/interface | - |
| 20 |  | 316576610replaces 7316516545 Controller,electronic ,ES630 | $308.68 ApplianceParts Pro |
| 21 |  | 131892100replaces 7316524400 Screw,control mtg ,6-32 x .25 ,(5) | $7.49 ApplianceParts Pro |
| 22 |  | 318905005replaces 7318905005 Panel,service ,stainless | $198.01 RepairClinic |
| 23 | | 5304401361replaces 75304401361 Screw,8-18 x 0.750 ,black | - |
| 24 |  | 5303307980replaces 75303307980 Screw,8-32 x 0.437 ,(4) | $10.94 ApplianceParts Pro |
| 25 | | 3051009replaces 75303131801 Screw,10 x 3/8 | - |
| 97A |  | 316576430replaces 7316516630 Board,power ,UIB | $182.93 Parts Dr |
| 99 |  | 316535200replaces 7316535200 Board,power supply ,8V ,(2) | $213.54 Parts Dr |
| NI | – | 7318083082 Harness,wiring ,controls | - |
| NI | – | 7318083084 Harness,wiring ,power to timer | - |
| NI | | 318163602replaces 7318163602 Cleaner,stainless steel | - |
| NI |  | 134178901replaces 75303211311 Screw,8 x 0.500 | $8.60 Part Advantage |
