Model
Electrolux EW30EW65GB5
Wall Oven, Electric, Double, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EW30EW65GB5Wall Oven, Electric, Double, 30 Inch
4 diagrams126 parts
Parts Sections (4)
Diagram

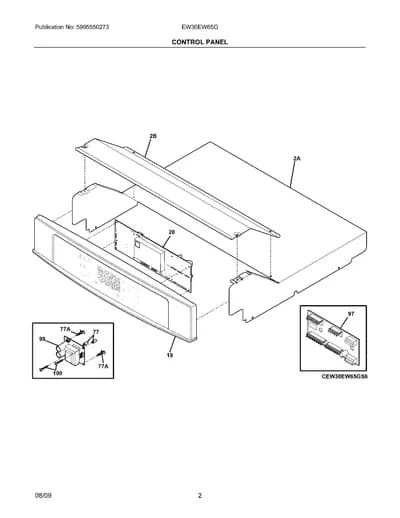

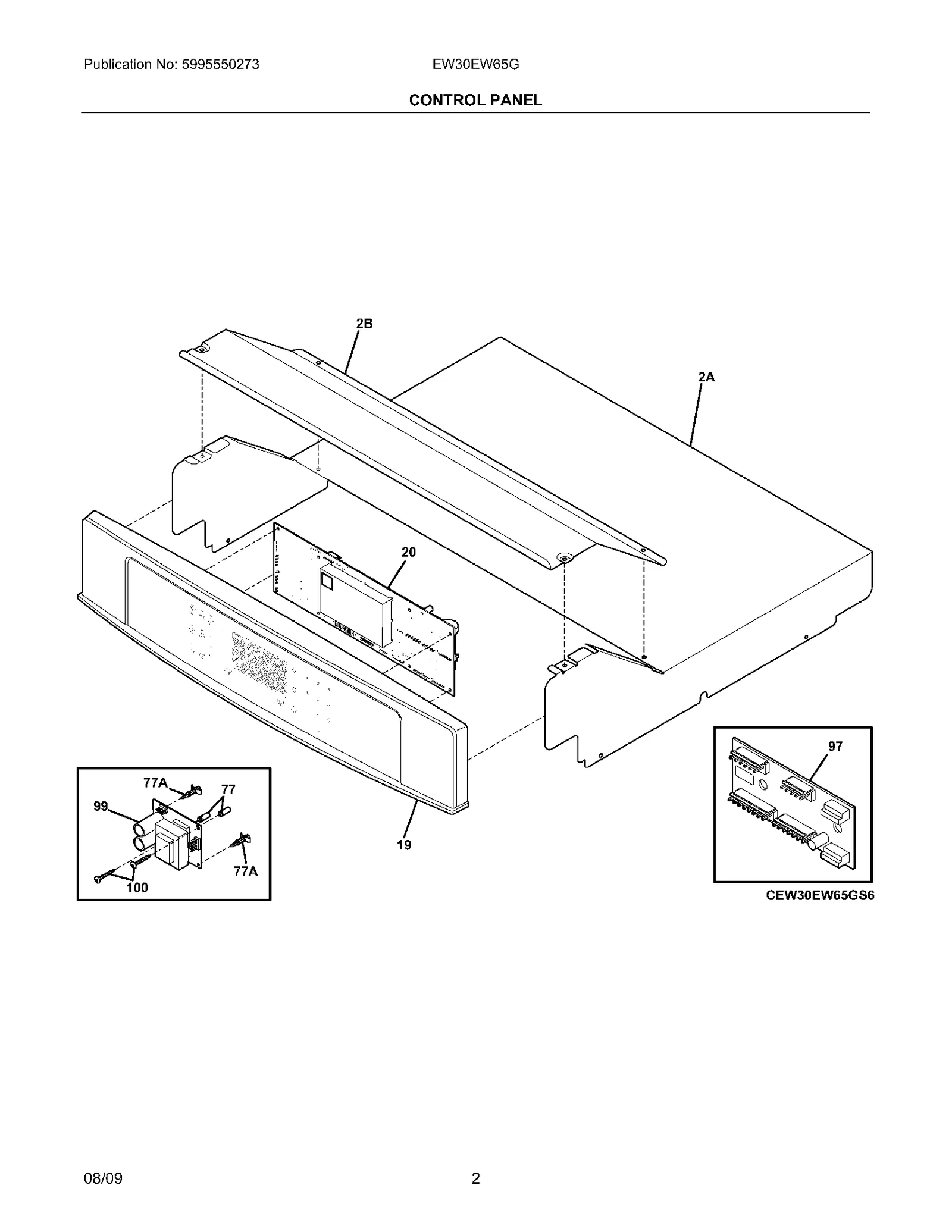

CONTROL PANEL
Parts in CONTROL PANEL
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2A |  | 318257300replaces 7318257300 Shield,oven top | - |
| 2B | – | 7318260100 Cover,box | - |
| 19 | – | 7318280429 Control Panel Assy.,glass ,black ,w/membrane | - |
| 20 |  | 316576621replaces 7316516536 Controller,electronic ,dual oven ,ES610W5 | $275.90 Parts Dr |
| 77 |  | 316247900replaces 7316247900 Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | 316114100replaces 7316114100 Spacer,(4) | $44.95 ApplianceParts Pro |
| 97 |  | 316574700replaces 7316574700 Segment,interface ,(PCBA) | - |
| 99 |  | 316535200replaces 7316535200 Board,power supply ,8V ,(2) | $213.54 Parts Dr |
| 100 |  | 5303297477replaces 75304400427 Screw,6-20 x 1/2 ,(2) | $5.62 RepairClinic |
| NI |  | 131892100replaces 7316524400 Screw,control mtg ,6-32 x .25 ,(5) | $7.49 ApplianceParts Pro |
| NI |  | 5304401490replaces 75304401490 Screw,6-18 x 1 ,(2) | $4.78 RepairClinic |
| NI | | 318402380replaces 7318402380 Harness,wiring ,communication ,6 connectors | - |
| NI |  | 318532178replaces 7318532113 Harness,wiring ,communication ,13 connectors | $373.70 ApplianceParts Pro |
| NI |  | 134178901replaces 75303211311 Screw,8 x 0.500 | $8.60 Part Advantage |
| NI | | 5303297477replaces 75303297477 Screw,6-20 x 1 1/4 | $5.62 RepairClinic |
