Model
Electrolux EW30EW65GS5
Wall Oven, Electric, Double, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EW30EW65GS5Wall Oven, Electric, Double, 30 Inch
4 diagrams127 parts
Parts Sections (4)
Diagram

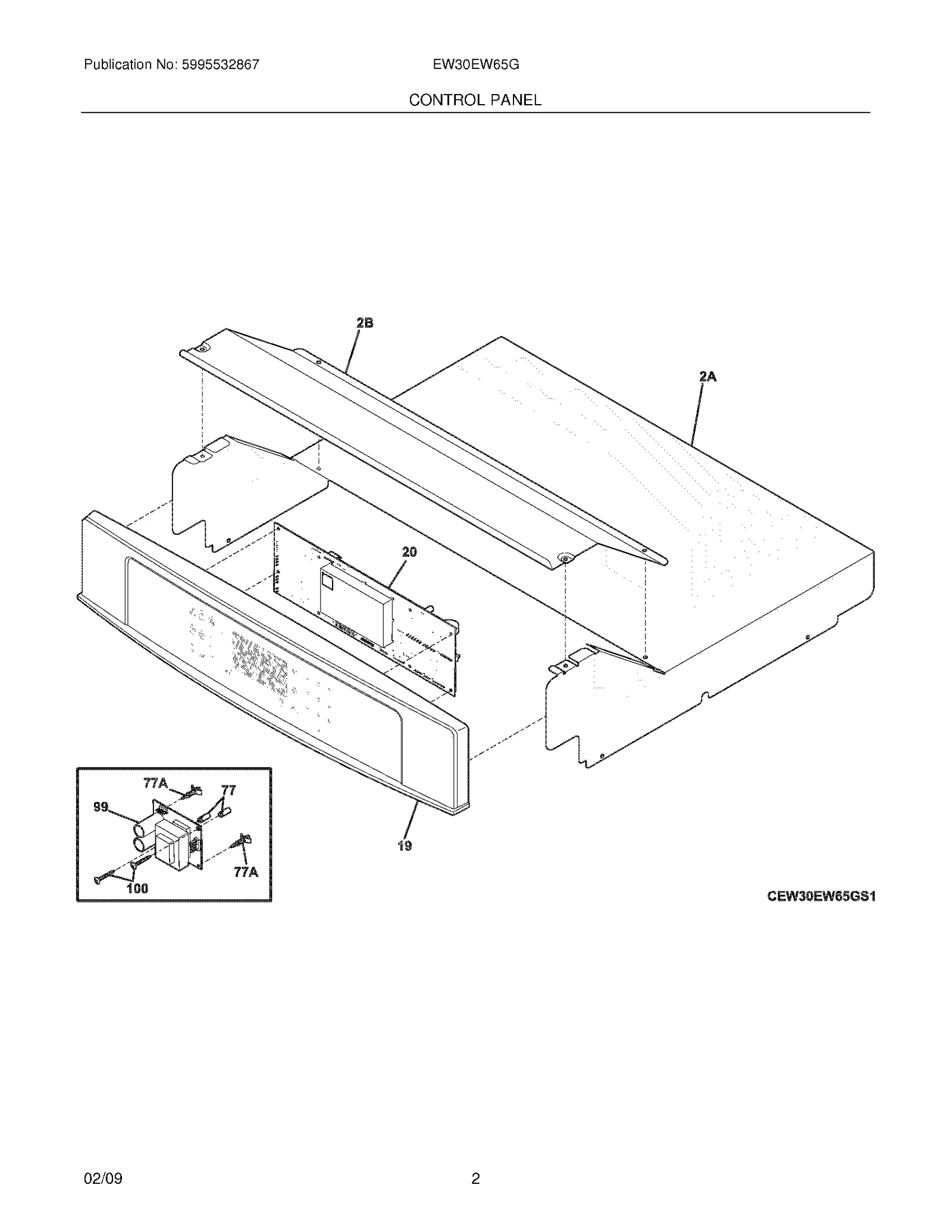

CONTROL PANEL
Parts in CONTROL PANEL
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2A |  | 318257300replaces 7318257300 Shield,oven top | - |
| 2B | – | 7318260100 Cover,box | - |
| 19 |  | Control Panel Assy.,glass ,stainless ,w/membrane | Discontinued |
| 20 |  | 316576621replaces 7316516536 Controller,electronic ,dual oven ,ES610W5 | $275.90 Parts Dr |
| 77 |  | 316247900replaces 7316247900 Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | 316114100replaces 7316114100 Spacer,(4) | $44.95 ApplianceParts Pro |
| 99 |  | 316535200replaces 7316535200 Board,power supply ,8V ,(2) | $213.54 Parts Dr |
| 100 |  | 5303297477replaces 75304400427 Screw,6-20 x 1/2 ,(2) | $5.62 RepairClinic |
| NI |  | 131892100replaces 7316524400 Screw,control mtg ,6-32 x .25 ,(5) | $7.49 ApplianceParts Pro |
| NI |  | 134178901replaces 75303211311 Screw,8 x 0.500 | $8.60 Part Advantage |
