Model
Electrolux EW30EW65GS7
Wall Oven, Electric, Double, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EW30EW65GS7Wall Oven, Electric, Double, 30 Inch
4 diagrams127 parts
Parts Sections (4)
Diagram

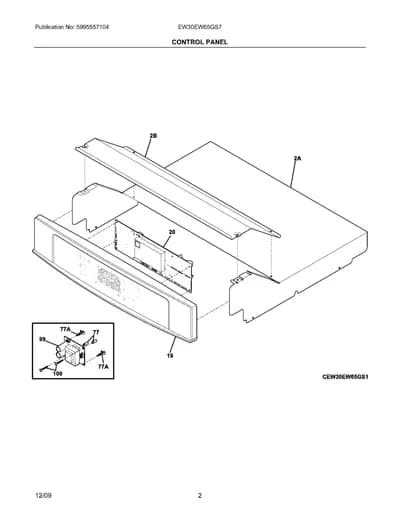

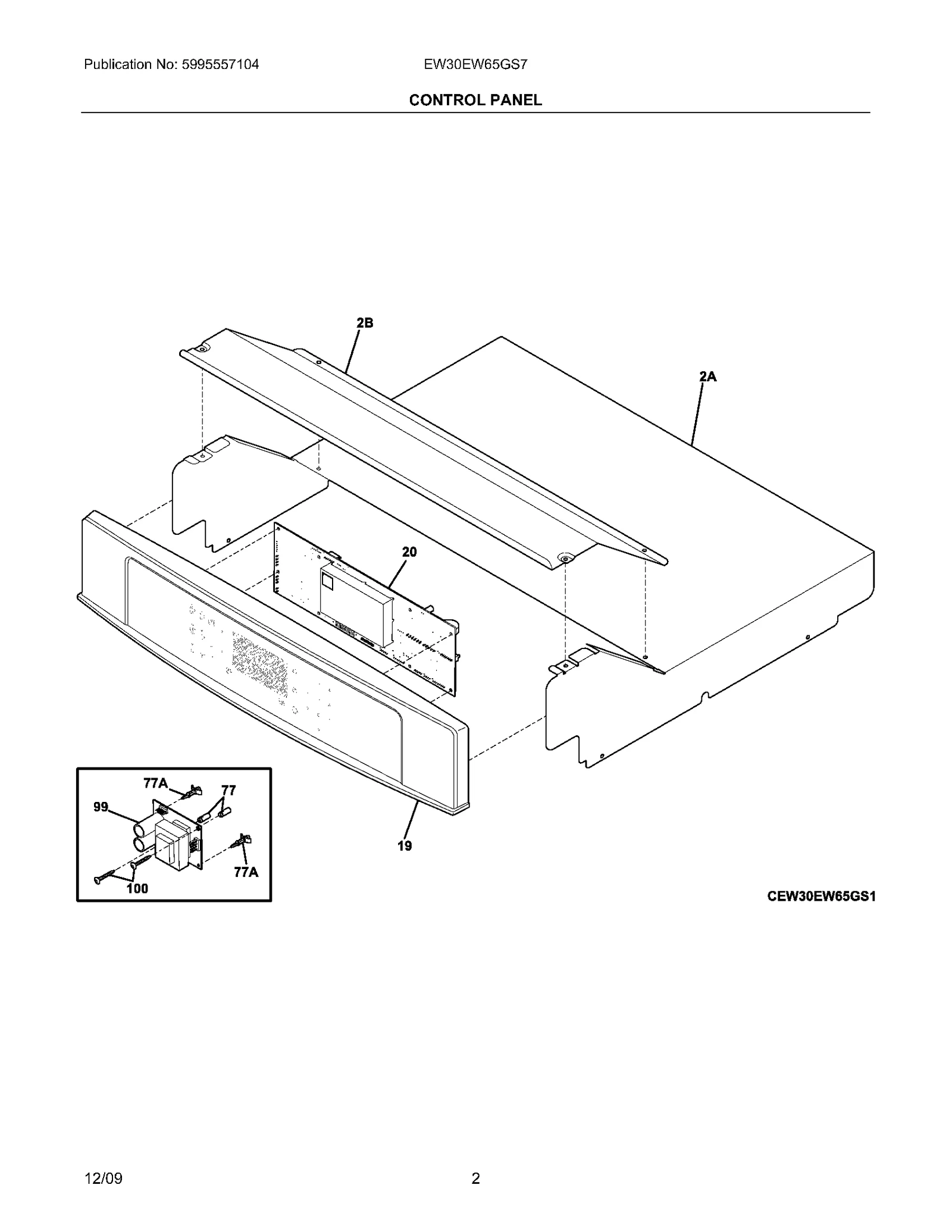

CONTROL PANEL
Parts in CONTROL PANEL
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2A |  | Shield,oven top | - |
| 2B |  | Cover,box | - |
| 19 | | 318280430NLA Control Panel Assy.,glass ,stainless ,w/membrane | Discontinued |
| 20 |  | Clock/Timer,electronic ,ES630 | $275.90 Parts Dr |
| 77 |  | Spacer,power board | $32.95 ApplianceParts Pro |
| 77A |  | Spacer | $44.95 ApplianceParts Pro |
| 99 |  | BOARD, POWER SUPPLY, 8V, (2) | $213.54 Parts Dr |
| 100 |  | 5303297477replaces 5304400427 SCREW, 6-20 X 1/2, (8) | $5.62 RepairClinic |
| NI |  | SCREW, CONTROL MTG, 6-32 X .25, (5) | - |
| NI |  | 318532178replaces 318532113 Harness,wiring ,communication ,13 connectors | $373.70 ApplianceParts Pro |
| NI |  | SCREW, 8 X 1/2 (NOT ILLUSTRATED) | $22.95 ApplianceParts Pro |
