Model
Electrolux EW30GF65GSJ
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EW30GF65GSJRange/Oven, Gas, Freestanding, 30 Inch
4 diagrams184 parts

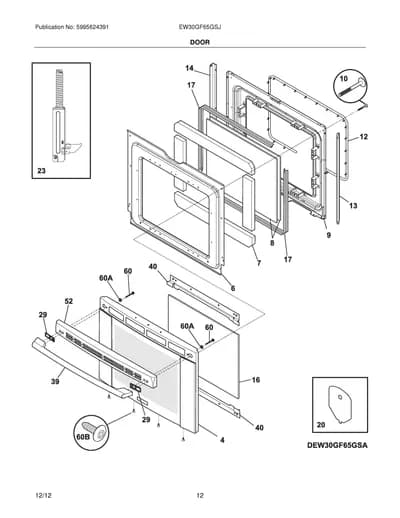

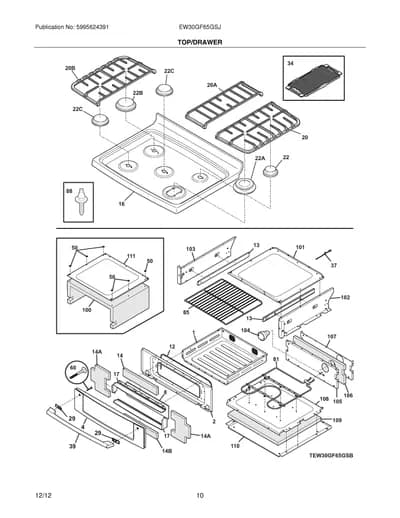

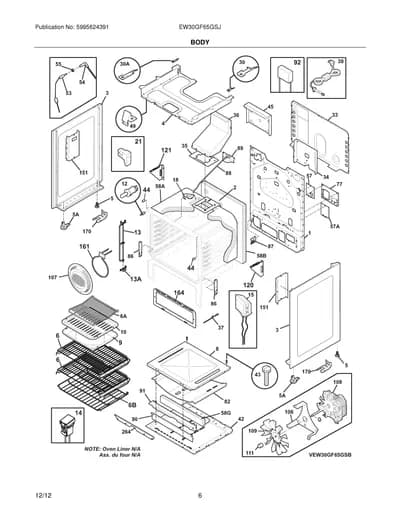

Parts Sections (4)
Diagram

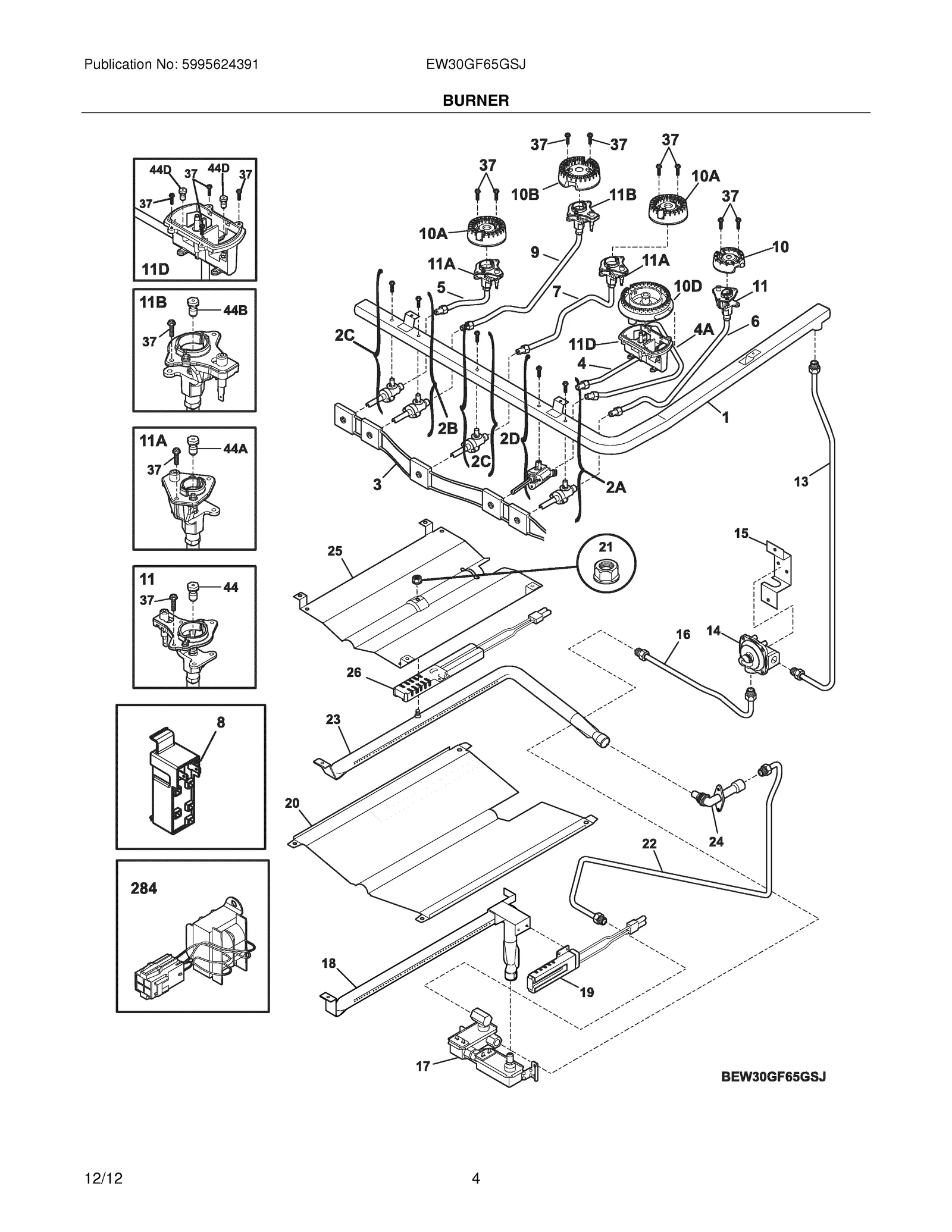

BURNER
Parts in BURNER
51 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | MANIFOLD | - |
| 2A |  | VALVE, 5K TOP BURNER, W/MTG SCREW | $45.93 Parts Dr |
| 2B |  | VALVE, TOP BURNER, WHITE STEM, W/MTG SCREW | $51.91 Part Advantage |
| 2C |  | VALVE, 9.5K BURNER, W/MTG SCREW | $49.91 Parts Dr |
| 2D | | VALVE, TOP BURNER, 18K | - |
| 3 | | 316580622NLA Harness-ignitor | Discontinued |
| 4 | | TUBE, BURNER, RIGHT FRONT | - |
| 4A | | TUBE, BURNER, RIGHT FRONT | - |
| 5 | | TUBE, BURNER, RF & LF, (2) | - |
| 6 | | TUBE, BURNER, RR | - |
| 7 | | TUBE, BURNER, CENTER | - |
| 8 |  | 5304508269replaces 316262400 MODULE, SPARK | $56.39 Part Advantage |
| 9 | | TUBE, BURNER, LEFT REAR | - |
| 10 |  | Burner,sealed ,5K | $32.81 Part Advantage |
| 10A |  | Burner,sealed ,9.5K | $30.33 Part Advantage |
| 10B |  | Burner,sealed ,14K | $51.53 Parts Dr |
| 10D |  | 316525401NLA BURNER, SEALED, DUAL, 18K | Discontinued |
| 11 |  | IGNITOR/ORIFICE ASSY., TOP BURNER, 5K, W/HOLDER | $6.46 Part Advantage |
| 11A |  | IGNITOR/ORIFICE ASSY., TOP BURNER, 9.5K, W/HOLDER | $6.44 Part Advantage |
| 11B |  | Ignitor/orifice assy.,top burner ,front | $9.72 Parts Dr |
| 11D | | 316525100NLA IGNITOR/ORIFICE ASSY., TOP BURNER, 18K, W/HOLDER | Discontinued |
| 13 | | 316545700NLA TUBE, 3/8, ALUMINUM, RGLTR TO MANF, WITH FITTINGS | Discontinued |
| 14 |  | 5304521339replaces 316416700 REGULATOR, PRESSURE | $56.37 Part Advantage |
| 15 |  | Bracket,regulator | $27.34 RepairClinic |
| 16 |  | 5304507348replaces 316431000 TUBE-VALVE TO RGLTR, 3/8 | $29.99 Parts Dr |
| 17 |  | VALVE, SAFETY | $203.66 Part Advantage |
| 18 |  | Burner,oven | $70.53 Parts Dr |
| 19 |  | 5304506545replaces 316489404 IGNITOR, BROIL BURNER | $65.45 Part Advantage |
| 20 |  | 5304519024replaces 316401401 BAFFLE, OVEN BURNER | $43.46 Part Advantage |
| 21 | | 154079601replaces 5303013272 Nut,hex head sems | - |
| 22 |  | 5304507768replaces 316537100 Tube-valve to mixer | $34.65 ApplianceParts Pro |
| 23 |  | BURNER, BROILER | $62.51 ApplianceParts Pro |
| 24 |  | 5304516894replaces 316409700 ELBOW, MIXER | $52.61 Parts Dr |
| 25 | | BAFFLE, BROIL BURNER | $150.35 RepairClinic |
| 26 |  | IGNITOR, BAKE BURNER | $72.30 Part Advantage |
| 37 |  | Screw,burner ,head mtg ,(8) | $8.19 Part Advantage |
| 44 |  | Orifice,burner ,5K | $13.10 Part Advantage |
| 44A |  | Orifice,burner ,9.5K | $12.36 Part Advantage |
| 44B |  | Orifice,burner ,14K | $14.01 Parts Dr |
| 44D | | 316523508NLA ORIFICE, TOP BURNER, 18K | Discontinued |
| 284 |  | TRANSFORMER | $135.95 ApplianceParts Pro |
| NI | – | 316434900 SHIELD, VALVE, BRIDGE BURNER | - |
| NI |  | Screw,valve mtg. ,1/4 - 20 | $10.30 Parts Dr |
| NI |  | Screw,hex ,8-18 x 3/8 ,nick ,(3) ,regulator brkt | $6.49 ApplianceParts Pro |
| NI | | Bracket-support | - |
| NI |  | Screw,10-16 x .486 | $7.79 Part Advantage |
| NI |  | Screw,8-18 X 11/16 ,black ,(3) | $9.95 ApplianceParts Pro |
| NI |  | Cover,broil Ignitor | - |
| NI | | HARNESS, IGNITOR | - |
| NI |  | 316001017replaces 316001003 Screw,ground wire | $2.77 Parts Dr |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
