Model
Electrolux EW30IC60IS1
Cooktop, Induction, 30 Inch
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
EW30IC60IS1Cooktop, Induction, 30 Inch
2 diagrams43 parts
Parts Sections (2)
Diagram

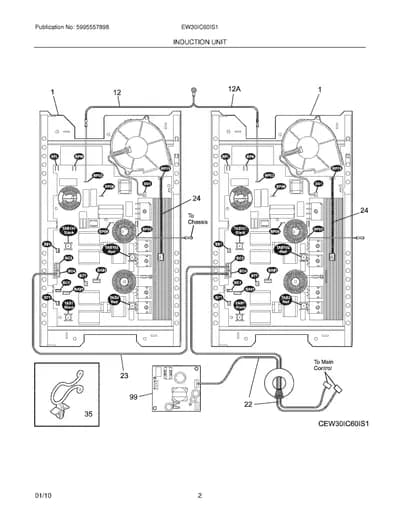

INDUCTION UNIT
Parts in INDUCTION UNIT
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 318329631NLA Housing Assembly,induction ,genrator ,(2),w/electronics | Discontinued |
| 12 | | Ground wire,19`` | - |
| 12A | – | 318402390 Ground wire,11`` | - |
| 22 | – | 318402388 Harness,wiring ,main ,w/magnetic core | - |
| 23 | | Harness,wiring ,generator ,(2) | - |
| 24 | – | 318413300 Cut-out Assembly,thermal ,(3) | - |
| 35 |  | CLIP, WIRE RETAINER | - |
| 99 |  | 318416300replaces 316576900 Board,power supply | $170.65 Parts Dr |
| NI | – | 5304475957 Support,power board ,(2) | - |
| NI | – | 5304475958 Standoff,hex ,power board ,(2) | - |
| NI | | SCREW, MOUINTING, 6-32 X 3/8, (18) | - |
| NI | – | 318394494 Box & wires assy | - |
| NI | – | 318402372 Harness,wiring ,main control ,to front zones | - |
| NI | | HARNESS, WIRING, MAIN CONTROL, TO REAR ZONE | - |
| NI | | HARNESS, WIRING, LOOP BACK, REAR ZONE | - |
| NI |  | 5304464772replaces 5303308449 Fastener,wire tie | $8.95 ApplianceParts Pro |
| NI |  | SCREW,GROUND,10-32 X 0.375,NI | - |
| NI |  | Screw,8-32 x 5/16 | - |
