Frigidaire FFTR1814TBG
Refrigerator, Top Mount
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelFrigidaire
FFTR1814TBGRefrigerator, Top Mount
5 diagrams103 parts

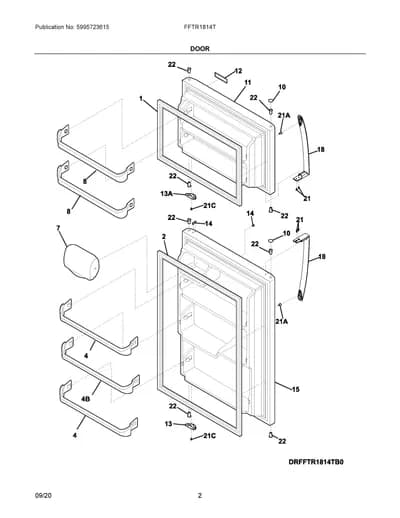

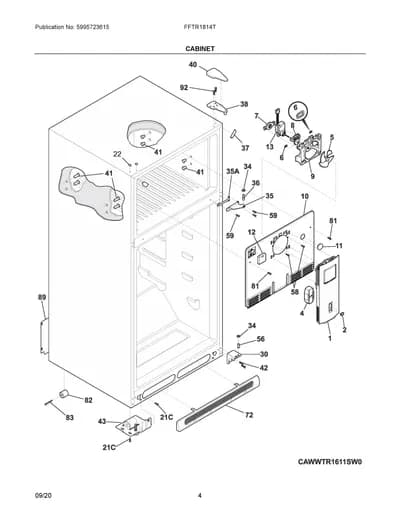

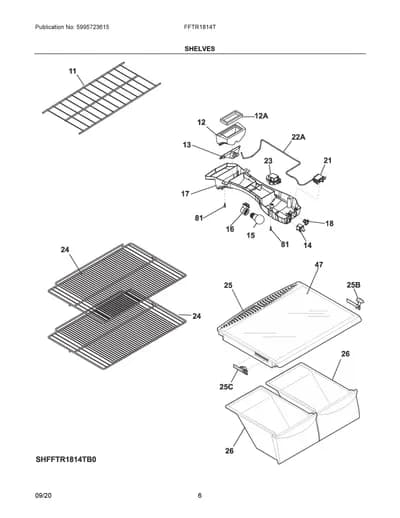

Parts Sections (5)

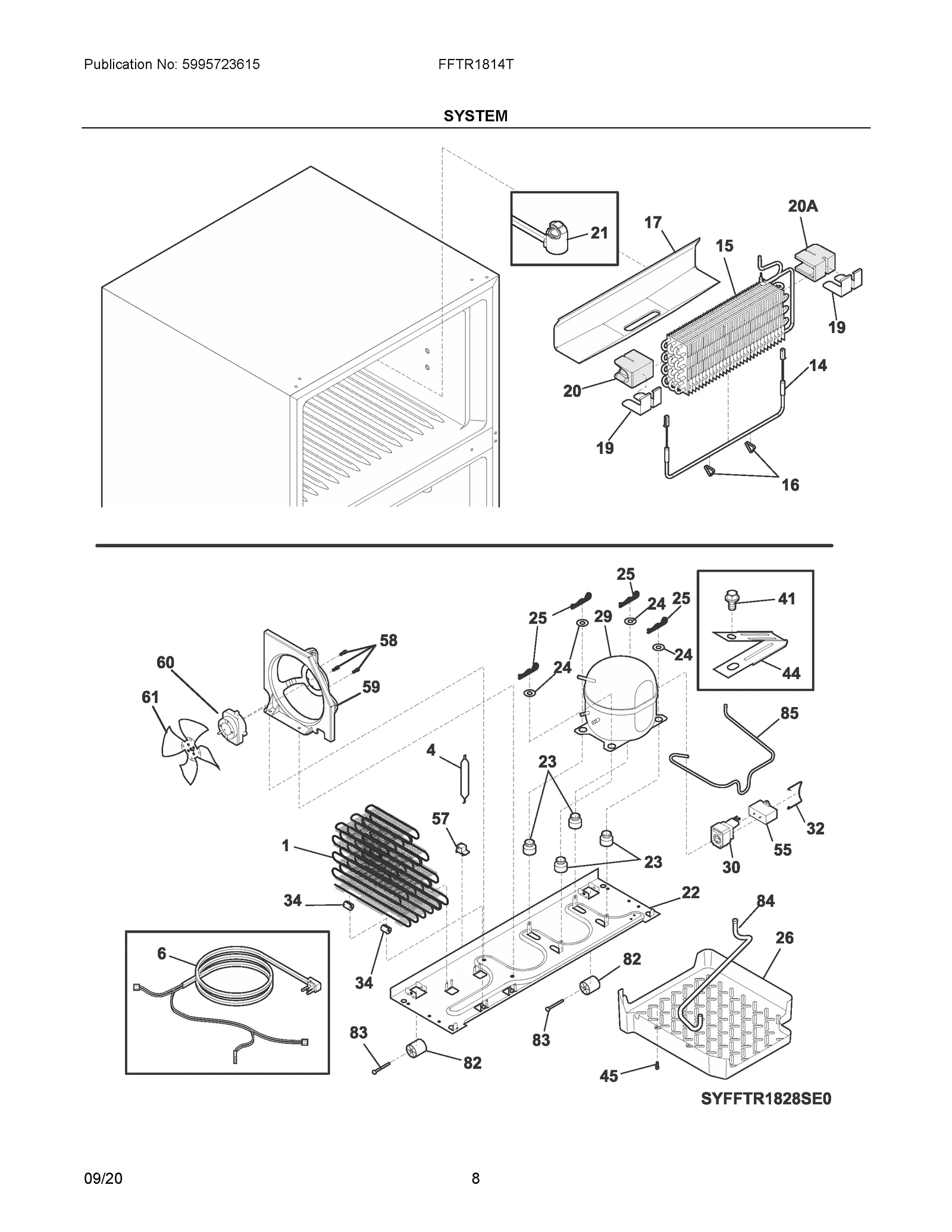

Diagram
SYSTEM
Parts in SYSTEM
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Condenser,high efficiency | $74.66 Part Advantage |
| 4 |  | 5303305677replaces 242190205 Dryer-filter,w/process tube | $13.17 Parts Dr |
| 6 |  | 5304521786replaces 242019701 Harness-wiring,machine compt | $76.00 Parts Dr |

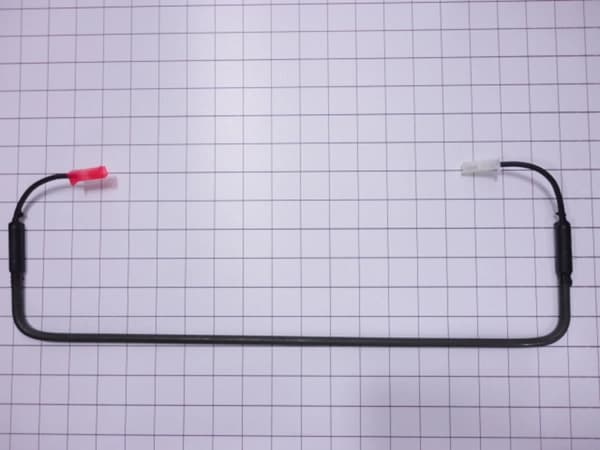

| 14 |  | Heater-defrost | $11.25 Part Advantage |

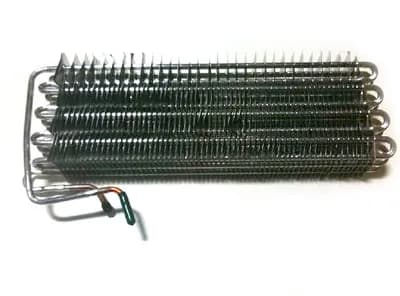

| 15 |  | Evaporator Kit | $196.73 Part Advantage |
| 16 |  | Strap-evap/heater,aluminum ,(2) | $35.21 Parts Dr |
| 17 |  | Trough-drain | $40.54 Parts Dr |
| 19 |  | Shield,heat ,evap block | $36.49 Part Advantage |
| 20 |  | 5304527429replaces 242238401 Block,evaporator ,RH | $19.31 ApplianceParts Pro |
| 20A |  | 5304527430replaces 242238301 Block,evaporator ,LH | - |
| 21 |  | Thermostat Kit,defrost ,w/connector | $17.83 Part Advantage |

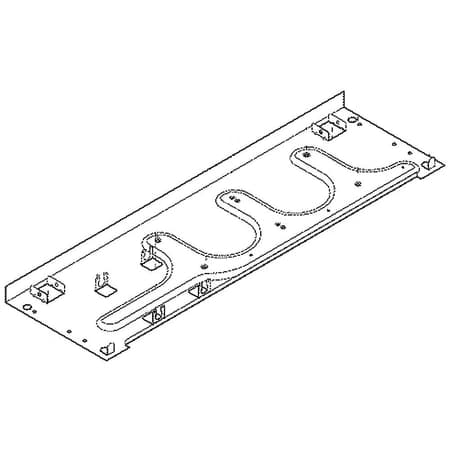

| 22 |  | Base-compressor,w/rollers | $101.95 ApplianceParts Pro |
| 23 |  | Grommet-compr mtg,(4) | $24.59 Part Advantage |
| 24 |  | Washer-compr mtg | $9.50 Parts Dr |
| 25 |  | Clip-compressor mtg | $1.61 Part Advantage |
| 26 |  | Pan-defrost | $29.61 Part Advantage |
| 29 |  | Compressor,w/o electricals | $261.08 Parts Dr |
| 30 |  | Starter | $41.00 Part Advantage |
| 32 |  | Clamp,elec cont mtg ,compressor | $10.02 ApplianceParts Pro |
| 34 |  | Grommet,rubber ,black ,cond tube/wire | $15.28 ApplianceParts Pro |
| 41 |  | Screw,hex washer head ,8-18 x 5/16 | $6.41 ApplianceParts Pro |
| 44 |  | Clamp,wiring harness ,galv steel ,strn relief | $7.30 ApplianceParts Pro |
| 45 |  | 241500305replaces 241500304 Screw,hex washer head ,8-18AB x 0.625 | $1.66 Part Advantage |
| 55 |  | Capacitor-run | $19.05 Part Advantage |
| 57 |  | Clip-wiring harness | - |
| 58 |  | Screw,8-18 X .500 | $1.22 Part Advantage |
| 59 |  | Shroud,Condenser Fan | $19.20 Parts Dr |
| 60 |  | Motor-condenser fan | $85.85 Part Advantage |
| 61 |  | Blade,condenser fan | $10.33 Part Advantage |
| 82 |  | Roller,compressor base ,rear | $14.99 Parts Dr |
| 83 |  | Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin | $22.41 Parts Dr |
| 84 |  | Tube-drain,rubber ,lower | $37.73 Part Advantage |
| 85 | | 241871501replaces 5304502967 Tube-connector,suction | - |
| NI |  | Screw,hex wshr hd ,8-15A x 0.500 | - |
| NI |  | Clamp,tube/wiring ,nylon ,black/natural | $14.76 ApplianceParts Pro |
| NI | | 5303918222NLA Hot Tube Repair Kit,service | Discontinued |
| NI |  | Heat Exchanger Kit,suction line | $260.47 Part Advantage |
| NIA |  | Screw,#8 truss hd ,10-32CA x 0.500 | $10.30 Parts Dr |
| NIA |  | Tape,foam seal ,shroud | $21.46 Parts Dr |
| NIB |  | Screw-fan shroud,(2) | - |
