Model
Frigidaire FGHT2055VF1
Refrigerator
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelFrigidaire
FGHT2055VF1Refrigerator
4 diagrams81 parts
Parts Sections (4)
Diagram
CABINET
Parts in CABINET
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Hinge Assembly,bottom ,gray ,RH ,w/pin-closer | $27.97 Parts Dr |
| 2 |  | Hinge Assembly,bottom ,LH | $16.86 Parts Dr |
| 8 |  | Screw,hex wsh hd quad ,M5 x 16 | $1.69 Part Advantage |
| 9 |  | Cover,hinge ,gray ,lower ,non-hinged | $4.51 Parts Dr |
| 10 |  | Cover,hinge side ,gray ,lower | $3.35 RepairClinic |
| 11 |  | Shroud,evaporator fan | $14.06 Parts Dr |
| 12 |  | Light Assembly,LED ,1X ,w/lens,PCB,harn | $32.82 ApplianceParts Pro |
| 13 |  | Grommet,evaporator fan ,rear | $12.63 Parts Dr |
| 14 |  | Washer,"slinger" ,nylon ,evap fan shaft | $13.13 Parts Dr |
| 15 |  | Fan Blade,evaporator | $9.42 Part Advantage |
| 16 |  | Motor,evaporator fan ,blower | $89.82 Part Advantage |
| 18 |  | Cover,I/M Connector | $10.36 Parts Dr |
| 19 |  | Cover Assembly,evaporator ,w/frz slide | $71.69 Part Advantage |
| 20 |  | 5304527992replaces 242326001 Switch,reed | $46.33 Part Advantage |
| 21 |  | Cover,housing ,reed switch | $4.68 ApplianceParts Pro |
| 22 |  | Label,blank ,gray ,QR code | - |
| 23 | | Clip,wiring harness | $3.66 Part Advantage |
| 34 | | Pin,hinge ,upper door | $7.91 ApplianceParts Pro |
| 35 | | Hinge,upper ,gray ,freezer door ,reversable | $10.69 ApplianceParts Pro |
| 39 |  | Screw,pan hd qdrx tri ,M5 x 12 | $7.48 ApplianceParts Pro |
| 40 |  | Hinge,door ,gray ,center | $14.16 Parts Dr |
| 41 |  | Pin,center hinge ,door | $3.73 RepairClinic |
| 42 | | 5304522279replaces 5304524222 Screw,flat head qdrx ,M5 x 16 ,gray | $1.69 Part Advantage |
| 44 | | Cover,reed switch ,front | - |

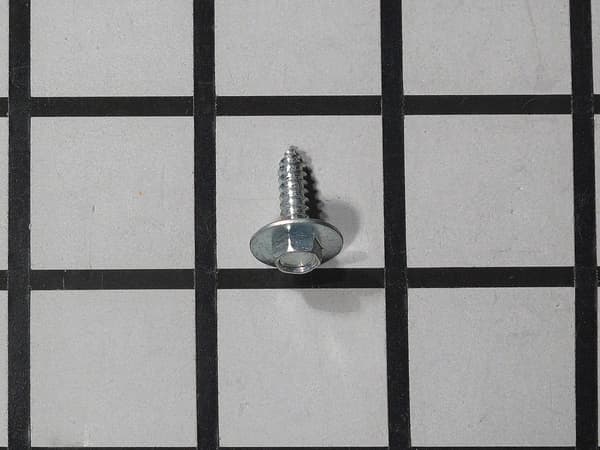

| 45 |  | Screw,hex hd ,#8-18 x 5/8 | $1.66 Part Advantage |
| 81 | | Screw,hx wash hd ,M4.2 x 12 | $3.56 ApplianceParts Pro |
| 89 | | Access Cover,rear | $21.31 ApplianceParts Pro |
| NI |  | Spacer,center hinge ,clear | $3.68 Part Advantage |
| NI | – | 30534600 Clip,plastic ,w/adhesive | - |
| NI | | Screw,type AB ,#10-16 | - |
