UPPER CABINET/DRUM HEATER
Parts in UPPER CABINET/DRUM HEATER
62 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

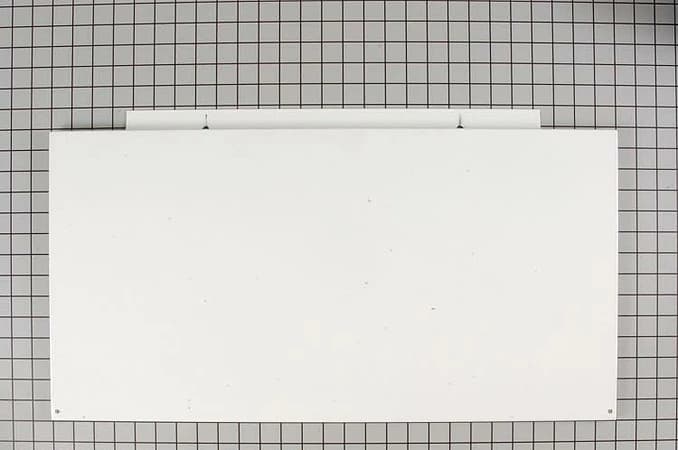

| 1 |  | Panel,left side ,white | $155.24 PartSelect |
| 2 |  | Fastener,push-in | $5.32 Part Advantage |
| 3 |  | Panel,top | $155.94 Part Advantage |
| 4 |  | 5304500431replaces 5304523179 Panel,rear ,LC Dryer | $216.34 ApplianceParts Pro |
| 4A |  | 137389701replaces 137389700 Cover,opening ,terminal block | $36.51 Parts Dr |
| 5 |  | 5303281153replaces 5303281019 Ball,grounding | $12.40 Part Advantage |
| 6 | | 5303281153replaces 5303281020 Clip,ball ,steel ,flat nut | $12.40 Part Advantage |
| 7 |  | Duct Assembly,air ,w/foam seal | - |
| 7A |  | Seal,air duct | $11.73 Parts Dr |
| 8 |  | Limiter,thermal, heater | $11.66 Part Advantage |
| 9 |  | 5304488480replaces 5303309490 Panel,motor access | $59.48 ApplianceParts Pro |
| 10 |  | Shield,air duct | $31.86 Parts Dr |
| 11 |  | 131168200replaces 131477000 Screw,10-16AB x 0.375 | $8.19 Part Advantage |
| 12 |  | Bearing,drum support | $2.55 Part Advantage |
| 13 |  | Bracket,bearing support | $7.36 Part Advantage |
| 14 |  | Screw,bracket mtg. ,10-16B x 1.375 ,cr/sq drive | $9.83 ApplianceParts Pro |
| 15 |  | Heater Assembly,and housing ,w/thermostats | $129.68 Part Advantage |
| 16 |  | Plug,light hole | $8.20 Part Advantage |
| 17 |  | Baffle,heater shield | $74.95 Parts Dr |
| 18 |  | Screw,thread cutting ,#10-32 x .75 | $6.95 ApplianceParts Pro |
| 19 | | Screw,hex wshr hd unc ,12-24 x .75 ,(2) | $14.95 ApplianceParts Pro |
| 20 |  | Glide,flat ,dryer | $10.18 Part Advantage |
| 21 |  | Drum Assembly,dryer ,w/glides-vanes | $244.20 Part Advantage |
| 22 |  | Panel,front weld ,white ,w/felt seals | $140.38 Parts Dr |
| 22A |  | Pin,panel locator | $20.51 Part Advantage |
| 23 |  | 5303937183replaces 134134700 Seal,felt ,lower | $12.29 Part Advantage |
| 24 |  | 5303937182replaces 134036400 Seal,felt ,upper | $15.12 Part Advantage |
| 25 |  | Door Catch,white ,upper | $36.07 Part Advantage |
| 26 |  | Switch,door ,white | $34.45 Part Advantage |
| 27 |  | Lint Filter,trap ,white | $18.86 Part Advantage |
| 29 |  | Screw,quadrex head ,10-14 x 1.00 ,vane mtg.,specia | $10.53 Parts Dr |
| 30 |  | Vane,dryer ,white | $18.68 ApplianceParts Pro |
| 31 |  | Screw,10-16AB x 0.625 | $10.54 Parts Dr |
| 32 | | 5303281153replaces 137088600 Shaft,drum support ,ballhitch | $12.40 Part Advantage |
| 33 |  | Thermostat,safety | $30.35 Part Advantage |
| 34 |  | Cover Plate,bearing | - |
| 35 |  | Screw,6-20B x 0.230 | $7.49 ApplianceParts Pro |
| 36 |  | Thermal Limiter | $4.07 Part Advantage |
| 38 |  | Panel,right side ,white | $128.95 ApplianceParts Pro |
| 39 |  | Panel,access ,white | $127.29 ApplianceParts Pro |
| 41 |  | Hinge,dryer door | $13.10 Part Advantage |
| 42 |  | Screw,flat head ,8-18AB x 0.44 ,quad drive | $8.60 Part Advantage |
| 43 |  | Screw,combination ,8-18 x .711 | $4.50 Part Advantage |
| 44 |  | Gasket,door | $27.56 Parts Dr |
| 46 |  | Handle,door ,white | $36.91 Part Advantage |
| 47 |  | Panel,inner door ,white | $259.95 ApplianceParts Pro |
| 48 |  | Panel,outer door ,white | $106.82 ApplianceParts Pro |
| 49 |  | 5303207102replaces 5303211430 Strike,door | $12.18 Parts Dr |
| 50 |  | Insulator,heat shield ,outer door | $40.55 Parts Dr |
| 51 |  | Insulator,heater housing | $34.65 Parts Dr |
| 52 |  | Terminal Block,heater housing | $41.84 Parts Dr |
| 53 | | Cover,main board ,external | - |
| 54 |  | Screw,#8 pan head ,10-10B x 0.500 ,cr/sq drive | $8.20 Part Advantage |
| 55 |  | Screw,hex head ,10-24 x 0.500 ,type F | - |

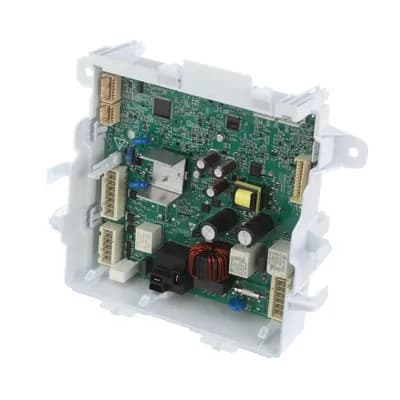

| 56 |  | Board,main control ,EWD18 ,w/housing | $172.40 Part Advantage |
| 57 | | Clip,fir tree style | - |
| 62 |  | 131302800replaces 131258400 Screw,10-16AB x 0.500 | $7.83 Part Advantage |
| 80 | | Screw,pan head ,8-18B x 0.31 | $8.19 Part Advantage |
| NI |  | Harness,wiring ,door switch | $29.69 Parts Dr |
| NI |  | Wiring Harness,washgroup ,lower | $89.71 Parts Dr |

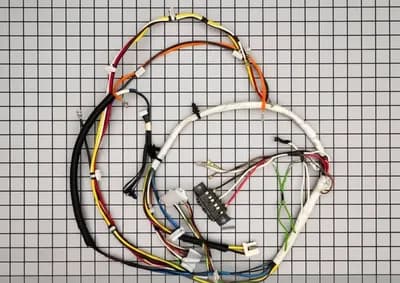

| NI |  | Wiring Harness,main ,dryer | $94.31 ApplianceParts Pro |
| NI |  | Wiring Harness,main ,washer | $61.88 Parts Dr |
